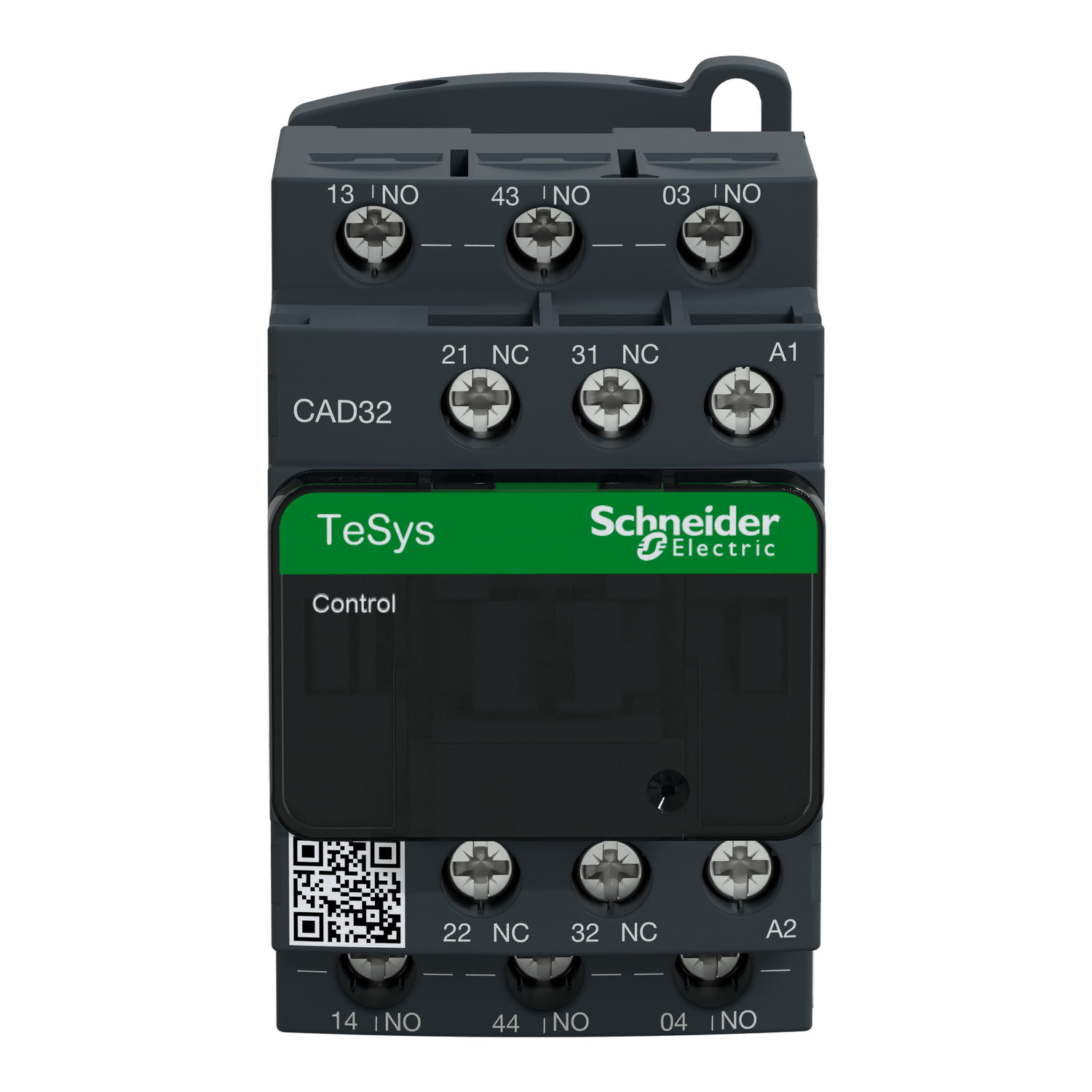

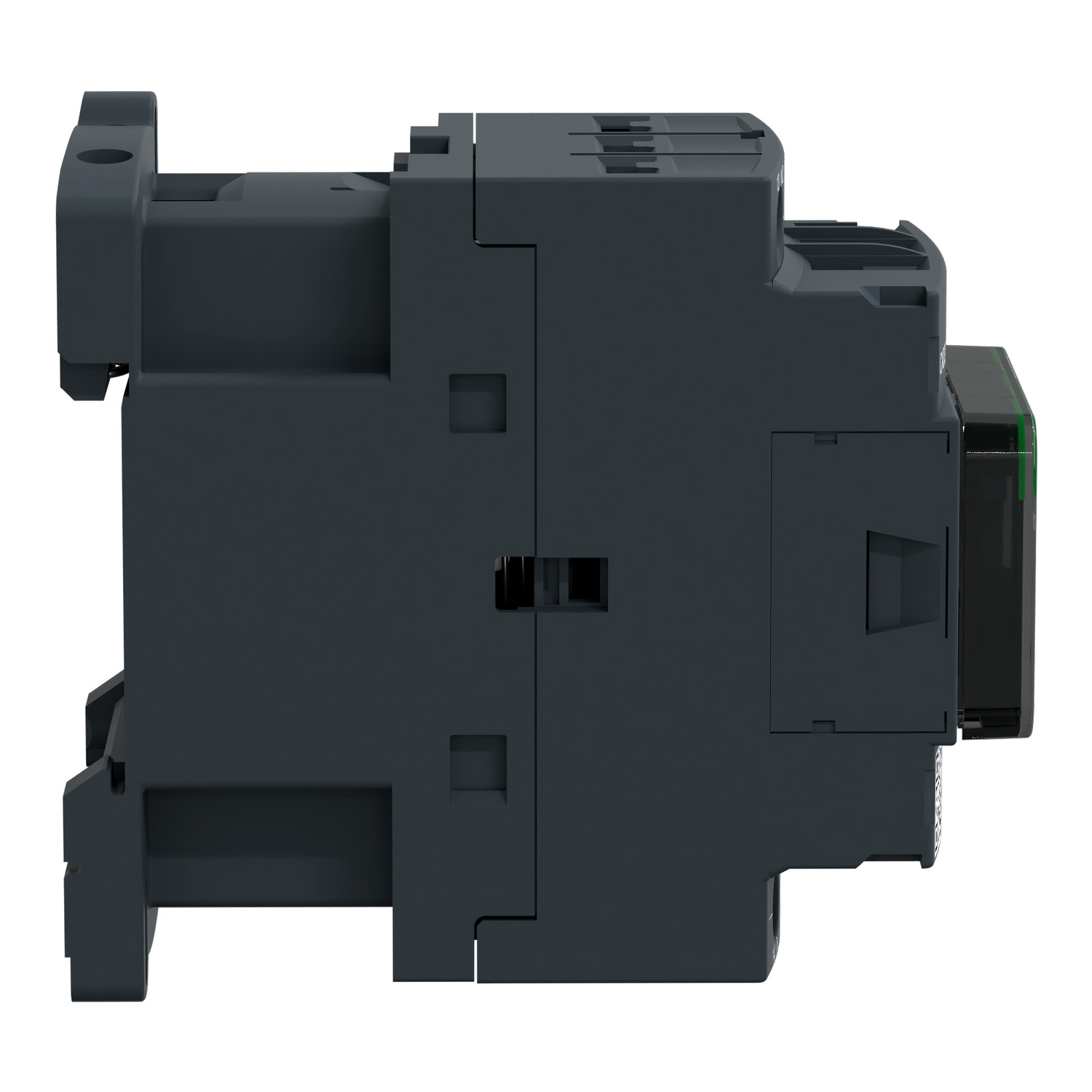

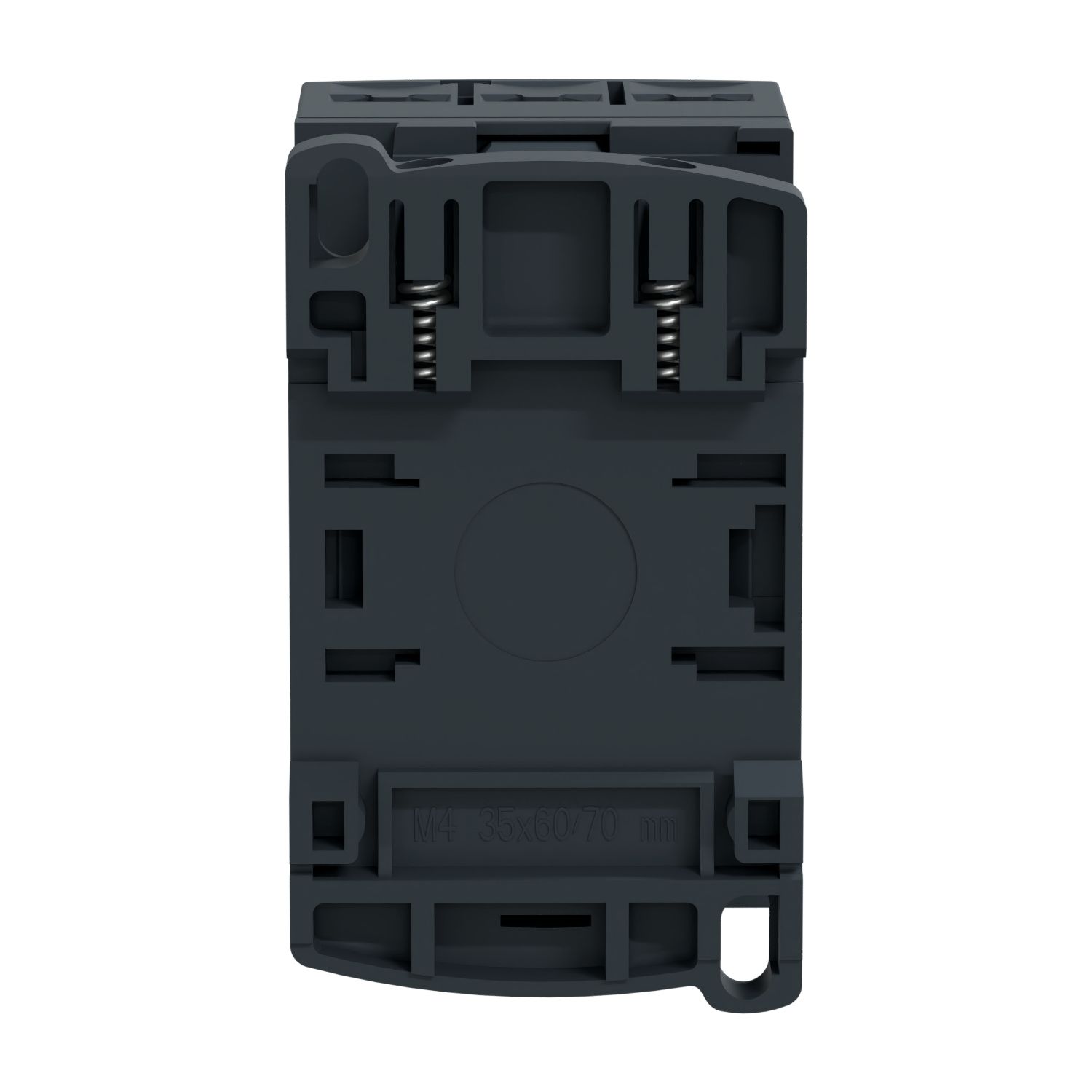

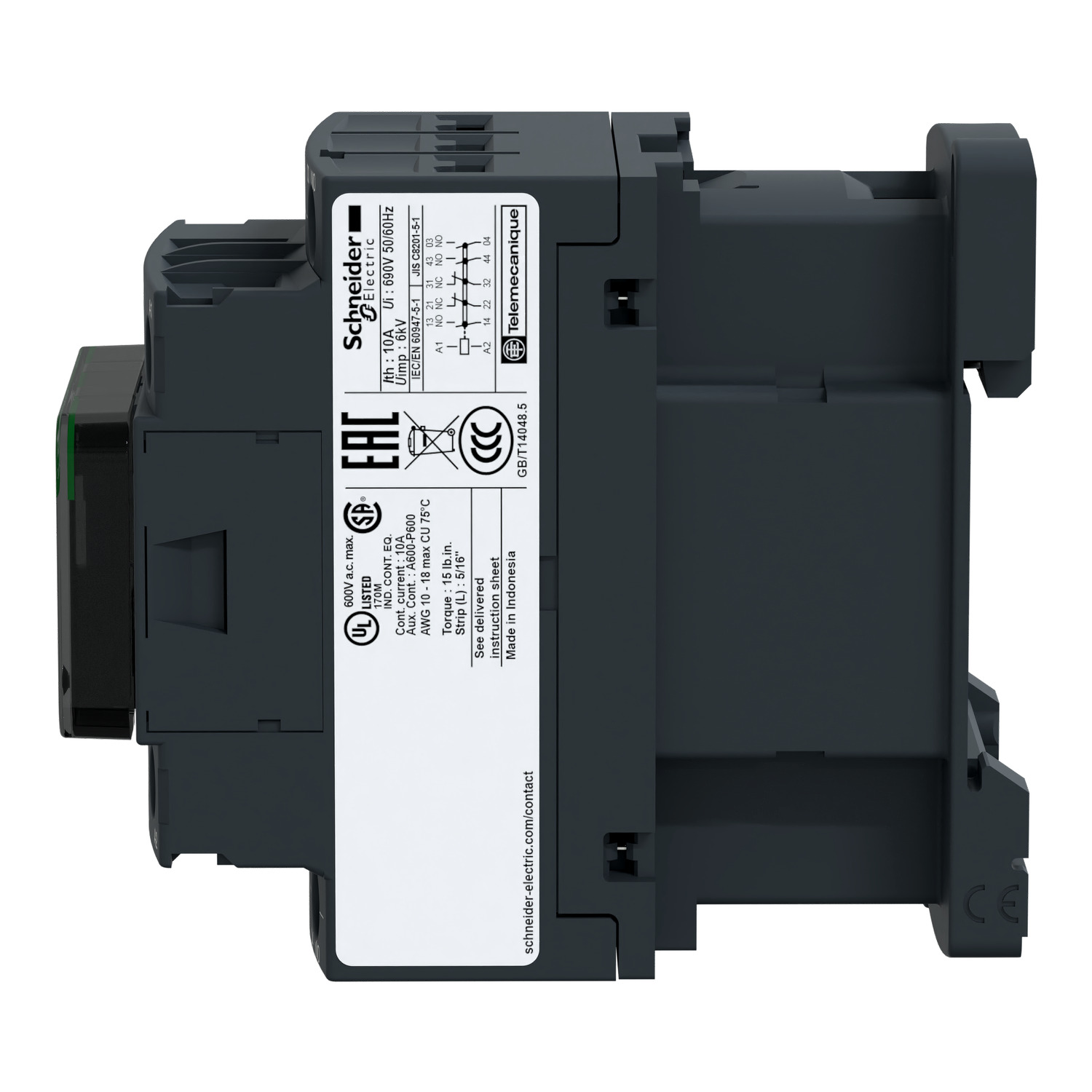

Picture of TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 110VAC 50/60Hz standard coil, screw clamp
Picture of TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 110VAC 50/60Hz standard coil, screw clamp
Picture of TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 110VAC 50/60Hz standard coil, screw clamp
Picture of TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 110VAC 50/60Hz standard coil, screw clamp
Picture of TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 110VAC 50/60Hz standard coil, screw clamp
Picture of TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 110VAC 50/60Hz standard coil, screw clamp
SKU:

CAD32F7

TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 110VAC 50/60Hz standard coil, screw clamp

$224.51
Available for Shipping : 24-Nov-2024
TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 110VAC 50/60Hz standard coil, screw clamp
  • TeSys Control Relays provide a cost-effective solution to a simple application
  • Same design as TeSys D, K and SK contactors
  • Different ways for connection. (such as screw clamp terminal, spring terminal, welded on PCB)
  • Compatible for all the voltages on the market
  • Multiple international certifications
  • Control relays for AC or DC control circuits (AC15, DC13)
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name CAD
Range TeSys Deca, TeSys
Range of product TeSys D control relay
Product name TeSys CAD
Product or component type control relay
Contactor application control circuit
Complementary
Compatibility code CAD
Connections - terminals screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end, screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
Associated fuse rating 10 A gG conforming to IEC 60947-5-1
Control circuit type AC at 50/60 Hz
Height 77 mm
[Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1, 600 V CSA certified, 600 V UL certified
Operating time 6...17 ms coil de-energisation and NC closing, 4...19 ms coil energisation and NC opening, 4...12 ms coil de-energisation and NO opening, 12...22 ms coil energisation and NO closing
Utilisation category DC-13, AC-14, AC-15
Inrush power in VA 70-70 VA 50 Hz (at 20 °C)
Net weight 0.58 kg
[Uc] control circuit voltage 110 V AC 50/60 Hz
Minimum switching current 5 mA
Non-overlap time 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
[Icw] rated short-time withstand current 140 A - 100 ms, 120 A - 500 ms, 100 A - 1 s
Mechanical durability 30 Mcycles
Tightening torque 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2
Minimum switching voltage 17 V
Irms rated making capacity 250 A DC conforming to IEC 60947-5-1, 140 A AC conforming to IEC 60947-5-1
Control circuit voltage limits 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current 10 A (at 60 °C)
Mechanical robustness vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27
Depth 84 mm
Width 45 mm
Hold-in power consumption in VA 8-8 VA 50 Hz (at 20 °C)
Maximum operating rate 180 cyc/mn
Pole contact composition 3 NO + 2 NC
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Insulation resistance > 10 MOhm
Mounting support plate, rail
[Ue] rated operational voltage <= 690 V AC 25...400 Hz
Environment
Ambient air temperature for storage -60-80 °C
Standards JIS C8201-5-1, CSA C22.2 No 60947-5-1, UL 60947-5-1, GB/T 14048.5, EN/IEC 60947-5-1
Ambient air temperature for operation 60-70 °C with derating, -40-60 °C
Operating altitude 0...3000 m
Product certifications UKCA, CE, EAC, CSA, UL, CCC, CB
IP degree of protection IP2X front face conforming to VDE 0106
Protective treatment TH conforming to IEC 60068
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 9.5 cm
Package 1 Length 11.4 cm
Package 1 Weight 353 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 7.575 kg
Unit Type of Package 3 3
Number of Units in Package 3 320
Package 3 Height 80 cm
Package 3 Width 80 cm
Package 3 Length 60 cm
Package 3 Weight 128.1 kg
