LAD8N02

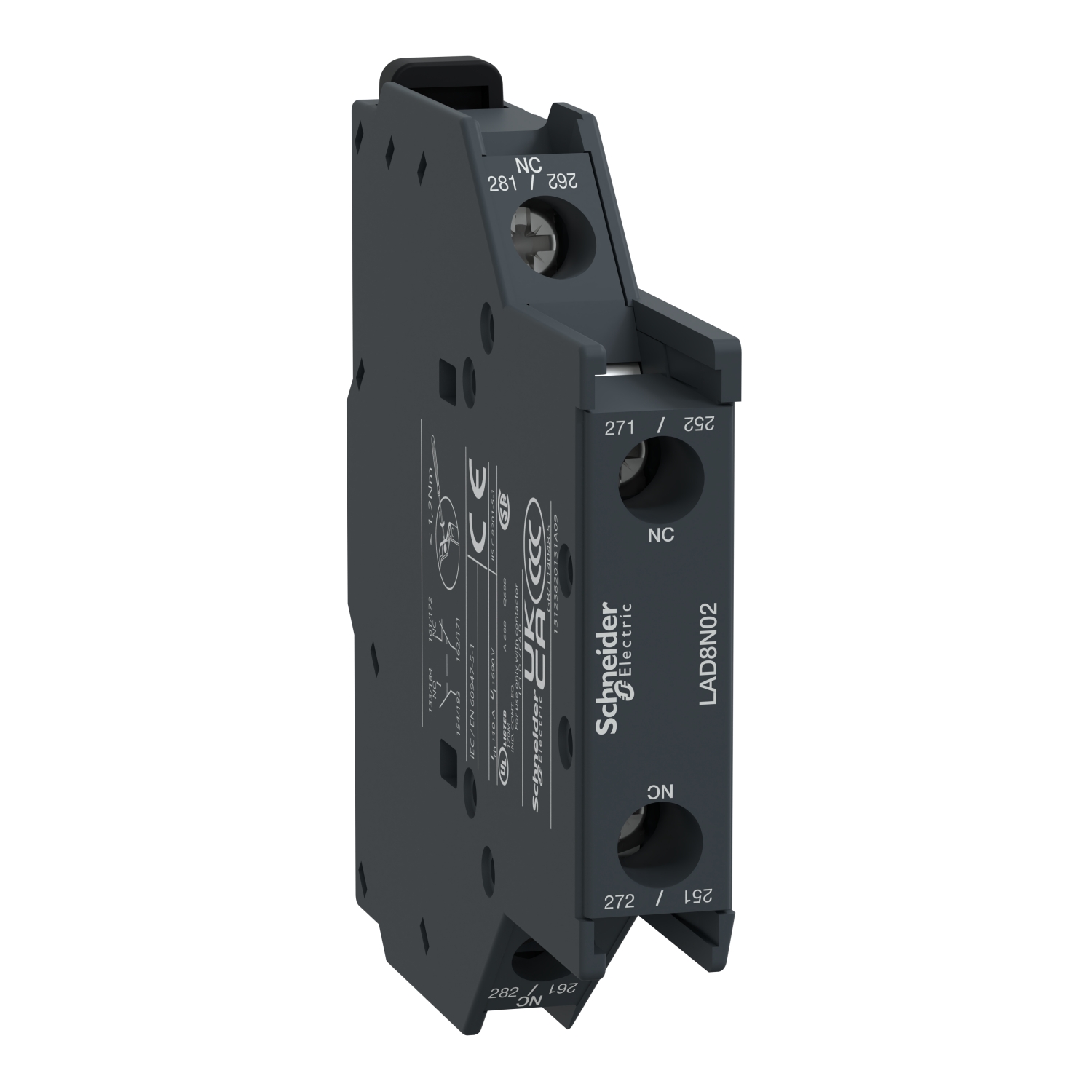

TeSys, Auxiliary contact block, TeSys Deca, 2NC, side mounting, screw clamp terminals

$67.81

Qty:

Available for Shipping : 24-Nov-2024

TeSys, Auxiliary contact block, TeSys Deca, 2NC, side mounting, screw clamp terminals

Meet the need for more control contact for TeSys Deca contactor and control relay

Easy choice for simple applications

Be the first to review this product

Manufacturer: Schneider Electric

Catalogue

Product environmental

Instruction sheet

Product Page Link

Product Data Sheet

TeSys Deca instantaneous auxiliary contact block, for LC.D contactors and CAD control relays with AC coils only. It provides 2NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by screw clamp terminals. Clip-on side mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Auxiliary contacts operation	instantaneous
Product compatibility	LC1D80...D95
Range	TeSys
[Ith] conventional free air thermal current	10 A (at 60 °C)
Range of product	TeSys Deca
[Ie] rated operational current	0.1 A at 600 V DC-13, 0.55 A at 125 V DC-13, 1.04 A at 690 V AC-15, 6 A at 120 V AC-15
[Ui] rated insulation voltage	600 V conforming to CSA, 600 V conforming to UL, 690 V conforming to IEC 60947-5-1
Pole contact composition	2 NC
Mounting location	side
Product name	TeSys Deca
Product or component type	auxiliary contact block
Range compatibility	TeSys F LC1F, TeSys Deca CAD AC coil, TeSys Deca LC1D115/150, TeSys Deca LC1D40A…80A AC Coil, TeSys Deca LC1D09…95 AC coil
[Ue] rated operational voltage	690 V AC 25...400 Hz
Standards	CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/IEC 60947-5-1
Product certifications	UKCA, EAC, CCC, CSA, UL, CB
Complementary
Compatibility code	LA1
Mechanical durability	30 Mcycles
Tightening torque	1.7 N.m - with screwdriver pozidriv No 2, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver flat Ø 6 mm
Minimum switching voltage	17 V
Connections - terminals	screw clamp terminals 2 cable(s) 1-4 mm²rigid without cable end, screw clamp terminals 1 cable(s) 1-4 mm²rigid without cable end, screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end
Irms rated making capacity	250 A DC conforming to IEC 60947-5-1, 140 A AC conforming to IEC 60947-5-1
Protection type	gG fuse 10 A
Height	76 mm
Shielding continuity terminal	without
Depth	76 mm
Width	12.5 mm
Insulation resistance	> 10 MOhm
Minimum switching current	5 mA
Permissible short-time rating	140 A 100 ms, 120 A 500 ms, 100 A 1 s
Non-overlap time	1.5 ms on energisation no overlap between NC and NO contact, 1.5 ms on de-energisation no overlap between NC and NO contact
Environment
Protective treatment	TH conforming to IEC 60068
Environmental characteristic	normal environment
Ambient air temperature for storage	-60-80 °C
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-5-60 °C
Operating altitude	3000 m
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.0 cm
Package 1 Width	3.0 cm
Package 1 Length	7.3 cm
Package 1 Weight	60.0 g
Unit Type of Package 2	2
Number of Units in Package 2	60
Package 2 Height	15.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	4.055 kg
Unit Type of Package 3	3
Number of Units in Package 3	960
Package 3 Height	75 cm
Package 3 Width	60 cm
Package 3 Length	80 cm
Package 3 Weight	79 kg
