LC1D09M7

TeSys D, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 220VAC 50/60Hz coil

$45.14
Product Selector

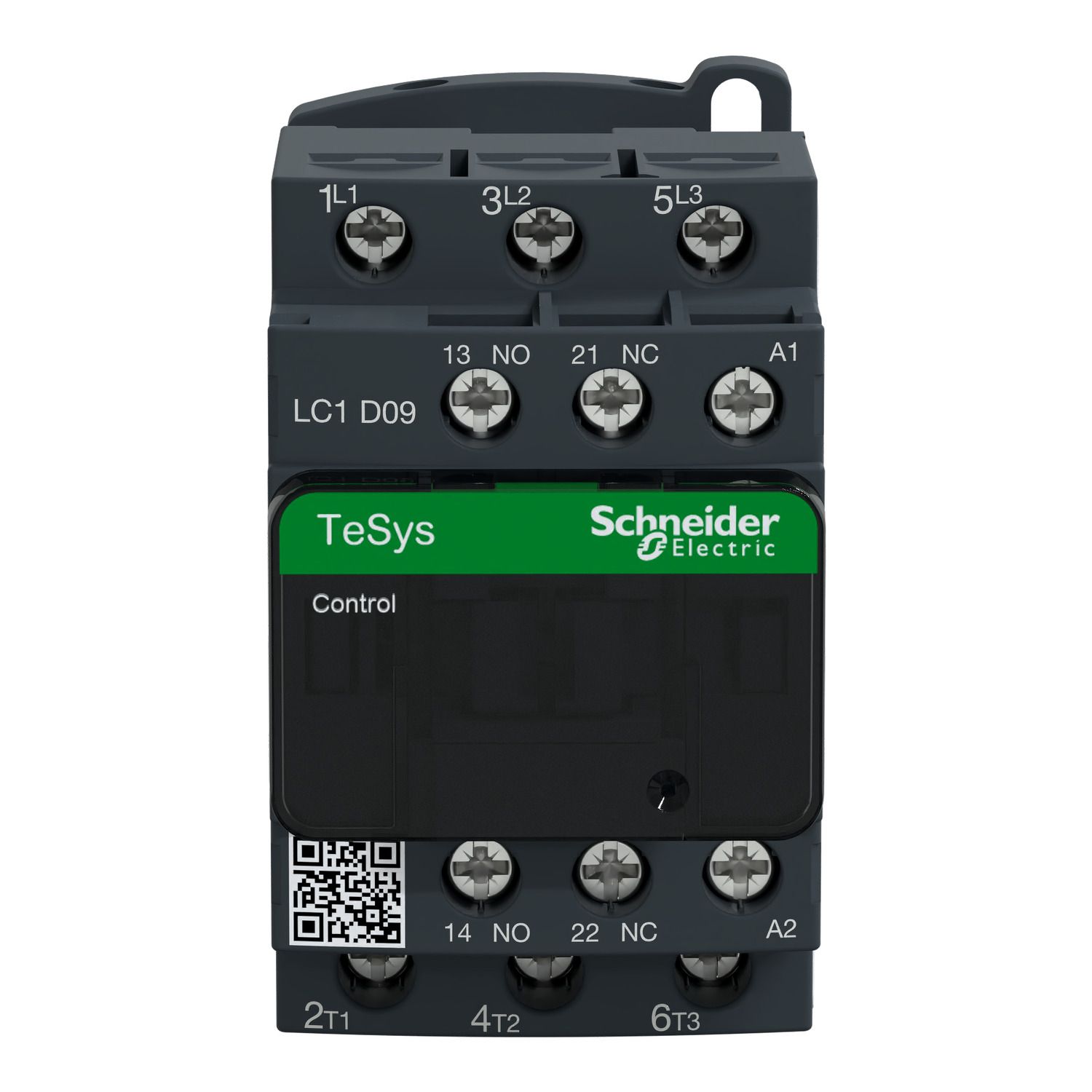

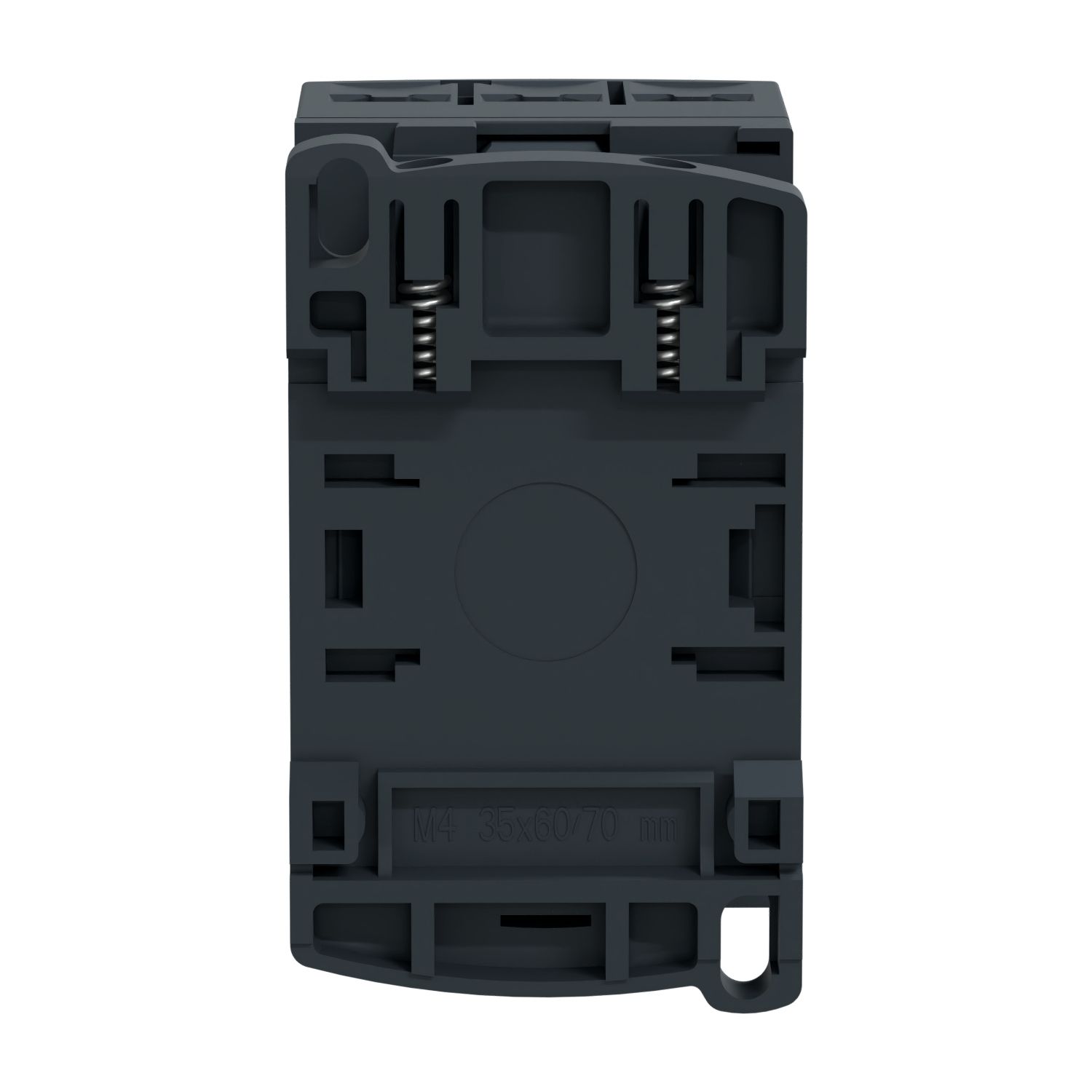

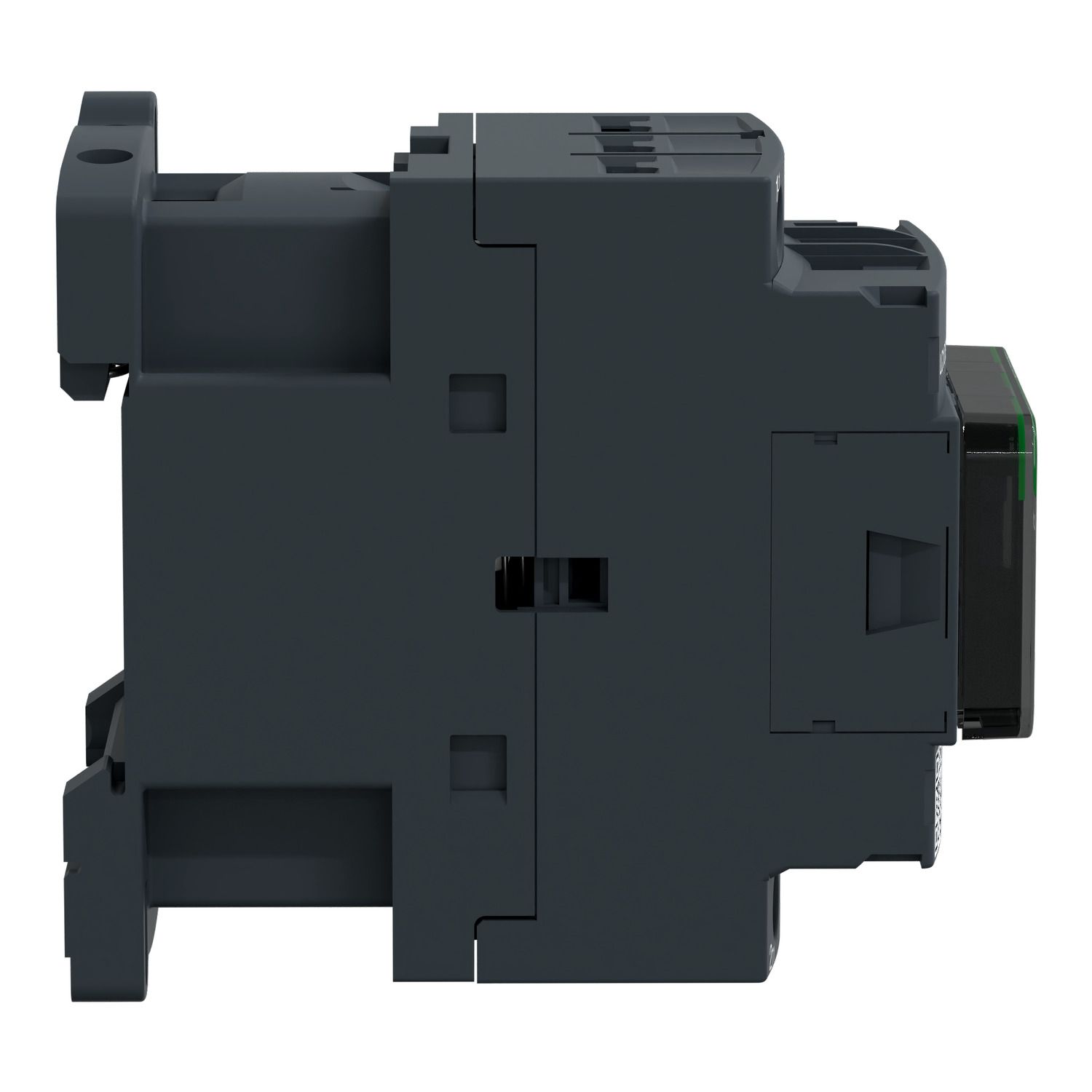

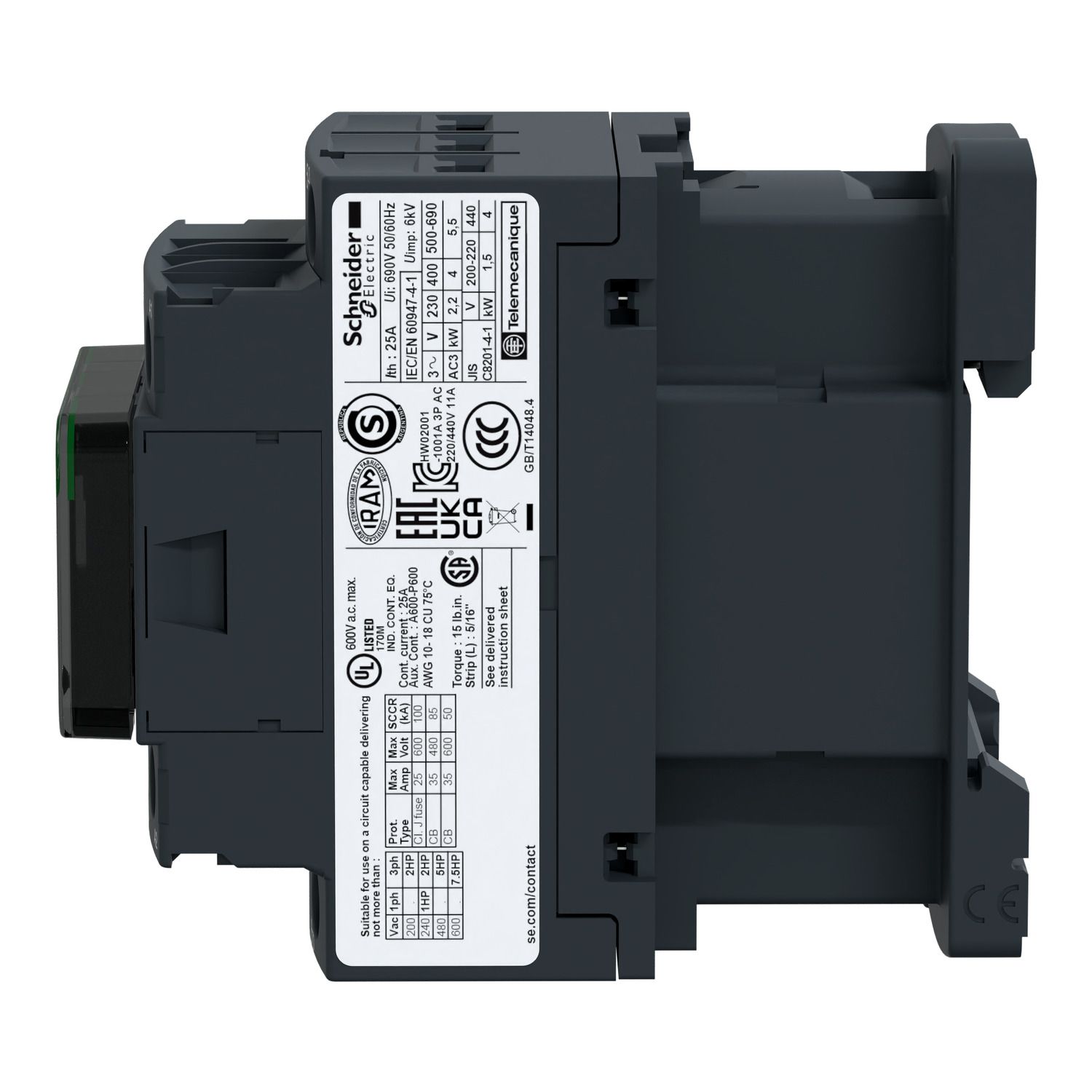

TeSys D, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 220VAC 50/60Hz coil
  • New modern look & feel of all machines
  • Designed to meet the requirements of industrial and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
  • Green Premium products and multiple international certificated
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Image of product
Image of product
End of life manual
Catalogue
Image of product
Image of product
Instruction sheet
CAD
Product environmental
Product Page Link
Product Data Sheet
TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
[Ie] rated operational current9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Utilisation categoryAC-3e, AC-1, AC-3, AC-4
[Uc] control circuit voltage220 V AC 50/60 Hz
Device short nameLC1D
Range of productTeSys Deca
Poles description3P
Product or component typecontactor
Contactor applicationresistive load, motor control
[Ue] rated operational voltagepower circuit: <= 300 V DC, power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility codeLC1D
Electrical durability2 Mcycles 9 A AC-3e at Ue <= 440 V, 2 Mcycles 9 A AC-3 at Ue <= 440 V, 0.6 Mcycles 25 A AC-1 at Ue <= 440 V
Signalling circuit frequency25...400 Hz
Associated fuse rating20 A gG at <= 690 V coordination type 2 for power circuit, 25 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Control circuit typeAC at 50/60 Hz standard
Protective coverwith
[Ui] rated insulation voltagesignalling circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified, power circuit: 690 V conforming to IEC 60947-4-1
Overvoltage categoryIII
Auxiliary contacts typetype mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Coil technologywithout built-in suppressor module
Inrush power in VA70-70 VA 50 Hz cos phi 0.75 (at 20 °C), 70-70 VA 60 Hz cos phi 0.75 (at 20 °C)
Auxiliary contact composition1 NO + 1 NC
Average impedance2.5 mOhm - Ith 25 A 50 Hz for power circuit
Power dissipation per pole0.2 W AC-3e, 0.2 W AC-3, 1.56 W AC-1
Minimum switching current5 mA for signalling circuit
Non-overlap time1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Heat dissipation2-3 W at 50/60 Hz
[Icw] rated short-time withstand current140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit, 61 A 40 °C - 1 min for power circuit, 30 A 40 °C - 10 min for power circuit, 210 A 40 °C - 1 s for power circuit, 105 A 40 °C - 10 s for power circuit
Mechanical durability15 Mcycles
Tightening torquepower circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Minimum switching voltage17 V for signalling circuit
Operating time4...19 ms opening, 12...22 ms closing
Irms rated making capacity250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity250 A at 440 V for power circuit conforming to IEC 60947
Pollution degree3
Safety reliability levelB10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits1...1.1 Uc (60-70 °C):operational AC 50/60 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current10 A (at 60 °C) for signalling circuit, 25 A (at 60 °C) for power circuit
Motor power hp0.33 hp at 115 V AC 50/60 Hz for 1 phase motors, 7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors, 5 hp at 460/480 V AC 50/60 Hz for 3 phases motors, 2 hp at 230/240 V AC 50/60 Hz for 3 phases motors, 2 hp at 200/208 V AC 50/60 Hz for 3 phases motors, 1 hp at 230/240 V AC 50/60 Hz for 1 phase motors
Motor power kW5.5 kW at 660...690 V AC 50/60 Hz (AC-3e), 5.5 kW at 500 V AC 50/60 Hz (AC-3e), 4 kW at 415...440 V AC 50/60 Hz (AC-3e), 4 kW at 380...400 V AC 50/60 Hz (AC-3e), 2.2 kW at 220...230 V AC 50/60 Hz (AC-3e), 2.2 kW at 400 V AC 50/60 Hz (AC-4), 5.5 kW at 660...690 V AC 50/60 Hz (AC-3), 5.5 kW at 500 V AC 50/60 Hz (AC-3), 4 kW at 415...440 V AC 50/60 Hz (AC-3), 4 kW at 380...400 V AC 50/60 Hz (AC-3), 2.2 kW at 220...230 V AC 50/60 Hz (AC-3)
Hold-in power consumption in VA7-7 VA 50 Hz cos phi 0.3 (at 20 °C), 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate3600 cyc/h 60 °C
Connections - terminalscontrol circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Pole contact composition3 NO
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947
Insulation resistance> 10 MOhm for signalling circuit
Contact compatibilityM2
Mounting supportrail, plate
Environment
Fire resistance850 °C conforming to IEC 60695-2-1
Mechanical robustnessshocks contactor closed (15 Gn for 11 ms) , shocks contactor open (10 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
Climatic withstandconforming to IEC 60947-1 Annex Q category D exposure to damp heat,  conforming to IACS E10 exposure to damp heat
StandardsIEC 60335-1, UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height77 mm
Permissible ambient air temperature around the device60-70 °C with derating, -40-60 °C
Operating altitude0...3000 m
Net weight0.32 kg
Product certificationsUKCA, CCC, RINA, CSA, DNV, GL, GOST, UL, LROS (Lloyds register of shipping), BV
IP degree of protectionIP20 front face conforming to IEC 60529
Protective treatmentTH conforming to IEC 60068-2-30
Depth86 mm
Width45 mm
Flame retardanceV1 conforming to UL 94
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.000 cm
Package 1 Width9.200 cm
Package 1 Length11.500 cm
Package 1 Weight350.000 g
Unit Type of Package 22
Number of Units in Package 220
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight7.282 kg
Unit Type of Package 33
Number of Units in Package 3320
Package 3 Height75.000 cm
Package 3 Width60.000 cm
Package 3 Length80.000 cm
Package 3 Weight123.500 kg
