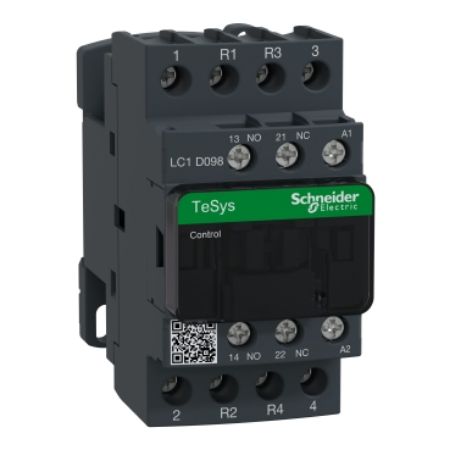

Picture of Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 20A, 48VAC 50/60Hz coil, screw clamp terminal

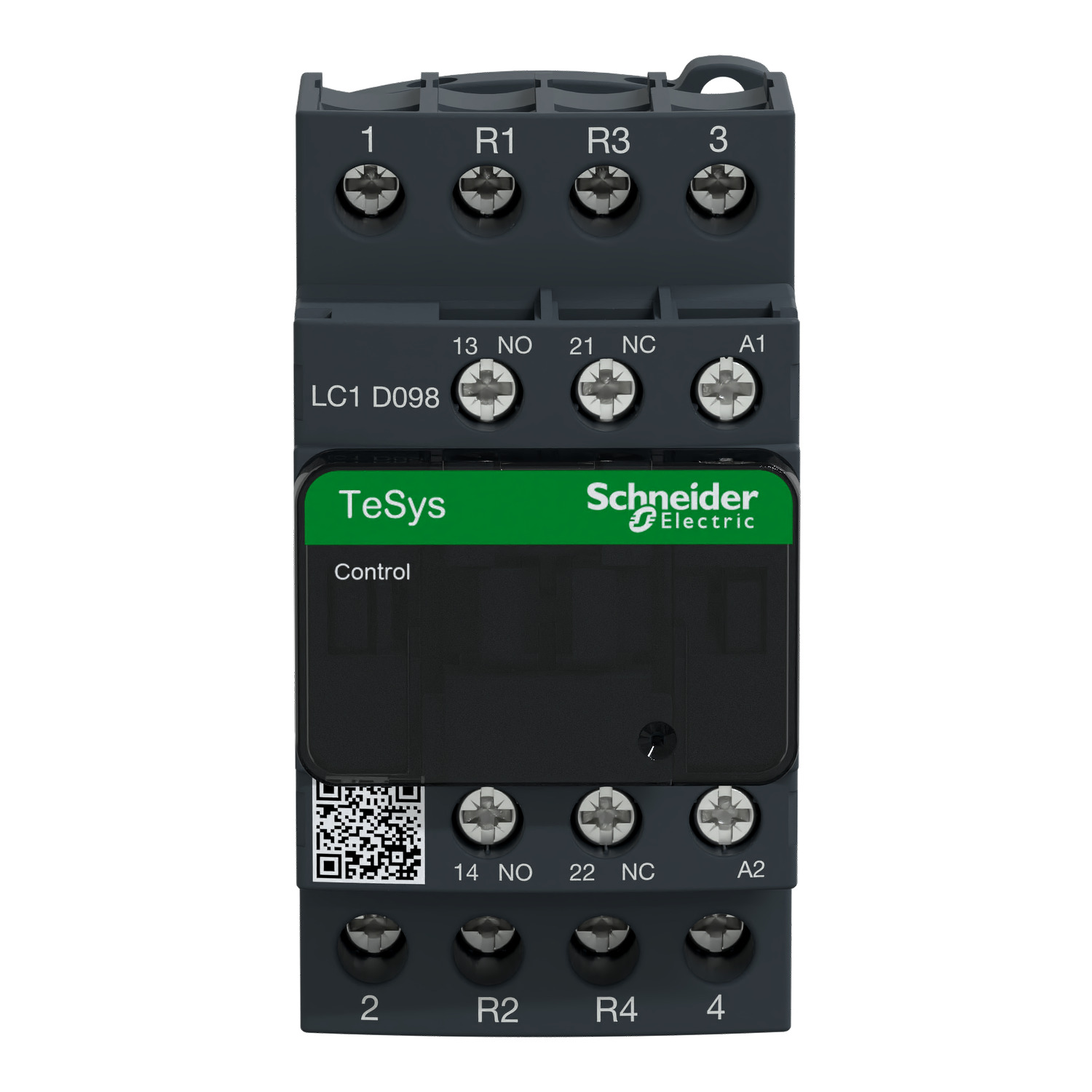

Picture of Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 20A, 48VAC 50/60Hz coil, screw clamp terminal

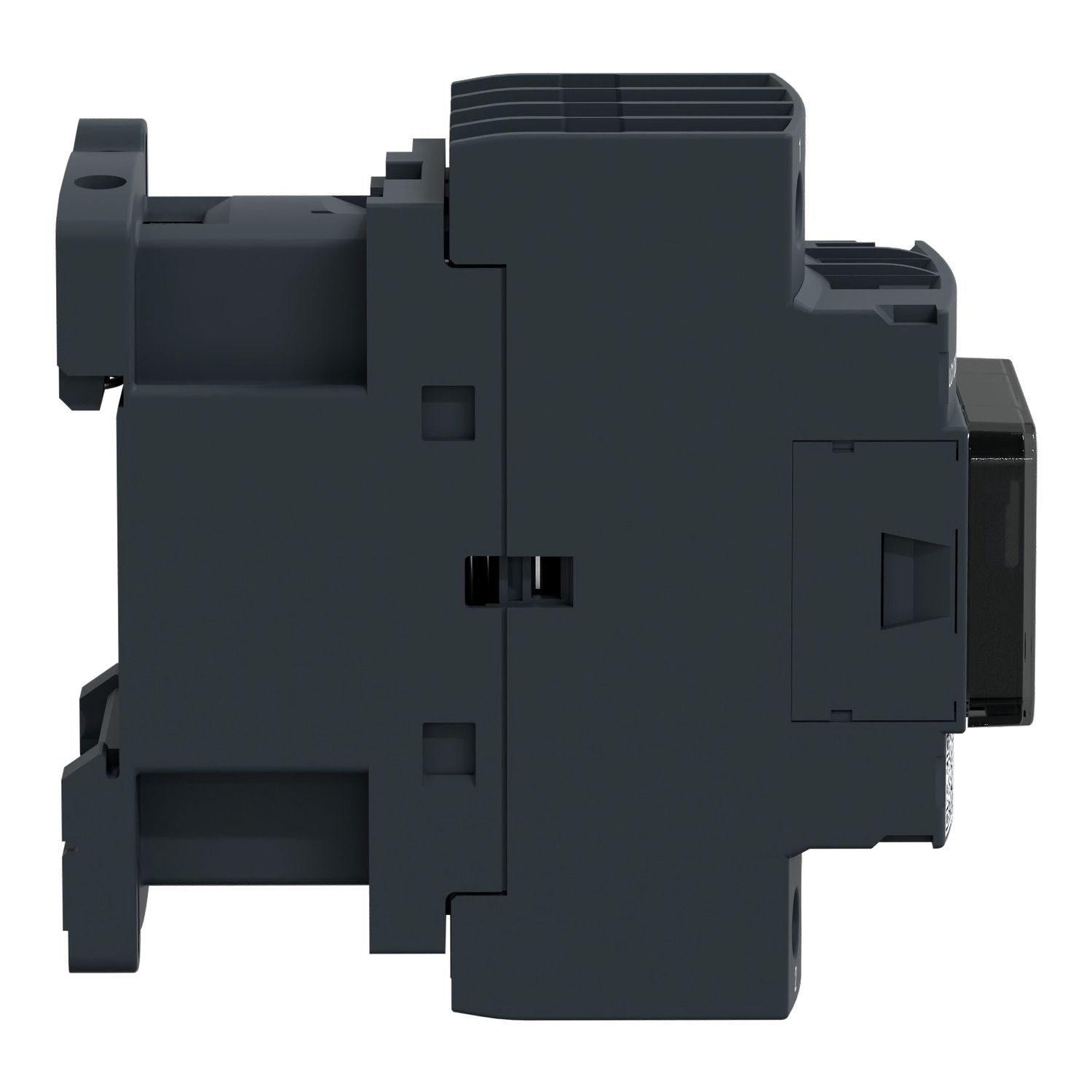

Picture of Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 20A, 48VAC 50/60Hz coil, screw clamp terminal

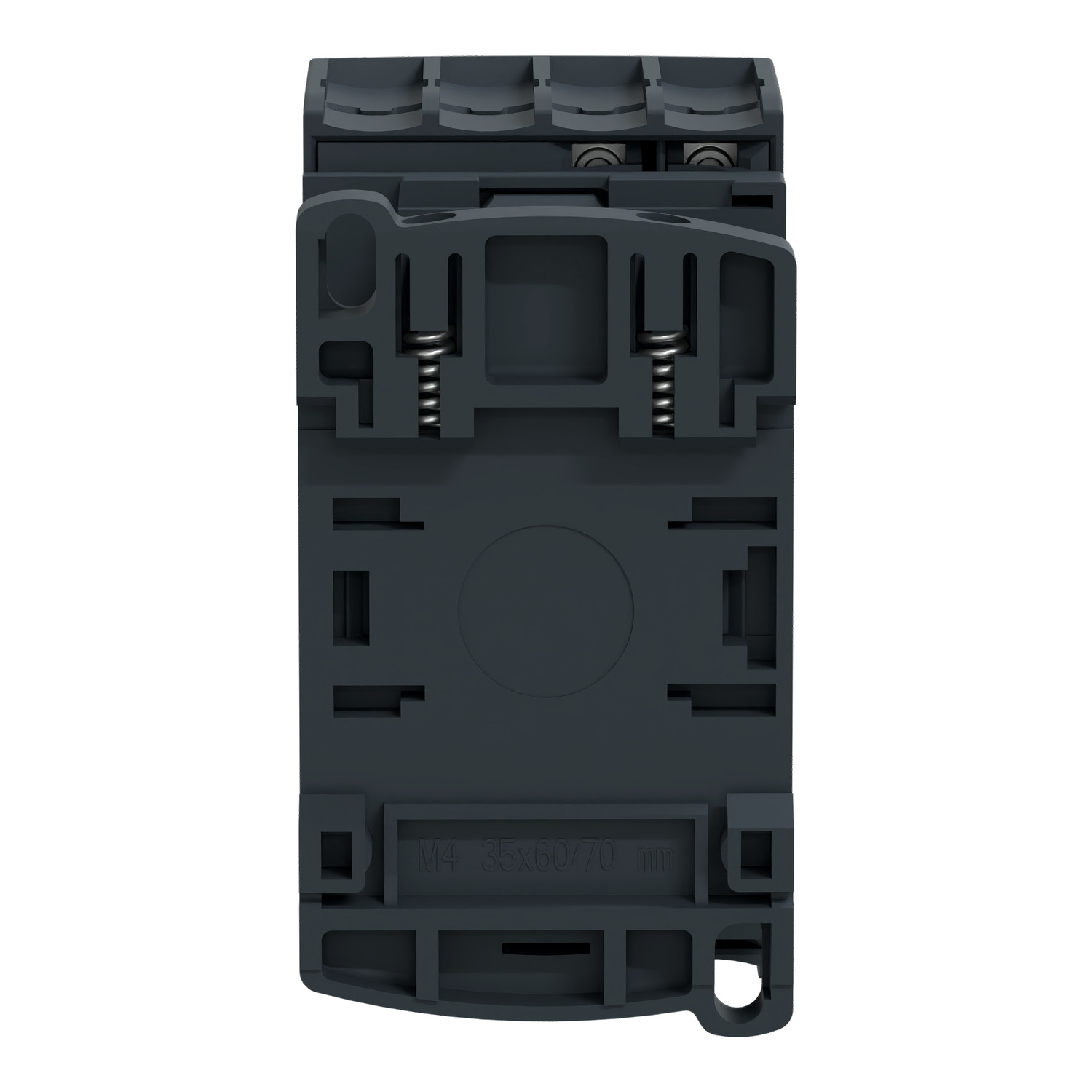

Picture of Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 20A, 48VAC 50/60Hz coil, screw clamp terminal

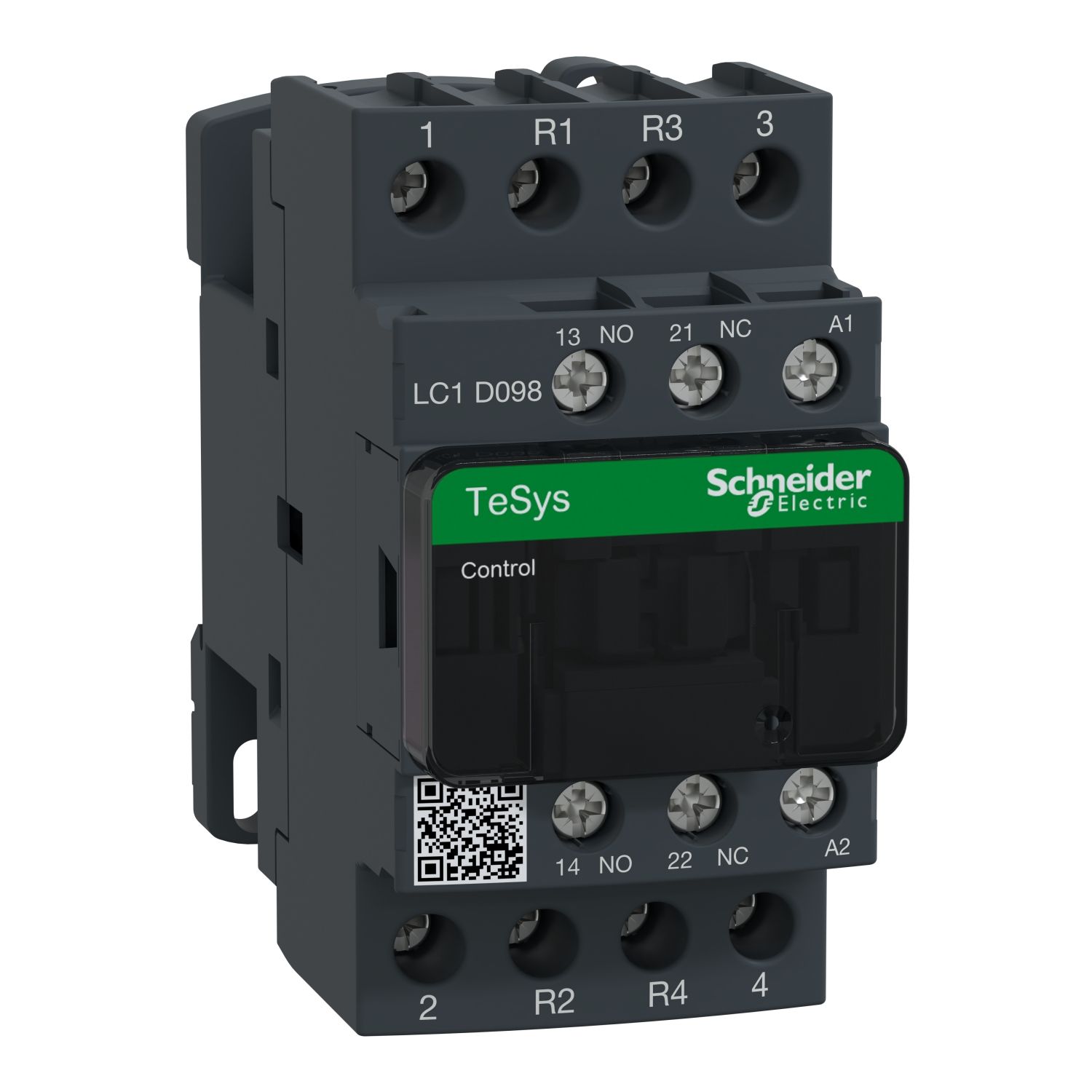

Picture of Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 20A, 48VAC 50/60Hz coil, screw clamp terminal

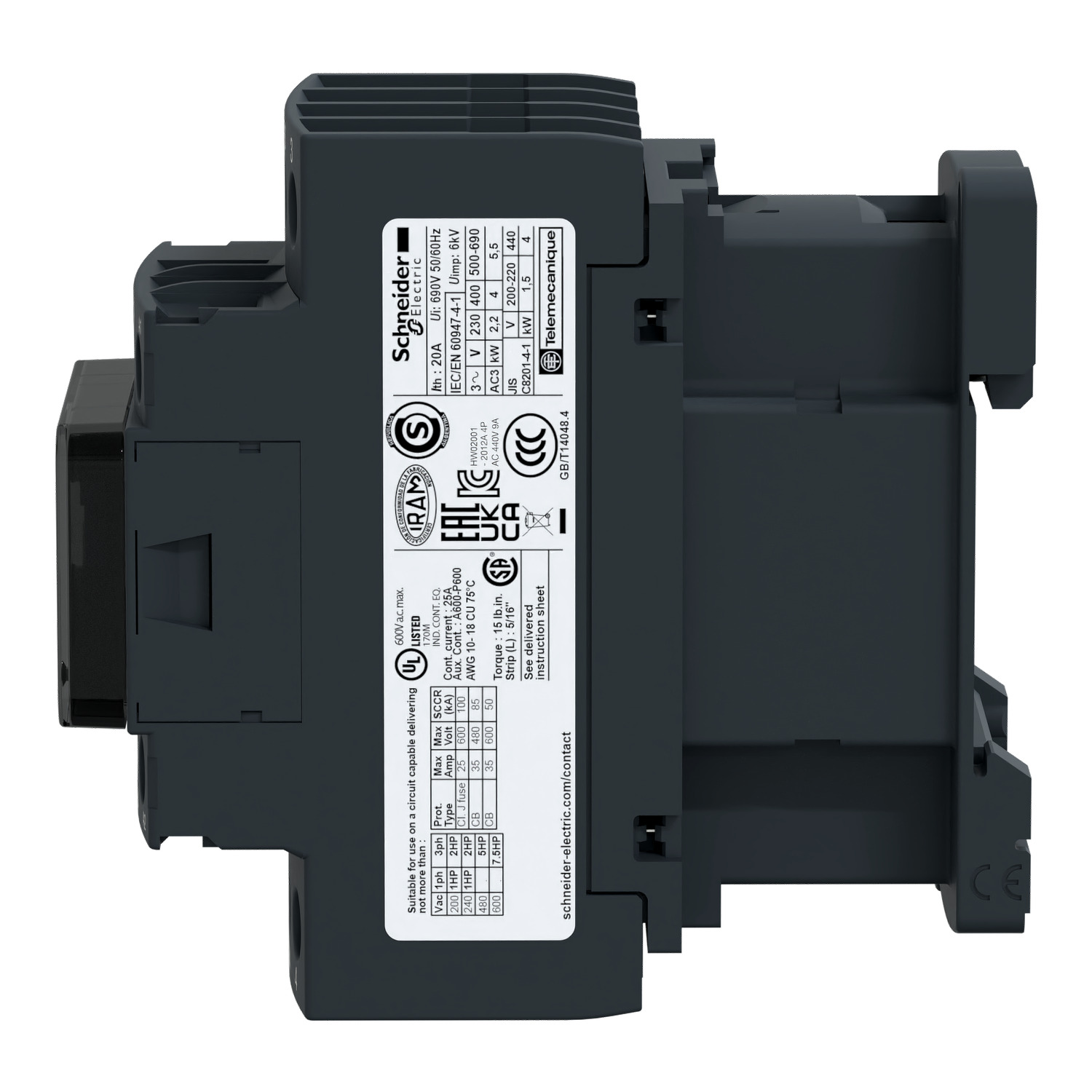

Picture of Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 20A, 48VAC 50/60Hz coil, screw clamp terminal
SKU:

LC1D098E7

Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 20A, 48VAC 50/60Hz coil, screw clamp terminal

$179.53
Product Selector
Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 20A, 48VAC 50/60Hz coil, screw clamp terminal
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Image of product
CAD
Instruction sheet
Image of product
Image of product
End of life manual
Catalogue
Image of product
Product environmental
Product Page Link
Product Data Sheet
TeSys D contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 20A/690V AC-1. It provides a 48V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
[Ie] rated operational current 20 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category AC-4, AC-3e, AC-3, AC-1
[Uc] control circuit voltage 48 V AC 50/60 Hz
Device short name LC1D
Range of product TeSys Deca
Poles description 4P
Product or component type contactor
Contactor application resistive load
[Ue] rated operational voltage power circuit: <= 250 V DC, power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code LC1D
Electrical durability 0.3 Mcycles 20 A AC-1 at Ue <= 690 V
Signalling circuit frequency 25...400 Hz
Associated fuse rating 20 A gG at <= 690 V coordination type 2 for power circuit, 25 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Control circuit type AC at 50/60 Hz
Protective cover with
[Ui] rated insulation voltage signalling circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified, power circuit: 690 V conforming to IEC 60947-4-1
Overvoltage category III
Auxiliary contacts type type mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Coil technology without built-in suppressor module
Inrush power in VA 70-70 VA 50 Hz cos phi 0.75 (at 20 °C), 70-70 VA 60 Hz cos phi 0.75 (at 20 °C)
Auxiliary contact composition 1 NO + 1 NC
Average impedance 2.5 mOhm - Ith 25 A 50 Hz for power circuit
Power dissipation per pole 1.56 W AC-1
Minimum switching current 5 mA for signalling circuit
Non-overlap time 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Heat dissipation 2-3 W at 50/60 Hz
[Icw] rated short-time withstand current 140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit, 61 A 40 °C - 1 min for power circuit, 30 A 40 °C - 10 min for power circuit, 210 A 40 °C - 1 s for power circuit, 105 A 40 °C - 10 s for power circuit
Mechanical durability 15 Mcycles
Tightening torque power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Minimum switching voltage 17 V for signalling circuit
Operating time 4...19 ms opening, 12...22 ms closing
Irms rated making capacity 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 250 A at 440 V for power circuit conforming to IEC 60947
Pollution degree 3
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-60 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit, 20 A (at 60 °C) for power circuit
Hold-in power consumption in VA 7-7 VA 50 Hz cos phi 0.3 (at 20 °C), 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate 3600 cyc/h 60 °C
Connections - terminals control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Pole contact composition 2 NO + 2 NC
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Insulation resistance > 10 MOhm for signalling circuit
Contact compatibility M6
Mounting support rail, plate
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness shocks contactor closed (15 Gn for 11 ms) , shocks contactor open (10 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
Climatic withstand conforming to IEC 60947-1 Annex Q category D exposure to damp heat,  conforming to IACS E10 exposure to damp heat
Standards GB/T 14048.4, CSA C22.2 No 60947-5-1, UL 60947-4-1, UL 60947-5-1, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 60947-4-1
Height 85 mm
Permissible ambient air temperature around the device 60-70 °C with derating, -40-60 °C
Operating altitude 0...3000 m
Net weight 0.365 kg
Product certifications EU-RO-MR by DNV-GL, CB, EAC, UKCA, CSA, CCC, UL
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Depth 92 mm
Width 45 mm
Flame retardance V1 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.800 cm
Package 1 Width 9.500 cm
Package 1 Length 12.000 cm
Package 1 Weight 393.000 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.798 kg
Unit Type of Package 3 3
Number of Units in Package 3 256
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 116.768 kg
