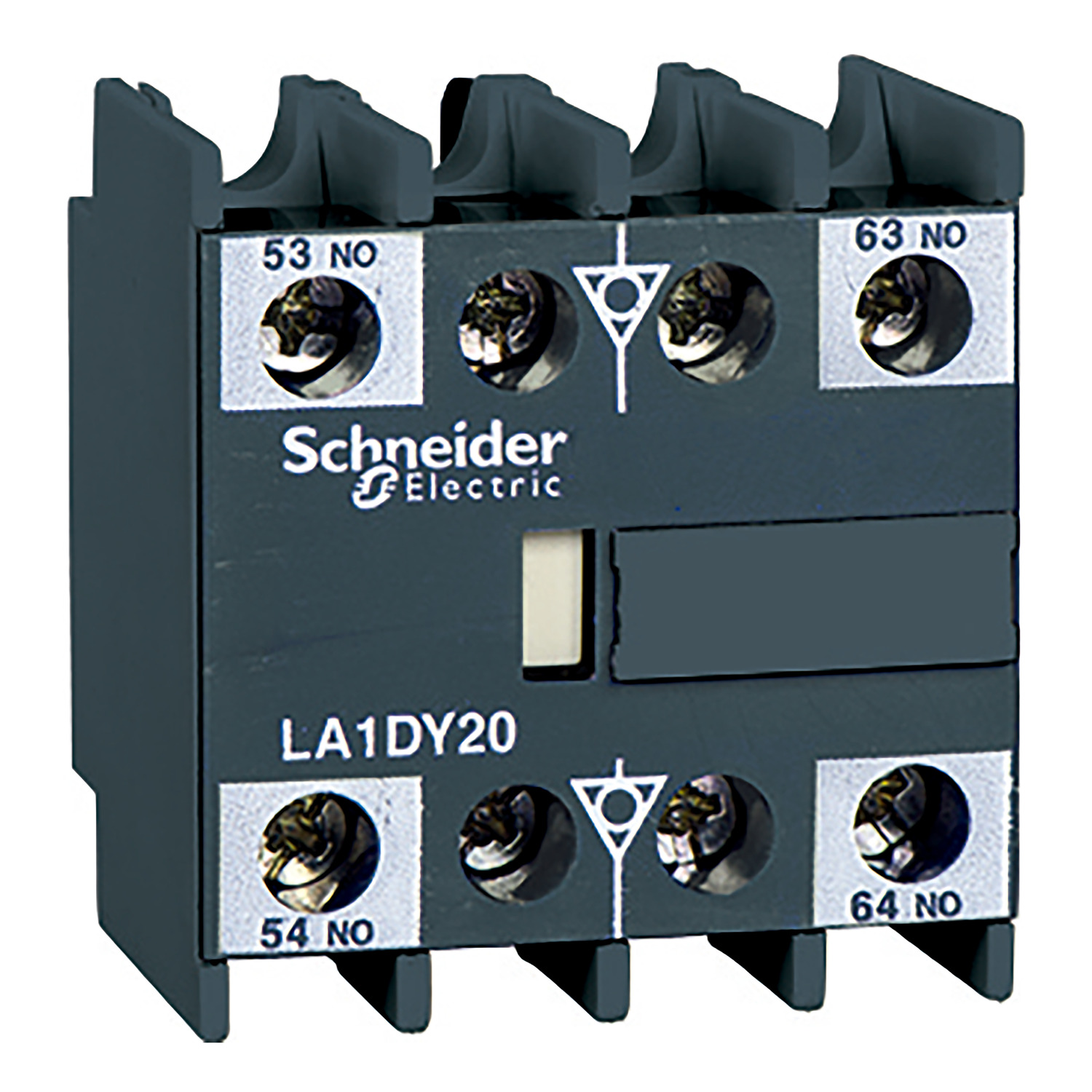

Picture of Auxiliary contact block, TeSys Deca, 2NO(sealed), front mounting
SKU:

LA1DY20

Auxiliary contact block, TeSys Deca, 2NO(sealed), front mounting

$191.80
Available for Shipping : 03-Dec-2024
Auxiliary contact block, TeSys Deca, 2NO(sealed), front mounting
  • Meet the need for more and various tpye control contact of TeSys Deca contactor and control relay
  • Easy choice for simple applications
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Declaration of conformity
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
TeSys Deca instantaneous auxiliary contact block with dust and damp protected contacts, for LC1D contactors and CAD control relays in harsh industral environments. It provides 2NO protected contacts rated up to 0.1A 125V AC / 30V DC, 4 earth terminals for cable screen continuity, connection by screw clamp terminals. Very low minimum switching capacity (5V / 1mA) thanks to gold alloy contact material. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LA1
Auxiliary contacts operation instantaneous
Range TeSys
Range of product TeSys Deca
[Ie] rated operational current 0.1 A
[Ui] rated insulation voltage 250 V conforming to IEC 60947-5-1
Pole contact composition 2 NO (sealed), 2 earth screen continuity poles
Mounting location front
Product name TeSys Deca
Product or component type auxiliary contact block
Range compatibility TeSys Deca LC1D, TeSys Deca CAD, TeSys F CR1F, TeSys F LC1F, TeSys D LC1D, TeSys D CAD
[Ue] rated operational voltage 30 V DC for protected contact, 125 V AC for protected contact
Standards GB/T 14048.5, CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/IEC 60947-5-1
Product certifications UKCA, EAC, CCC, CSA, UL, CB
Complementary
Quantity per set set of 2
Compatibility code LA1
Mechanical durability 5 Mcycles
Tightening torque 1.7 N.m - with screwdriver pozidriv No 2, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver flat Ø 6 mm
Minimum switching voltage 5 V
Connections - terminals screw clamp terminals 2 cable(s) 1-2.5 mm²rigid, screw clamp terminals 1 cable(s) 1-2.5 mm²rigid, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-2.5 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-2.5 mm²flexible with cable end
Height 48 mm
Shielding continuity terminal with
Depth 39 mm
Width 44 mm
Net weight 0.04 kg
Insulation resistance > 10 MOhm
Minimum switching current 1 mA
Environment
Protective treatment TH conforming to IEC 60068
Environmental characteristic harsh environment
Ambient air temperature for storage -25-70 °C
IP degree of protection IP2X conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.0 cm
Package 1 Width 4.8 cm
Package 1 Length 5.2 cm
Package 1 Weight 63.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 5.0 cm
Package 2 Width 8.5 cm
Package 2 Length 26.0 cm
Package 2 Weight 633.0 g
Unit Type of Package 3 3
Number of Units in Package 3 80
Package 3 Height 15.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 5.383 kg
