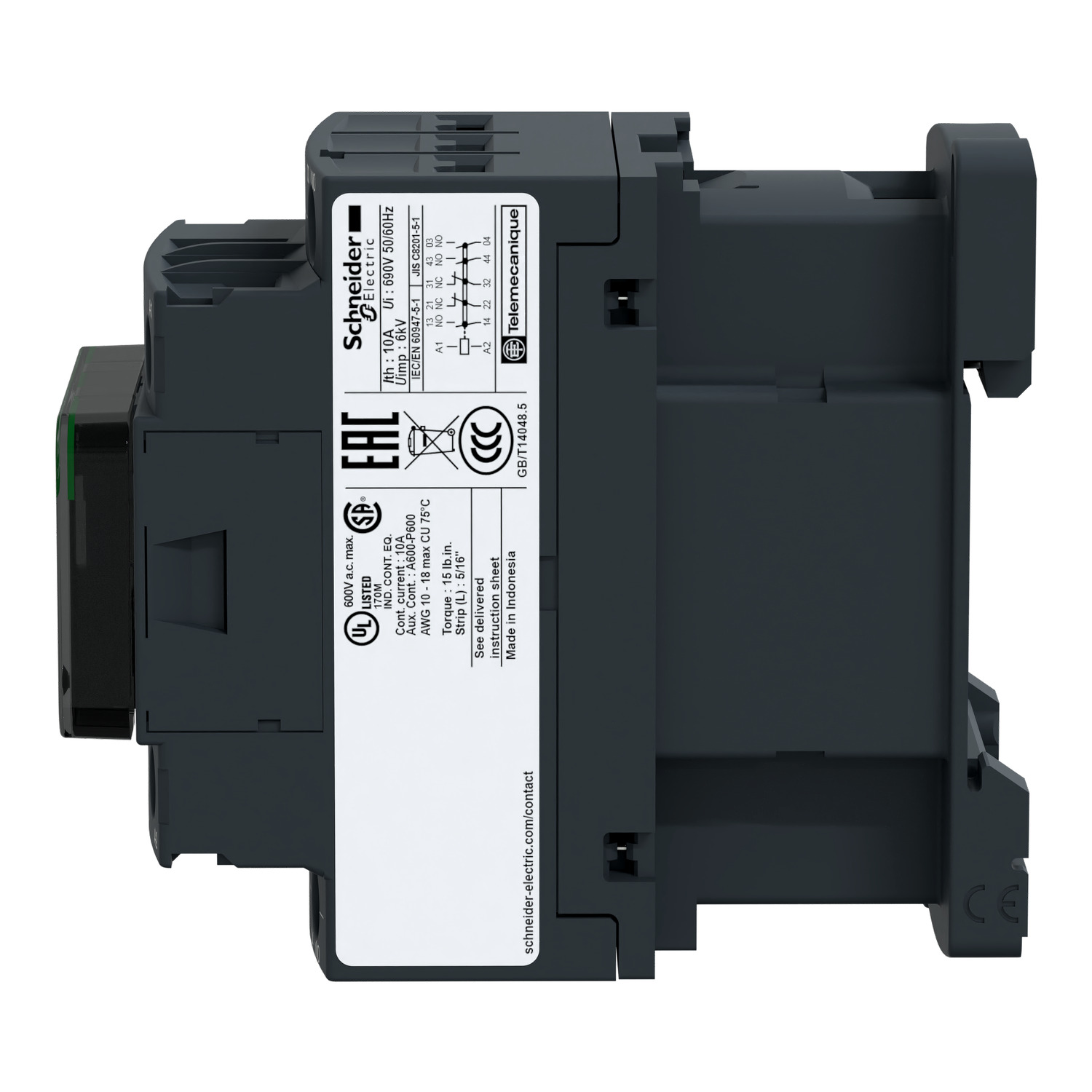

Picture of TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 220VAC 50/60Hz standard coil, screw clamp

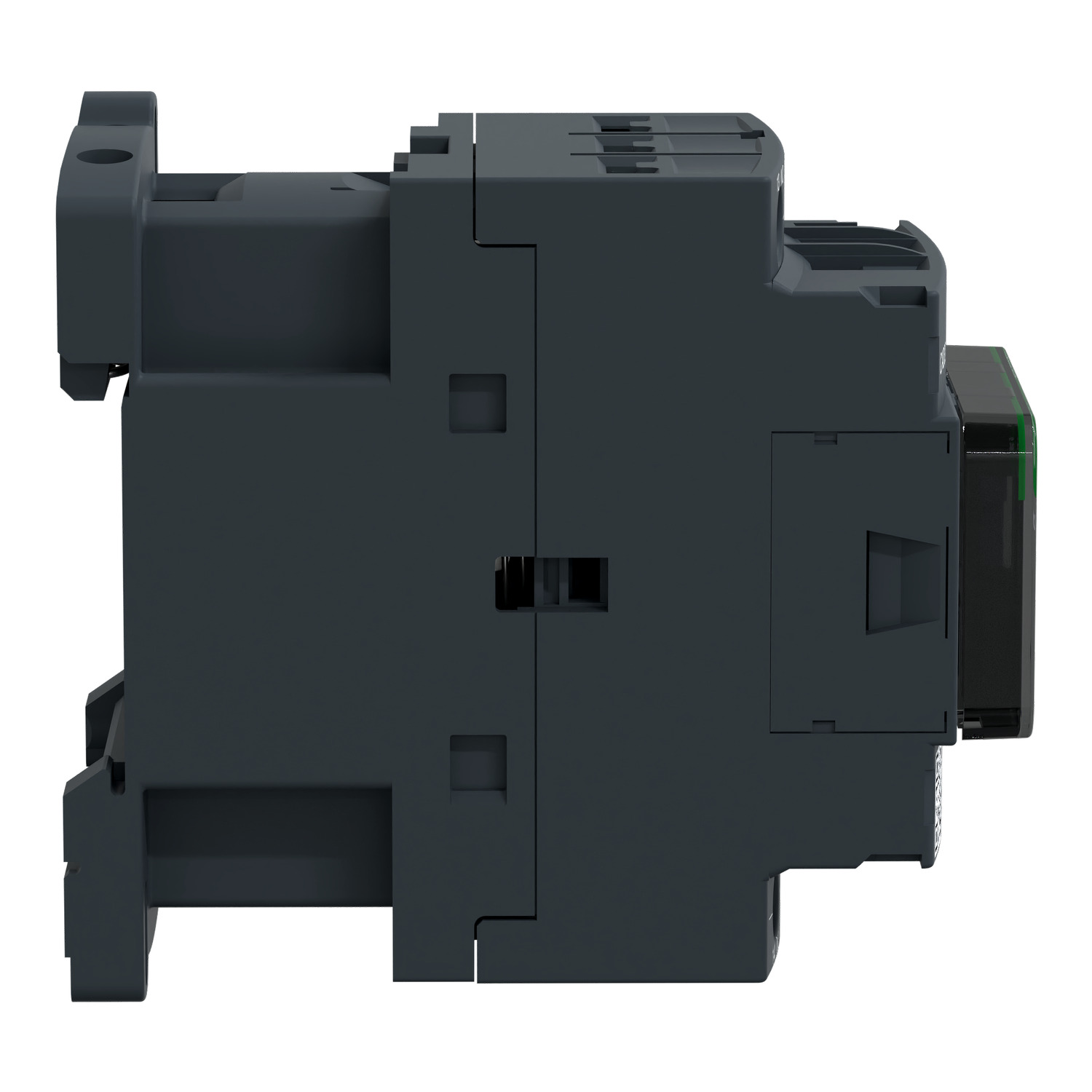

Picture of TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 220VAC 50/60Hz standard coil, screw clamp

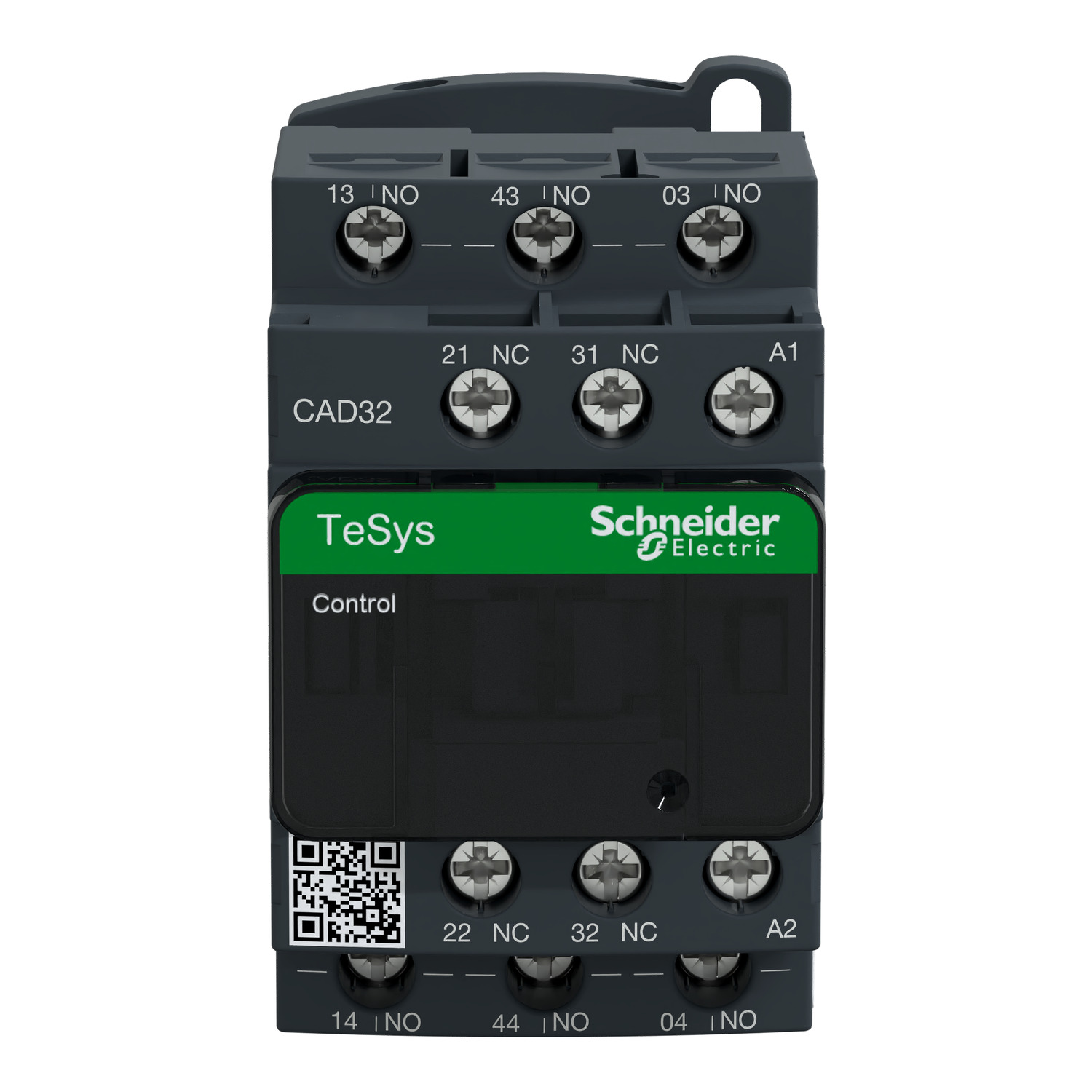

Picture of TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 220VAC 50/60Hz standard coil, screw clamp

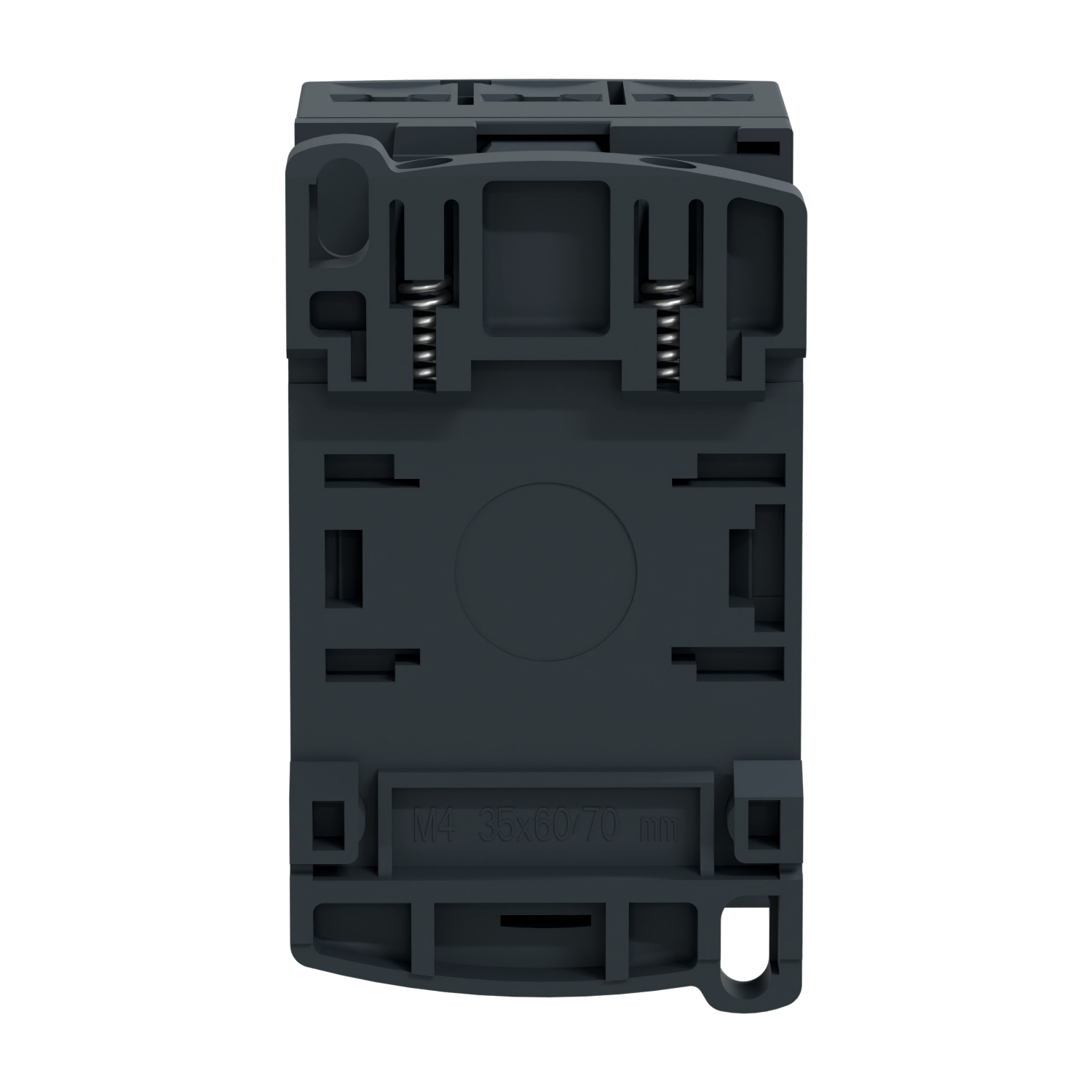

Picture of TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 220VAC 50/60Hz standard coil, screw clamp
Picture of TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 220VAC 50/60Hz standard coil, screw clamp
Picture of TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 220VAC 50/60Hz standard coil, screw clamp
SKU:

CAD32M7

TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 220VAC 50/60Hz standard coil, screw clamp

$224.93
TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 220VAC 50/60Hz standard coil, screw clamp
  • TeSys Control Relays provide a cost-effective solution to a simple application
  • Same design as TeSys D, K and SK contactors
  • Different ways for connection. (such as screw clamp terminal, spring terminal, welded on PCB)
  • Compatible for all the voltages on the market
  • Multiple international certifications
  • Control relays for AC or DC control circuits (AC15, DC13)
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
End of life manual
Image of product
Image of product
Catalogue
Image of product
Image of product
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 220V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameCAD
RangeTeSys Deca, TeSys
Range of productTeSys D control relay
Product nameTeSys CAD
Product or component typecontrol relay
Contactor applicationcontrol circuit
Complementary
Compatibility codeCAD
Connections - terminalsscrew clamp terminals 2 cable(s) 1-4 mm²solid without cable end, screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
Associated fuse rating10 A gG conforming to IEC 60947-5-1
Control circuit typeAC at 50/60 Hz
Height77 mm
[Ui] rated insulation voltage690 V conforming to IEC 60947-5-1, 600 V CSA certified, 600 V UL certified
Operating time6...17 ms coil de-energisation and NC closing, 4...19 ms coil energisation and NC opening, 4...12 ms coil de-energisation and NO opening, 12...22 ms coil energisation and NO closing
Utilisation categoryAC-15, AC-14, DC-13
Inrush power in VA70-70 VA 50 Hz (at 20 °C)
Net weight0.58 kg
[Uc] control circuit voltage220 V AC 50/60 Hz
Minimum switching current5 mA
Non-overlap time1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
[Icw] rated short-time withstand current140 A - 100 ms, 120 A - 500 ms, 100 A - 1 s
Mechanical durability30 Mcycles
Tightening torque1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2
Minimum switching voltage17 V
Irms rated making capacity250 A DC conforming to IEC 60947-5-1, 140 A AC conforming to IEC 60947-5-1
Control circuit voltage limits1...1.1 Uc (60-70 °C):operational AC 50/60 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current10 A (at 60 °C)
Mechanical robustnessvibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27
Depth84 mm
Width45 mm
Hold-in power consumption in VA8-8 VA 50 Hz (at 20 °C)
Maximum operating rate180 cyc/mn
Pole contact composition3 NO + 2 NC
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947
Insulation resistance> 10 MOhm
Mounting supportrail, plate
[Ue] rated operational voltage<= 690 V AC 25...400 Hz
Environment
Ambient air temperature for storage-60-80 °C
StandardsJIS C8201-5-1, CSA C22.2 No 60947-5-1, UL 60947-5-1, GB/T 14048.5, EN/IEC 60947-5-1
Ambient air temperature for operation60-70 °C with derating, -40-60 °C
Operating altitude0...3000 m
Product certificationsUKCA, CE, EAC, CSA, UL, CCC, CB
IP degree of protectionIP2X front face conforming to VDE 0106
Protective treatmentTH conforming to IEC 60068
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.000 cm
Package 1 Width9.000 cm
Package 1 Length11.000 cm
Package 1 Weight348.000 g
Unit Type of Package 22
Number of Units in Package 220
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight7.197 kg
Unit Type of Package 33
Number of Units in Package 3320
Package 3 Height75.000 cm
Package 3 Width80.000 cm
Package 3 Length60.000 cm
Package 3 Weight123.152 kg
