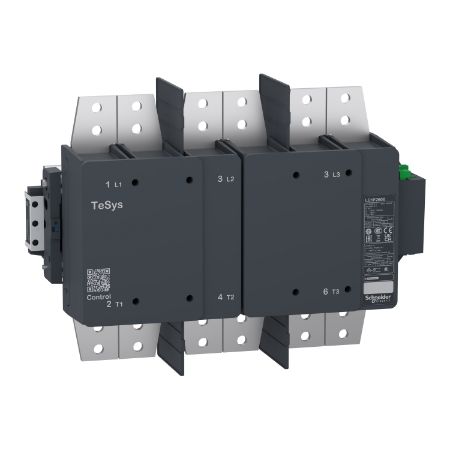

Picture of Contactor,TeSys F,3P(3NO), AC-1 <= 1000V 2600A,100-250V AC/DC coil
SKU:

LC1F2600KUE

Contactor,TeSys F,3P(3NO), AC-1 <= 1000V 2600A,100-250V AC/DC coil

Please Contact Sales to buy this Product. click here
Contactor,TeSys F,3P(3NO), AC-1 <= 1000V 2600A,100-250V AC/DC coil
  • Reliable: designed with low sealed consumption coil
  • High durability: 600 cycles/hour for operating rate
  • High reliability: environments tolerance up to 55°C
  • Easy installation and maintenance thanks to its drawer-mounted coil and a large choice of add-on blocks
  • Various fields of application with multiple standards certifications
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
Declaration of conformity
Catalogue
Instruction sheet
Product environmental
End of life manual
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LC1F
Poles description 3P
[Ie] rated operational current 2600 A (at <60 °C) AC-1
Utilisation category AC-1
Range TeSys
Product or component type contactor
Contactor application resistive load
[Ue] rated operational voltage <= 1000 V AC 50/60 Hz
Range of product TeSys F
[Uc] control circuit voltage 100...250 V DC, 100...250 V AC 50/60 Hz
Complementary
Heat dissipation 16-20 W
[Icw] rated short-time withstand current 4000 A 40 °C - 10 min, 6000 A 40 °C - 3 min, 7000 A 40 °C - 1 min, 9000 A 40 °C - 30 s, 12000 A 40 °C - 10 s
[Ui] rated insulation voltage 1000 V conforming to UL 60947-4-1, 1000 V conforming to IEC 60947-4-1
Overvoltage category III
Tightening torque control circuit: 0.5-0.6 N.m, power circuit: 52.2-63.8 N.m
Hold-in power consumption in VA 21.1-24.5 VA, 50/60 Hz cos phi 0.5 (at 20 °C)
Compatibility code LC1F
Inrush power in W 1300-2400 W (at 20 °C)
Mechanical durability 0.5 Mcycles
Input voltage limits 11...30 V on-state for PLC input, 0...5 V off-state for PLC input
Maximum operating rate 600 cyc/h 55 °C
Operating time 20...28 ms opening, 54...88 ms closing
Input compatibility PLC 24 V DC conforming to IEC 61131-2 Type 2
Pole contact composition 3 NO
Connections - terminals control circuit: screw clamp terminals 1 cable(s) 0.25-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 0.2-2.5 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 0.2-2.5 mm²solid, power circuit: bar 3 cable(s) - busbar cross section: 100 x 10 mm
Inrush power in VA 1100-2300 VA, 50/60 Hz cos phi 0.5 (at 20 °C)
[Uimp] rated impulse withstand voltage 8 kV
Associated fuse rating 2500 A gG at <= 440 V
Irms rated making capacity 3900 A conforming to IEC 60947-4-1
Rated breaking capacity 3900 A conforming to IEC 60947-4-1
Hold-in power consumption in W 14-18 W at 20 °C
Control circuit type DC electronic, AC at 50/60 Hz electronic
Mounting support plate
Standards UL 60947-4-1, JIS C8201-4-1, EN/IEC 60947-1, EN/IEC 60947-4-1
Control circuit voltage limits drop-out: 0...51 V DC (at 55 °C), drop-out: 0...65 V AC 50/60 Hz (at 55 °C), operational: 85...275 V AC/DC (at 55 °C)
[Ith] conventional free air thermal current 2600 A (at 40 °C)
Average impedance 0.1 mOhm - Ith 2600 A 50 Hz
Power dissipation per pole 250 W AC-1
Product certifications EAC, UKCA, UL, CCC, CB Scheme
Environment
Permissible ambient air temperature around the device -40-60 °C
Depth 251 mm
Width 519 mm
Operating altitude 3000 m without derating
Ambient air temperature for storage -60-80 °C
Net weight 36 kg
Ambient air temperature for operation -5-40 °C
Height 382 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 38.0 cm
Package 1 Width 50.0 cm
Package 1 Length 60.0 cm
Package 1 Weight 37.22 kg
