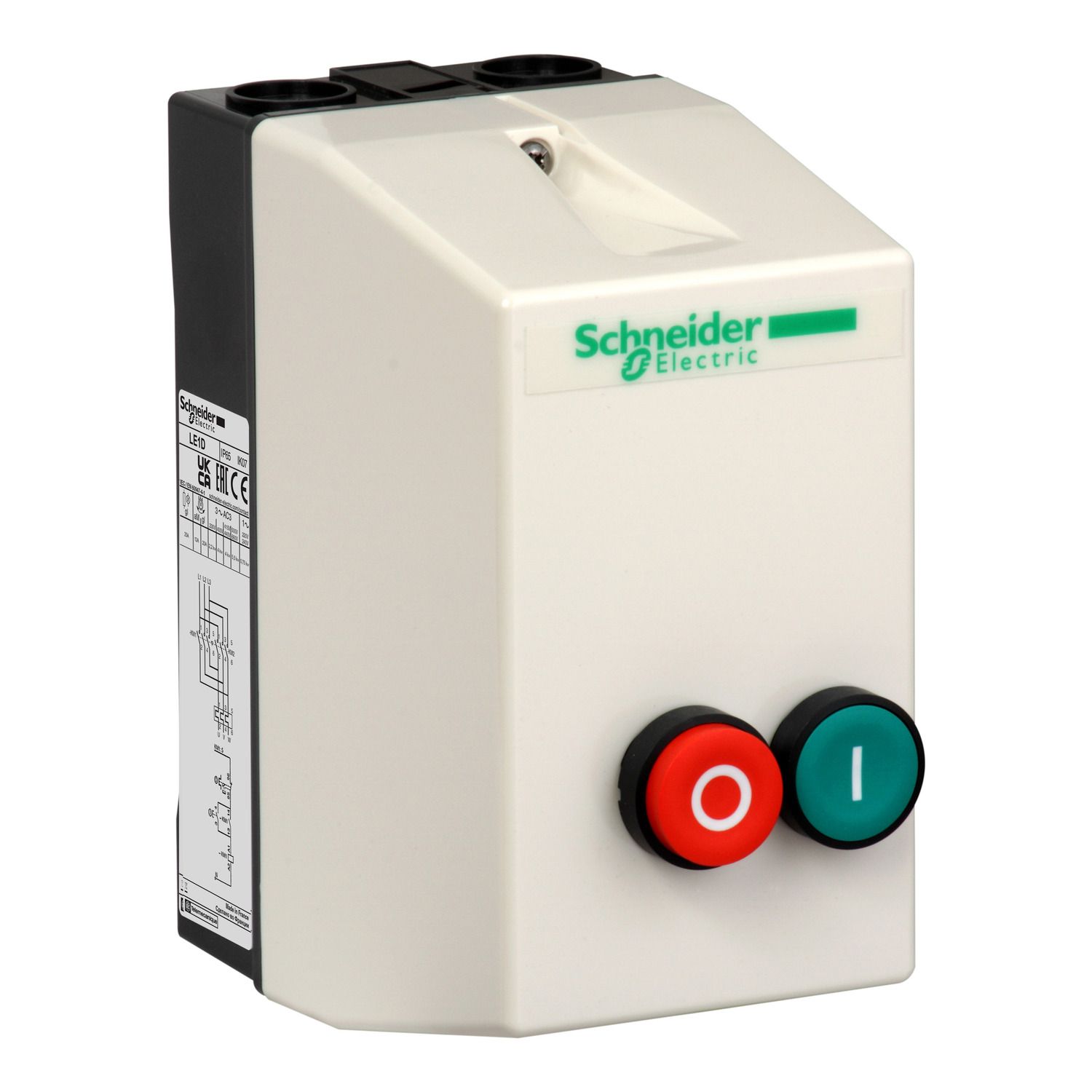

Picture of Enclosed DOL starter,TeSys LE,12A,220V AC coil,including 1 LC1D,2 pushbuttons
SKU:

LE1D12M7

Enclosed DOL starter,TeSys LE,12A,220V AC coil,including 1 LC1D,2 pushbuttons

$119.02 INC GST
Available for Shipping : 17-Feb-2025
Product Selector
Enclosed DOL starter,TeSys LE,12A,220V AC coil,including 1 LC1D,2 pushbuttons
  • Polycarbonate enclosure provides high level protection against water, dust and mechanical compact
  • Environmentally friendly product
  • Good performance on motor protection against overload, work with overload relay
  • Easy to use with ON/OFF pushbuttons at the front
  • Multiple resetting methods: manual & remotely
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
End of life manual
Product environmental
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LE1D
Device application standard
Range TeSys
Control type push-button stop/reset red O, push-button start green I
Utilisation category AC-3
Device composition contactor, thermal overload relay ordered separately
Product name TeSys LE
Product or component type enclosed DOL starter
Complementary
Compatibility code LE1D
Height 166 mm
[Ithe] conventional enclosed thermal current 12 A
Motor power kW 5.5 kW at 440 V AC 50/60 Hz, 5.5 kW at 415 V AC 50/60 Hz, 5.5 kW at 380/400 V AC 50/60 Hz, 7.5 kW at 660/690 V AC 50/60 Hz, 7.5 kW at 500 V AC 50/60 Hz, 3 kW at 220/230 V AC 50/60 Hz
Depth 128.5 mm
Width 88 mm
Cable entry number 2 ISO20 bottom, 2 ISO20 top
Net weight 0.92 kg
[Uc] control circuit voltage 220 V AC 50/60 Hz
Environment
IP degree of protection IP65 conforming to IEC 60529
Environmental characteristic standard environment
Ambient air temperature for operation -5-40 °C
IK degree of protection IK07 conforming to IEC 60529
Material polycarbonate
Standards IEC 60947-4-1
Product certifications UKCA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.100 cm
Package 1 Width 15.000 cm
Package 1 Length 20.500 cm
Package 1 Weight 882.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 39.220 kg
