SKU:

LE1D12N7S48

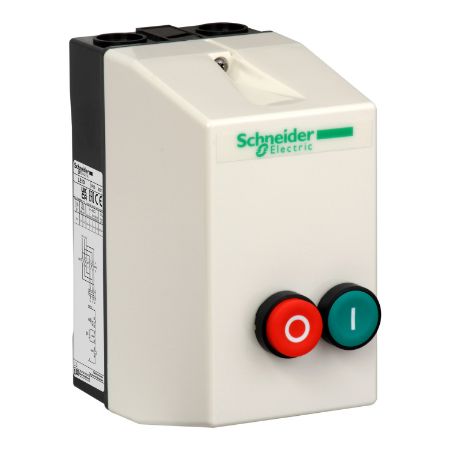

Schneider Electric, Enclos 1S 12A 415V 50/60

$93.90

Qty:

Available for Shipping : 24-Nov-2024

Schneider Electric, Enclos 1S 12A 415V 50/60

Manufacturer: Schneider Electric

Instruction sheet

Product environmental

End of life manual

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device composition	contactor, thermal overload relay ordered separately
Range	TeSys
Device short name	LE1D
Device application	standard
Product name	TeSys LE
Product or component type	enclosed DOL starter
Control type	push-button stop/reset red O, push-button start green I
Utilisation category	AC-3
Complementary
[Ithe] conventional enclosed thermal current	12 A
Net weight	1.015 kg
Motor power kW	5.5 kW at 440 V AC 50/60 Hz, 5.5 kW at 415 V AC 50/60 Hz, 5.5 kW at 380/400 V AC 50/60 Hz, 7.5 kW at 660/690 V AC 50/60 Hz, 7.5 kW at 500 V AC 50/60 Hz, 3 kW at 220/230 V AC 50/60 Hz
Depth	153.5 mm
Width	103 mm
Compatibility code	LE1D
[Ie] rated operational current	12 A AC-3
Height	200 mm
[Uc] control circuit voltage	415 V AC 50/60 Hz
Cable entry number	2 ISO25 bottom, 2 ISO20 bottom, 2 ISO25 top, 2 ISO20 top
Environment
Material	polycarbonate
IP degree of protection	IP65 conforming to IEC 60529
Standards	IEC 60947-4-1
Environmental characteristic	standard environment
Ambient air temperature for operation	-5-40 °C
IK degree of protection	IK07 conforming to IEC 60529
Product certifications	UKCA
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	15.5 cm
Package 1 Width	15.0 cm
Package 1 Length	20.5 cm
Package 1 Weight	920.0 g
