SKU:

LE1D40AP7

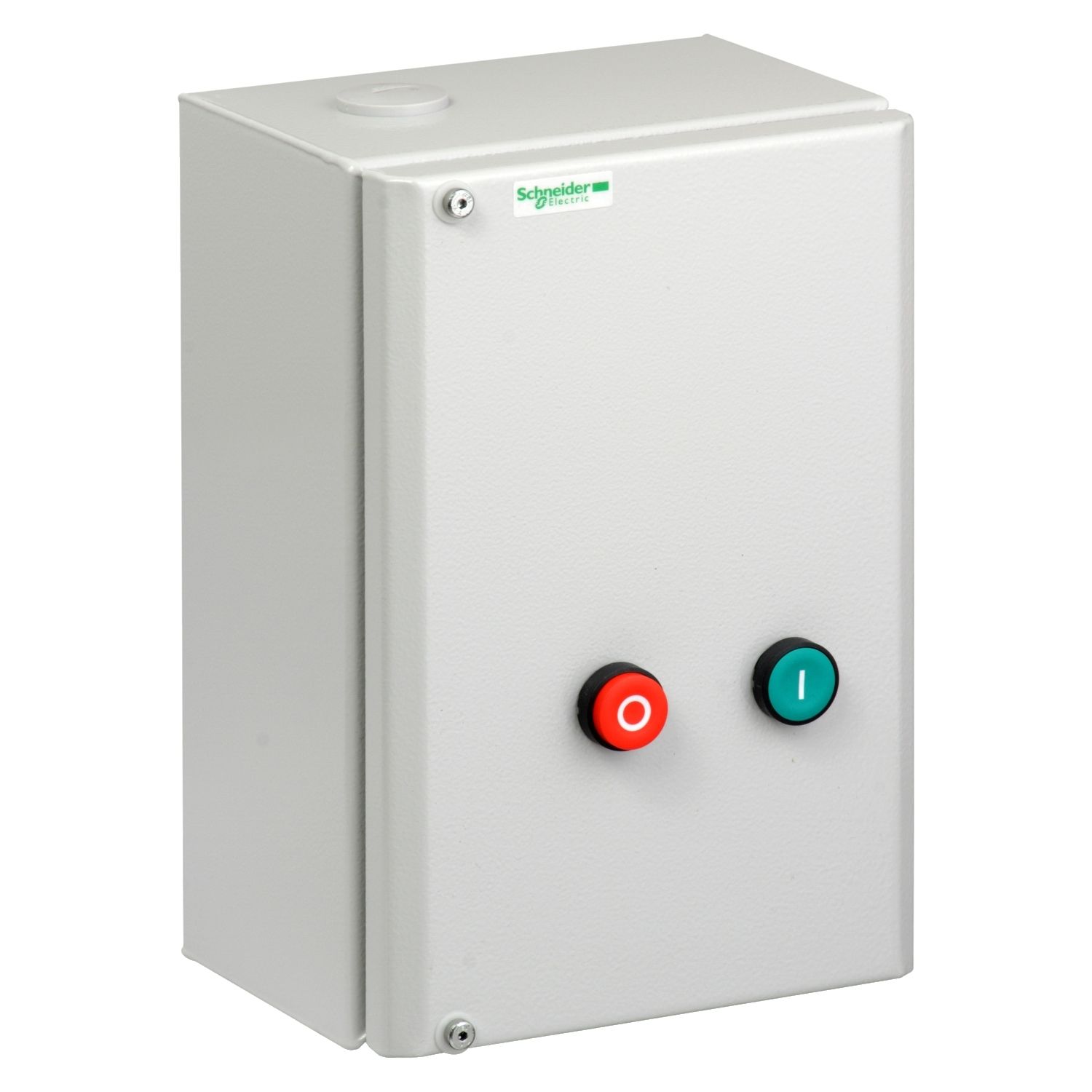

Enclosed DOL starter,TeSys LE,40A,230V AC coil,including 1 LC1D,2 pushbuttons

$711.50

Qty:

Available for Shipping : 10-Dec-2024

Product Selector

Enclosed DOL starter,TeSys LE,40A,230V AC coil,including 1 LC1D,2 pushbuttons

Manufacturer: Schneider Electric

Instruction sheet

Catalogue

End of life manual

Product environmental

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	LE1D
Device application	standard
Control type	push-button stop/reset red O, push-button start green I
Utilisation category	AC-3
Device composition	contactor, thermal overload relay ordered separately
Range	TeSys
Product name	TeSys LE
Product or component type	enclosed DOL starter
Complementary
[Ithe] conventional enclosed thermal current	40 A
Motor power kW	18.5 kW at 380/400 V AC 50/60 Hz, 30 kW at 660/690 V AC 50/60 Hz, 22 kW at 500 V AC 50/60 Hz, 22 kW at 440 V AC 50/60 Hz, 22 kW at 415 V AC 50/60 Hz, 11 kW at 220/230 V AC 50/60 Hz
Depth	158.4 mm
Width	200 mm
Compatibility code	LE1D
Cable entry number	3 1 ISO20 + 2 ISO32 bottom, 1 ISO32 top
Net weight	4.82 kg
Height	300 mm
[Uc] control circuit voltage	230 V AC 50/60 Hz
Environment
IP degree of protection	IP65 conforming to IEC 60529
Material	sheet steel
Standards	IEC 60947-4-1
Ambient air temperature for operation	-5-40 °C
IK degree of protection	IK09 conforming to IEC 60529
Product certifications	UKCA
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	30.000 cm
Package 1 Width	32.000 cm
Package 1 Length	41.000 cm
Package 1 Weight	5.018 kg
Unit Type of Package 2	2
Number of Units in Package 2	4
Package 2 Height	75.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	33.072 kg
