SKU:

LE1D50AQ7

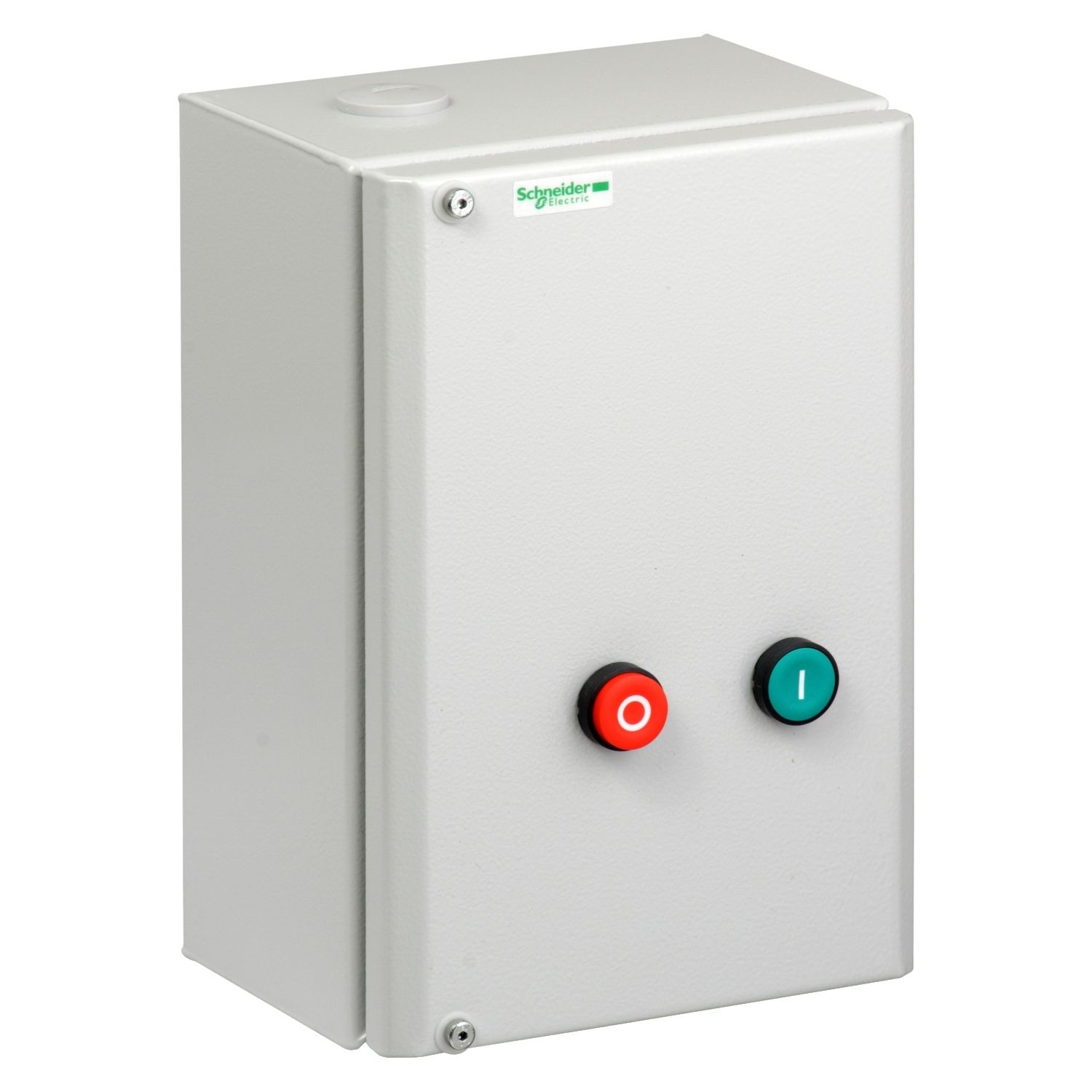

Enclosed DOL starter,TeSys LE,50A,380V AC coil,including 1 LC1D,2 pushbuttons

$781.12

Qty:

Available for Shipping : 19-Dec-2024

Product Selector

Enclosed DOL starter,TeSys LE,50A,380V AC coil,including 1 LC1D,2 pushbuttons

Polycarbonate enclosure provides high level protection against water, dust and mechanical compact

Manufacturer: Schneider Electric

Instruction sheet

Catalogue

End of life manual

Product environmental

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	LE1D
Device application	standard
Range	TeSys
Control type	push-button stop/reset red O, push-button start green I
Utilisation category	AC-3
Device composition	contactor, thermal overload relay ordered separately
Product name	TeSys LE
Product or component type	enclosed DOL starter
Complementary
Compatibility code	LE1D
Height	300 mm
[Ithe] conventional enclosed thermal current	50 A
Motor power kW	33 kW at 660/690 V AC 50/60 Hz, 30 kW at 500 V AC 50/60 Hz, 30 kW at 440 V AC 50/60 Hz, 25 kW at 415 V AC 50/60 Hz, 22 kW at 380/400 V AC 50/60 Hz, 15 kW at 220/230 V AC 50/60 Hz
Depth	158.4 mm
Width	200 mm
Cable entry number	3 1 ISO20 + 2 ISO32 bottom, 1 ISO32 top
Net weight	4.85 kg
[Uc] control circuit voltage	380 V AC 50/60 Hz
Environment
IP degree of protection	IP65 conforming to IEC 60529
Ambient air temperature for operation	-5-40 °C
IK degree of protection	IK09 conforming to IEC 60529
Material	sheet steel
Standards	IEC 60947-4-1
Product certifications	UKCA
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	30.0 cm
Package 1 Width	32.0 cm
Package 1 Length	41.0 cm
Package 1 Weight	6.0 kg
