SKU:

LE1D65AP7

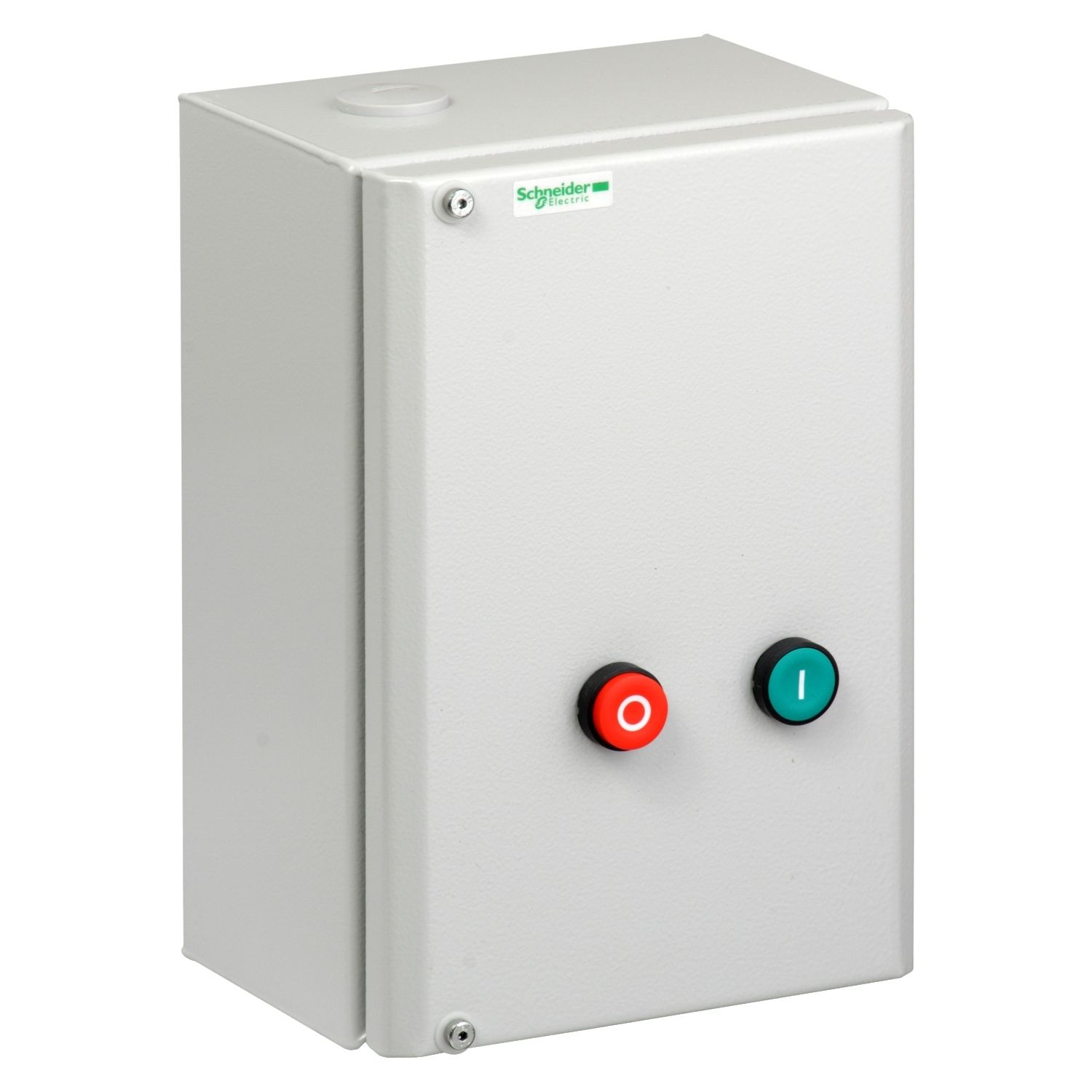

Enclosed DOL starter,TeSys LE,65A,230V AC coil,including 1 LC1D,2 pushbuttons

$919.34

Qty:

Enclosed DOL starter,TeSys LE,65A,230V AC coil,including 1 LC1D,2 pushbuttons

Estimated Delivery Date: 26-Oct-2024

Attribute name	Attribute value
Main
Device short name	LE1D
Device application	standard
Control type	push-button stop/reset red O, push-button start green I
Utilisation category	AC-3
Device composition	contactor, thermal overload relay ordered separately
Range	TeSys
Product name	TeSys LE
Product or component type	enclosed DOL starter
Complementary
[Ithe] conventional enclosed thermal current	65 A
Motor power kW	18.5 kW at 220/230 V AC 50/60 Hz, 37 kW at 660/690 V AC 50/60 Hz, 37 kW at 500 V AC 50/60 Hz, 37 kW at 440 V AC 50/60 Hz, 37 kW at 415 V AC 50/60 Hz, 30 kW at 380/400 V AC 50/60 Hz
Depth	158.4 mm
Width	200 mm
Compatibility code	LE1D
Cable entry number	3 1 ISO20 + 2 ISO32 bottom, 1 ISO32 top
Net weight	4.85 kg
Height	300 mm
[Uc] control circuit voltage	230 V AC 50/60 Hz
Environment
IP degree of protection	IP65 conforming to IEC 60529
Material	sheet steel
Standards	IEC 60947-4-1
Ambient air temperature for operation	-5-40 °C
IK degree of protection	IK09 conforming to IEC 60529
Product certifications	UKCA
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	30.0 cm
Package 1 Width	32.0 cm
Package 1 Length	41.0 cm
Package 1 Weight	6.0 kg
