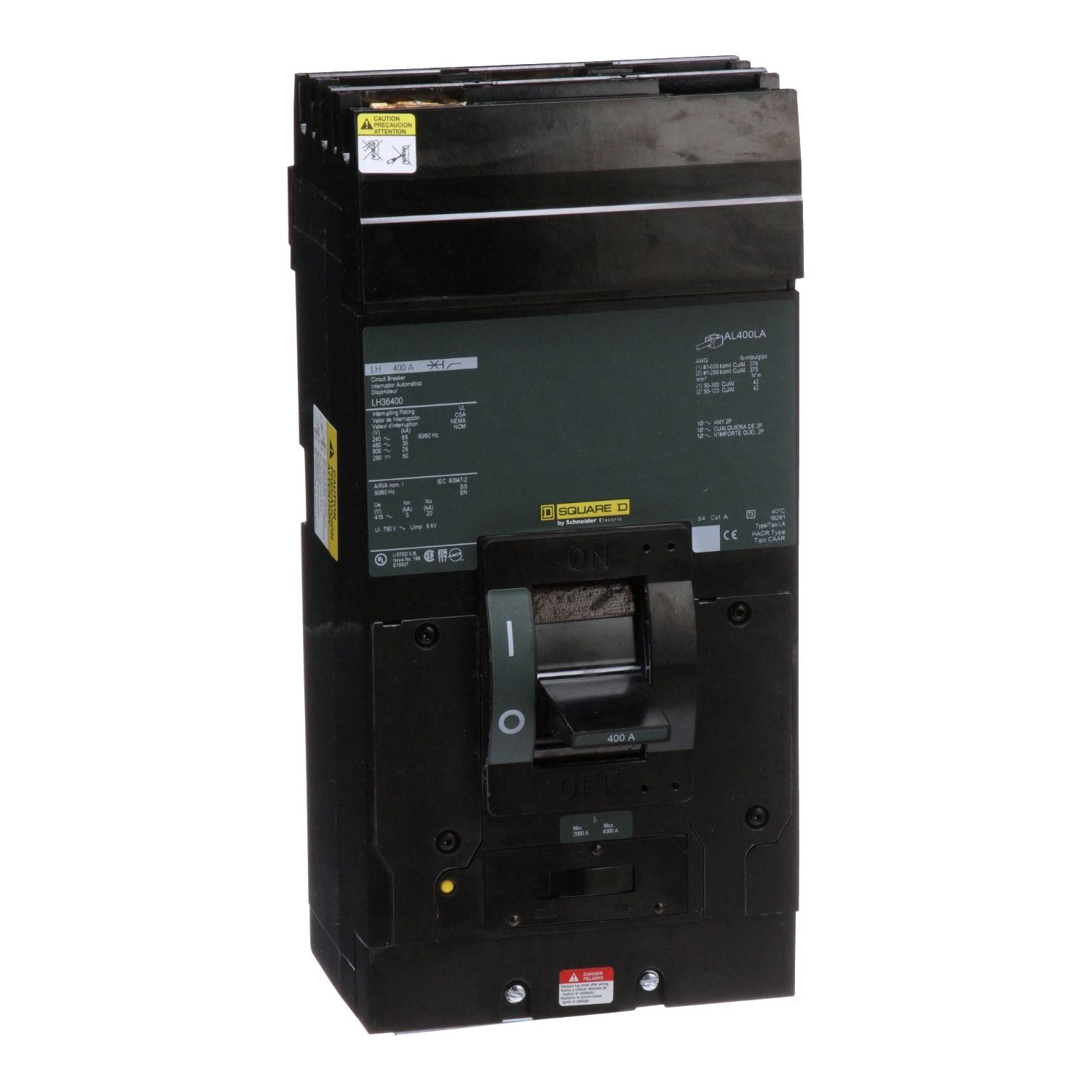

Picture of Circuit breaker, LH, I-Line mount, 400A, 3 pole, 25kA, 600VAC, thermal magnetic
SKU:

LH36400

Circuit breaker, LH, I-Line mount, 400A, 3 pole, 25kA, 600VAC, thermal magnetic

$49,243.04 INC GST
Available for Shipping : 23-Apr-2025
Circuit breaker, LH, I-Line mount, 400A, 3 pole, 25kA, 600VAC, thermal magnetic
  • Thermal magnetic protection up to 400A at 600VAC
  • Interrupting rating of 25kA at 600VAC
  • LH circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole
  • I-Line on the line side and lugs on the load side
  • Complies with UL, CSA, and IEC standards
Be the first to review this product
Manufacturer: Square D
Catalogue
Instruction sheet
User guide
Product environmental
Product Page Link
Product Data Sheet
The PowerPact™ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. L-frame circuit breakers are available with MICROLOGIC electronic trip units only. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Circuit breakers rated for 100% operation are available but require specially-designed enclosures and 194°F (90°C) rated wire. Devices with the MICROLOGIC electronic trip unit provide adjustable protection settings for greater system flexibility In addition to electronic protection, MICROLOGIC trip units allow users to monitor both energy and power. PowerPact H-, J-, and L-frame circuit breakers offer high performance and a wide range of interchangeable trip units to protect most applications. Electronic trip units provide highly accurate protection with wide setting ranges and can integrate measurement, metering and communication functions. This PowerPact circuit breaker,is a 400A, and is a 3-pole with a breaking capacity of 35kA@480VAC rated operatiuonal voltage. With a magnetic hold current of 2000A and a magnetic tripping current of 4000A. This breaker has a thermal-magnetic trip unit technology. This unit mount breaker copmplies to UL, CSA standards. Dinemsions for this product are 11 in (H)<6 in (W), 5.84 in (D), and an ambient temperature rating of40 °C.

Products specifications

Attribute name Attribute value
Main
Product or component type circuit breaker
Trip unit technology thermal-magnetic
Complementary
Depth 4 in
Width 6 in
[In] rated current 400 A
Poles description 3P
Mounting mode I-Line
Circuit breaker application HACR rated
Magnetic hold current 2000 A
Electrical connection I-Line connection, line, lugs, load
Magnetic tripping current 4000-4000 A
Breaking capacity code H
Height 12.5 in
Terminal identifier AL400LA
Environment
Product certifications CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 23.622 cm
Package 1 Width 29.718 cm
Package 1 Length 44.45 cm
Package 1 Weight 8.29 kg
Unit Type of Package 2 2
Number of Units in Package 2 32
Package 2 Height 107.95 cm
Package 2 Width 101.6 cm
Package 2 Length 121.92 cm
Package 2 Weight 276.238 kg
