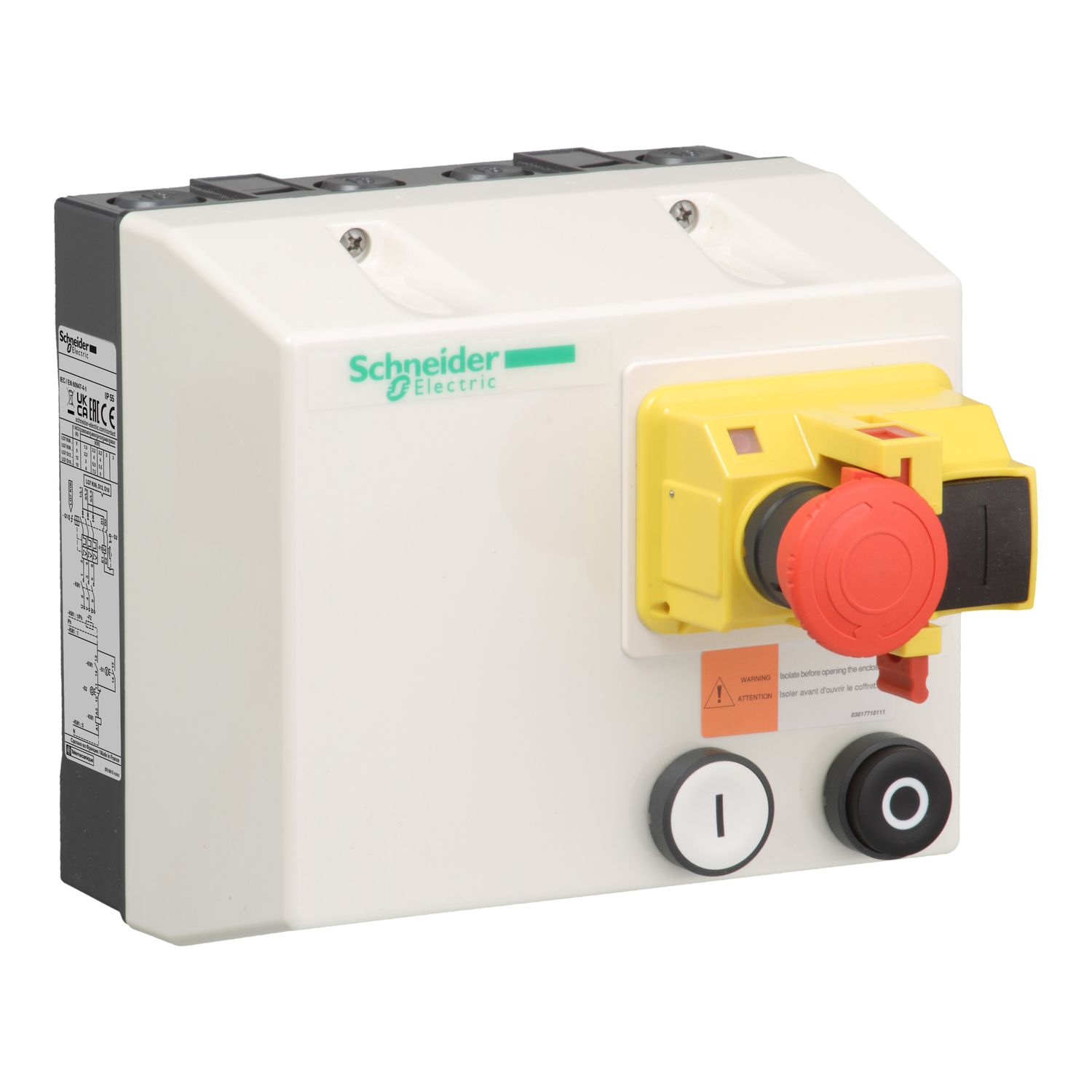

Picture of Enclosed DOL starter,TeSys LJ,2.5-4A,24V AC coil,including 1 LC1K,GV2ME,with integral transformer,2 pushbuttons
SKU:

LJ7K06Q708

Enclosed DOL starter,TeSys LJ,2.5-4A,24V AC coil,including 1 LC1K,GV2ME,with integral transformer,2 pushbuttons

$928.39 INC GST
Available for Shipping : 29-May-2025
Product Selector
Enclosed DOL starter,TeSys LJ,2.5-4A,24V AC coil,including 1 LC1K,GV2ME,with integral transformer,2 pushbuttons
  • Compact space saving design
  • Safety guarantee with padlockable pushbutton acting directly on circuit breaker
  • Easy to use with prewired control circuit
  • Green Premium compliant
  • Suitable for harsh environment with high waterproof and dustproof ability
  • Reliable complying with IEC 60204-1 “Safety of machinery” standards
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
End of life manual
Product environmental
Product Page Link
Product Data Sheet
TeSys enclosed starter with contactor and thermal magnetic circuit breaker, for control of 3-phase motors 1.5kW@400V AC-3 in non reversing safety applications. Polycarbonate enclosure for surface mounting with screw fixing, 2 knock-outs for cable glands on top and bottom, ensuring IP55 protection. Equipped with a white pushbutton Start (I), a black pushbutton Stop (O), and a lockable emergency pushbutton Stop (mushroom head 1/4 turn) acting mechanically on the circuit breaker. It includes a control transformer 400/24V 50/60Hz with the primary connected between the power phases to supply the control circuit of a contactor LC1K with an isolated 24V 50/60Hz, and a thermal magnetic circuit breaker GV2ME with thermal setting range 2.5-4A, It conforms to IEC 60204-1 and IEC 60947-4-1, Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LJ7K
Device application safety
Range TeSys
Motor power kW 1.5 kW at 380/400 V AC 50 Hz
Control type mushroom head push-button emergency stop red, push-button stop black O, push-button start white I
Utilisation category AC-3
Device composition circuit-breaker, control transformer, contactor
Product name TeSys LJ
Product or component type enclosed DOL starter
Thermal protection adjustment range 2.5-4 A
[Uc] control circuit voltage 24 V AC 50/60 Hz
Complementary
Compatibility code LJ7K
Height 165 mm
Depth 177 mm
Width 175 mm
Cable entry number 4 2 Pg 13 + 2 Pg 16 bottom, 4 2 Pg 13 + 2 Pg 16 top
Net weight 2.27 kg
Environment
IP degree of protection IP55 conforming to IEC 60529
Environmental characteristic standard environment
IK degree of protection IK07 conforming to IEC 60529
Material polycarbonate
Standards IEC 60204-1, IEC 60947-4-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 21.000 cm
Package 1 Width 22.800 cm
Package 1 Length 25.600 cm
Package 1 Weight 2.331 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 77.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 36.496 kg
