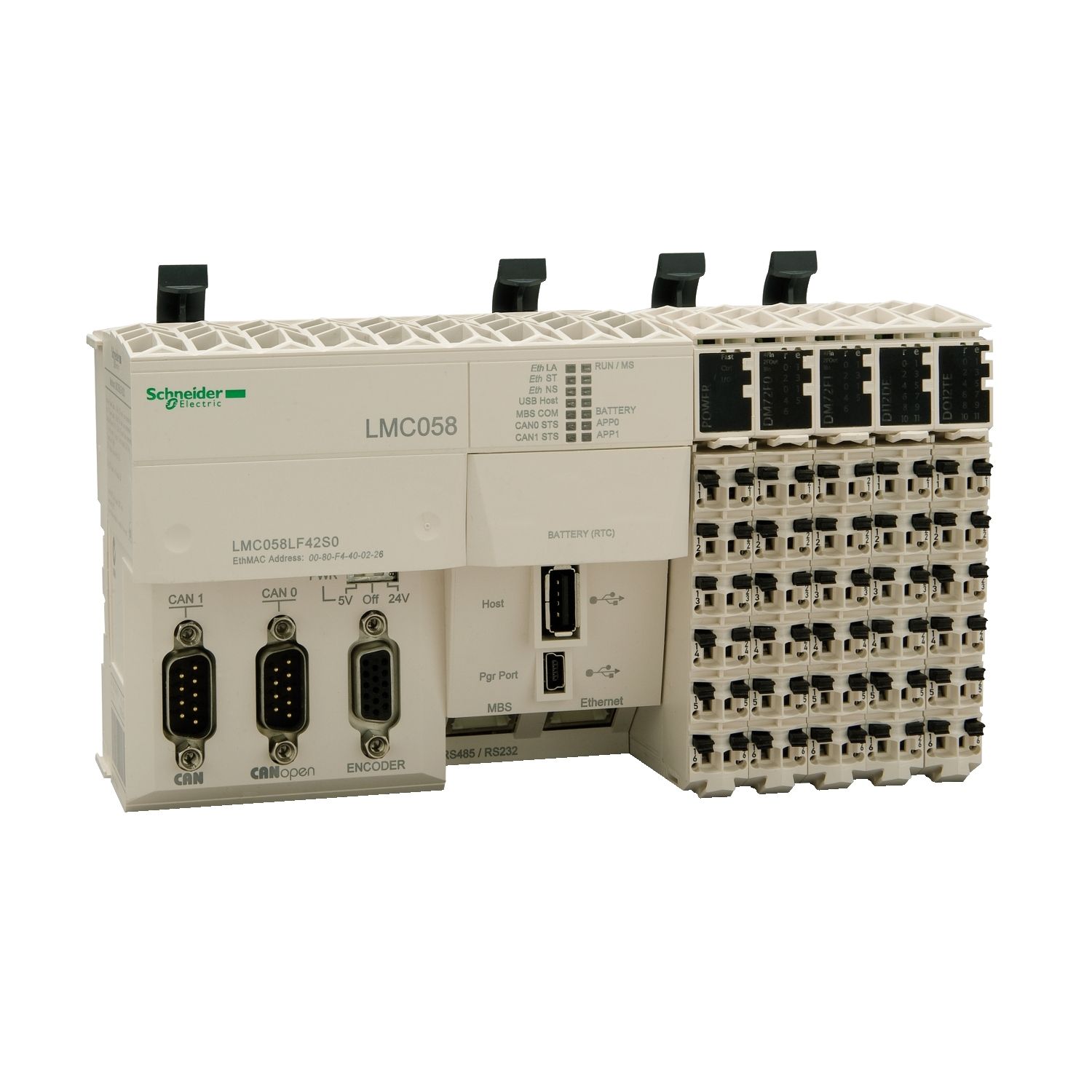

Picture of compact base - 42 I/O - 24 V DC supply
SKU:

LMC058LF42

compact base - 42 I/O - 24 V DC supply

Please Contact Sales to buy this Product. click here
compact base - 42 I/O - 24 V DC supply
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Declaration of conformity
Catalogue
End of life manual
CAD
User guide
Product Page Link
Product Data Sheet
This product is part of the Modicon LMC058 range, an offer of motion controllers for coordinated, synchronised and interpolated motion control. This motion controller provides 42 discrete I/Os and 3V CR2477M lithium battery. It is a compact base with a rated supply voltage of 24V DC and a rated current of 0.04A for embedded expert modules power, 10A for I/O power segment, 0.28A for main supply. It provides 26 totally discrete inputs, 10 for fast input, 12 for input, 4 for regular input and 16 totally discrete outputs, 12 for outputs, 4 for fast outputs. It supports 128MB flash and 64MB RAM memory. It is an IP20 rated product. Its dimensions are 175mm (Width) x 85mm (Depth) x 99mm (Height). It weighs 0.55kg. This product is certified by CE, CULus, CSA, C-Tick and GOST-R. It meets UL 508, IEC 61131-2, CSA C22.2 No 213 and CSA C22.2 No 142 standards. Compact and totally expandable, the Modicon Motion Controllers offer performant solutions in terms of motion control for synchronized axis, speed control, high speed counting and communication networks for machine builders. A full range of scalable controllers to design all your applications, thanks to a single software suite, SoMachine, including the same Motion Libraries based on PLCopen, Embedded I/O and numerous field buses.

Products specifications

Attribute nameAttribute value
Main
Discrete I/O number42
Range of productModicon LMC058
Product specific application-
Battery type3 V CR2477M lithium battery
Product or component typemotion controller
Complementary
Insulationnon-insulated between channels, between channels and internal logic at 500 V AC
Discrete input number4 for regular input, 12 for input, 10 for fast input
Battery life1.5 year(s)
Supply voltage limits20.4-28.8 V
Discrete output voltage24 V DC
Configurable filtering time4 ms for fast input/regular input and fast output, 12 ms for fast input/regular input and fast output, 1.5 ms for fast input/regular input and fast output, 0 ms for fast input/regular input and fast output
Voltage state 0 guaranteed<= 5 V for regular input, <= 5 V for fast output, <= 5 V for fast input
Discrete output current4 mA for fast output
MarkingCE
Transmission rate800 kbit/s for bus length of 25-25 m for CANopen, 500 kbit/s for bus length of 100-100 m for CANopen, 50 kbit/s for bus length of 1000-1000 m for CANopen, 250 kbit/s for bus length of 250-250 m for CANopen, 20 kbit/s for bus length of 2500-2500 m for CANopen, 125 kbit/s for bus length of 500-500 m for CANopen, 1000 kbit/s for bus length of 4-4 m for CANopen, 10 kbit/s for bus length of 5000-5000 m for CANopen
Discrete output number4 fast output, 12 output
Discrete output logicsource
Height99 mm
Maximum cable distance between devices<30 m for fast input
Data backed upbattery variables of type retain and retain persistent
Counting input number8 counting input(s) at 200 kHz
[Us] rated supply voltage24 V DC for embedded expert modules power
Depth85 mm
Realtime clockwith user calibration clock, clock drift <= 6 s/month, without any user calibration clock, clock drift < 30 s/month at 25-25 °C
Width175 mm
Discrete input current4 mA for regular input, 4 mA for fast input
Peak current100 kA (duration = <= 70 s) for main supply, 1.2 A (duration = > 70 s) for main supply, 50 kA (duration = <= 150 s) for embedded expert modules power, 25 kA (duration = <= 500 s) for I/O power segment
Output voltage limits19.2...28.8 V
Memory type64 MB RAM, 128 MB flash
Voltage state 1 guaranteed>= 15 V for regular input, >= 15 V for fast output, >= 15 V for fast input
Net weight0.55 kg
Local signalling1 LED red for APP1, 1 LED per channel for APP0, 1 LED green/yellow for MBS COM, 1 LED green/red for CAN1 STS, 1 LED for CAN0 STS
Power consumption in W13.03 W
Discrete input voltage typeDC
Mounting supportsymmetrical DIN rail
Integrated connection type1 isolated serial link with USB type A connector, transmission rate: 480 Mbit/s, 1 isolated serial link with mini B USB connector, transmission rate: 480 Mbit/s, 1 isolated serial link with female RJ45 connectorEthernet Modbus TCP/IP with slave, physical interface: 10BASE-T/100BASE-TX, 1 encoder with female SUB-D 15 connector, 1 CAN port with male SUB-D 9 connectorCANopen with master, 1 CAN port with male SUB-D 9 connectorCANmotion bus or CANopen with master, 1 isolated serial link with female RJ45 connectorModbus with master/slave RTU/ASCII or character mode ASCII, physical interface: RS232/RS485, transmission rate: 300...115200 bps
Discrete input voltage24 V
[In] rated current10 A for I/O power segment, 0.28 A for main supply, 0.04 A for embedded expert modules power
Input impedance6 kOhm for regular input, 6 kOhm for fast input
Anti bounce filtering2 µs...4 ms configurable fast input/regular input and fast output
Discrete input logicsource for input, sink for regular input, sink for fast input
Environment
Relative humidity5-95 % without condensation
Ambient air temperature for storage-25-70 °C
Pollution degree2 conforming to IEC 60664
Disturbance radiated/conductedCISPR 11
IP degree of protectionIP20 conforming to IEC 61131-2
Electromagnetic compatibilityconducted and radiated emissions conforming to CISPR 11, conducted RF disturbances conforming to IEC 61000-4-6, surge immunity test - test level: 1 kV (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 0.5 kV (differential mode) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-4, susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 1 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 4 kV (on air) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (on contact) conforming to IEC 61000-4-2
Ambient air temperature for operation0-50 °C (vertical installation), 0-60 °C with derating factor (horizontal installation), 0-55 °C without derating (horizontal installation)
Operating altitude0...2000 m
Shock resistance15 gn for 11 ms
Vibration resistance3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail
Storage altitude0-3000 m
StandardsIEC 61131-2, UL 508, CSA C22.2 No 213, CSA C22.2 No 142
Product certificationsGOST-R, CSA, cULus, C-Tick
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height13.200 cm
Package 1 Width15.500 cm
Package 1 Length31.500 cm
Package 1 Weight790.000 g
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height30.000 cm
Package 2 Width40.000 cm
Package 2 Length60.000 cm
Package 2 Weight5.695 kg
