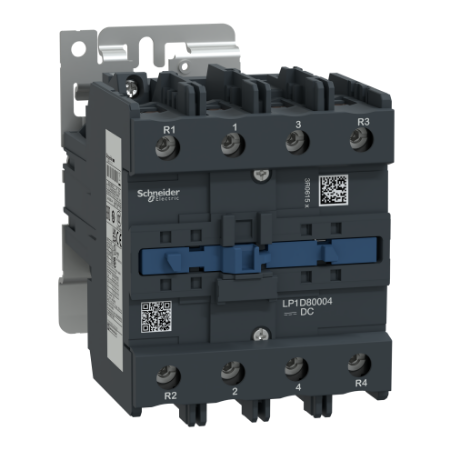

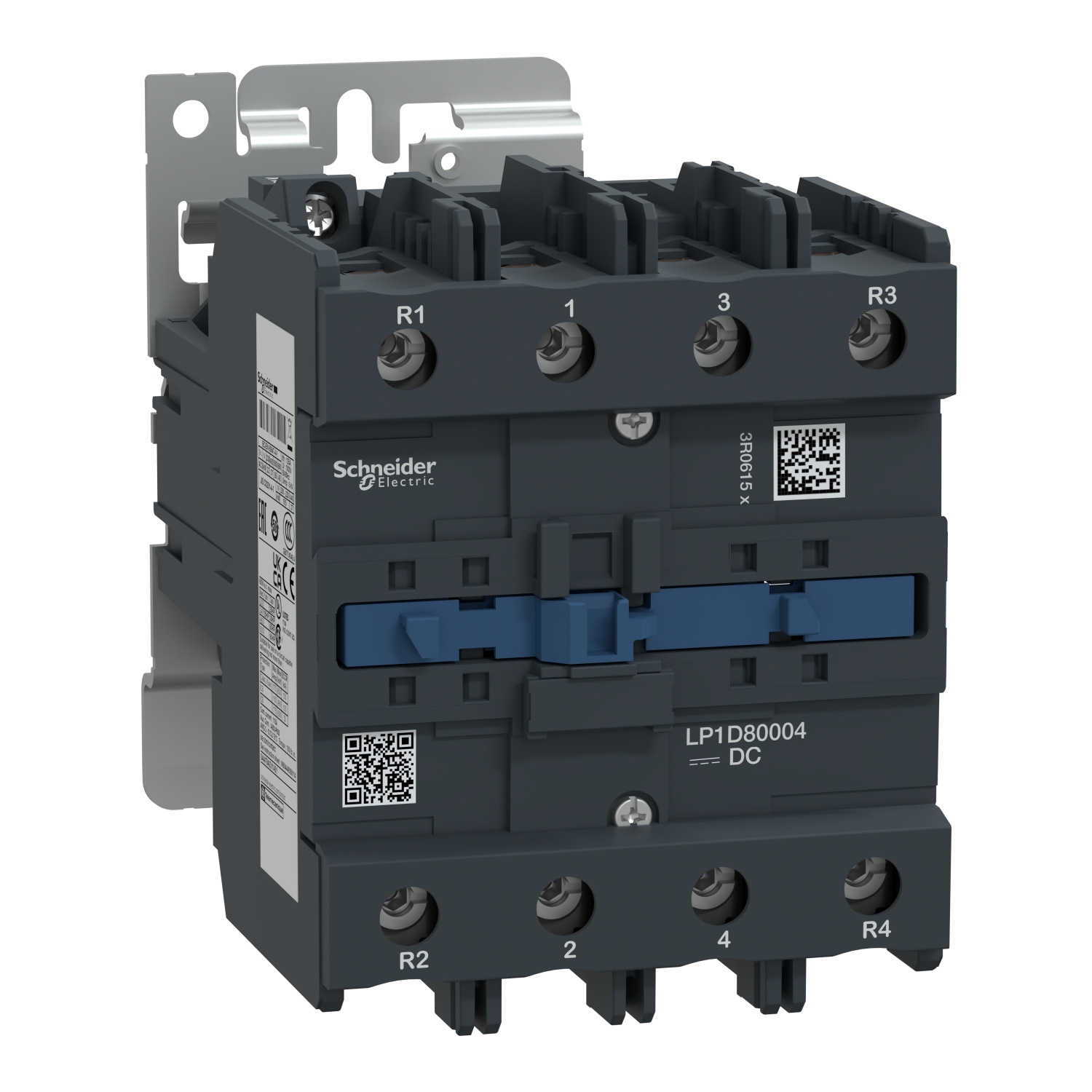

Picture of TeSys, Contactor, TeSys Deca, 4P(4NO), AC-1, 440V, 125A, 24V DC coil
SKU:

LP1D80004BW

TeSys, Contactor, TeSys Deca, 4P(4NO), AC-1, 440V, 125A, 24V DC coil

$2,548.64
Available for Shipping : 18-Dec-2024
Product Selector
TeSys, Contactor, TeSys Deca, 4P(4NO), AC-1, 440V, 125A, 24V DC coil
  • Designed to meet needs of demanding applications
  • Wide range of accessaries to satisfy different customer usage
  • Digital customer experience for technical documents
  • Easier to install and operate with multi-standard screws
  • Green Premium product
  • Multi sdandards certified makes it possible to wide application
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
TeSys Deca contactor, 4P(4NO) for category AC-1 applications up to 125A @440V. It provides with 24V DC wide range coil, with no auxiliary contacts, power and control connections by screw clamp terminals. It procures with 4 Mcycles mechanical durability and 0.8 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 96mm x 181mm (H x W x D), mounting on rail or plate. Multi standards certified(UL,LROS,DNV,GOST,RINA,CSA,CCC,BV,GL) and Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
[Ie] rated operational current 55 A (at <60 °C) at <= 400 V AC AC-4 for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category AC-4, AC-3e, AC-3, AC-1
[Uc] control circuit voltage 24 V DC
Device short name LP1D
Range TeSys
Range of product TeSys Deca
Poles description 4P
Product or component type contactor
Contactor application resistive load
[Ue] rated operational voltage power circuit: <= 300 V DC, power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code LP1D
Electrical durability 0.8 Mcycles 125 A AC-1 at Ue <= 440 V
Associated fuse rating 160 A gG at <= 690 V coordination type 2 for power circuit, 200 A gG at <= 690 V coordination type 1 for power circuit
Control circuit type DC wide range
Protective cover without
[Ui] rated insulation voltage power circuit: 1000 V conforming to IEC 60947-4-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified
Overvoltage category III
Coil technology without built-in suppressor module
Average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit
Power dissipation per pole 12.5 W AC-1
[Icw] rated short-time withstand current 990 A 40 °C - 1 s for power circuit, 640 A 40 °C - 10 s for power circuit, 320 A 40 °C - 1 min for power circuit, 135 A 40 °C - 10 min for power circuit
Mechanical durability 4 Mcycles
Tightening torque control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver pozidriv No 2, power circuit: 12 N.m - on connector hexagonal screw head 4 mm, power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Operating time 20...35 ms closing, 6...20 ms opening
Time constant 75 ms
Irms rated making capacity 1100 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947
Pollution degree 3
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits 1...1.2 Uc (55-70 °C):operational DC, 0.75...1.2 Uc (-40-55 °C):operational DC, 0.1...0.3 Uc (-40-70 °C):drop-out DC
[Ith] conventional free air thermal current 125 A (at 60 °C) for power circuit
Inrush power in W 22-22 W (at 20 °C)
Maximum operating rate 3600 cyc/h 60 °C
Connections - terminals control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-25 mm² - cable stiffness: solid, power circuit: connector 1 4-50 mm² - cable stiffness: solid, power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Pole contact composition 4 NO
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Hold-in power consumption in W 22-22 W at 20 °C
Contact compatibility M4
Mounting support plate, rail
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness shocks contactor closed (10 Gn for 11 ms) , shocks contactor open (8 Gn for 11 ms) , vibrations contactor closed (3 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
Standards UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height 127 mm
Permissible ambient air temperature around the device 60-70 °C with derating, -40-60 °C
Operating altitude 0...3000 m
Net weight 2.685 kg
Product certifications UKCA, UL, LROS (Lloyds register of shipping), GL, EAC, DNV, CSA, CCC, BV
IP degree of protection IP20 front face conforming to IEC 60529
Depth 181 mm
Width 96 mm
Flame retardance V1 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.000 cm
Package 1 Width 14.000 cm
Package 1 Length 20.500 cm
Package 1 Weight 2.677 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.604 kg
Unit Type of Package 3 3
Number of Units in Package 3 32
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 97.664 kg
