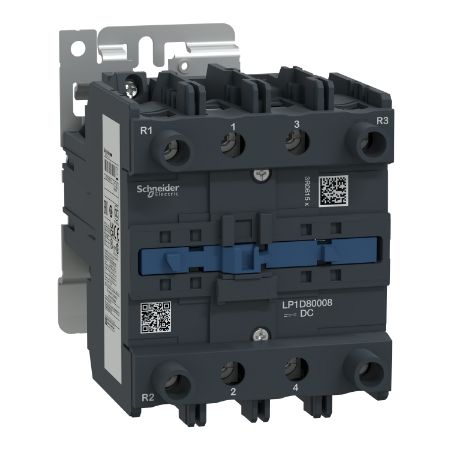

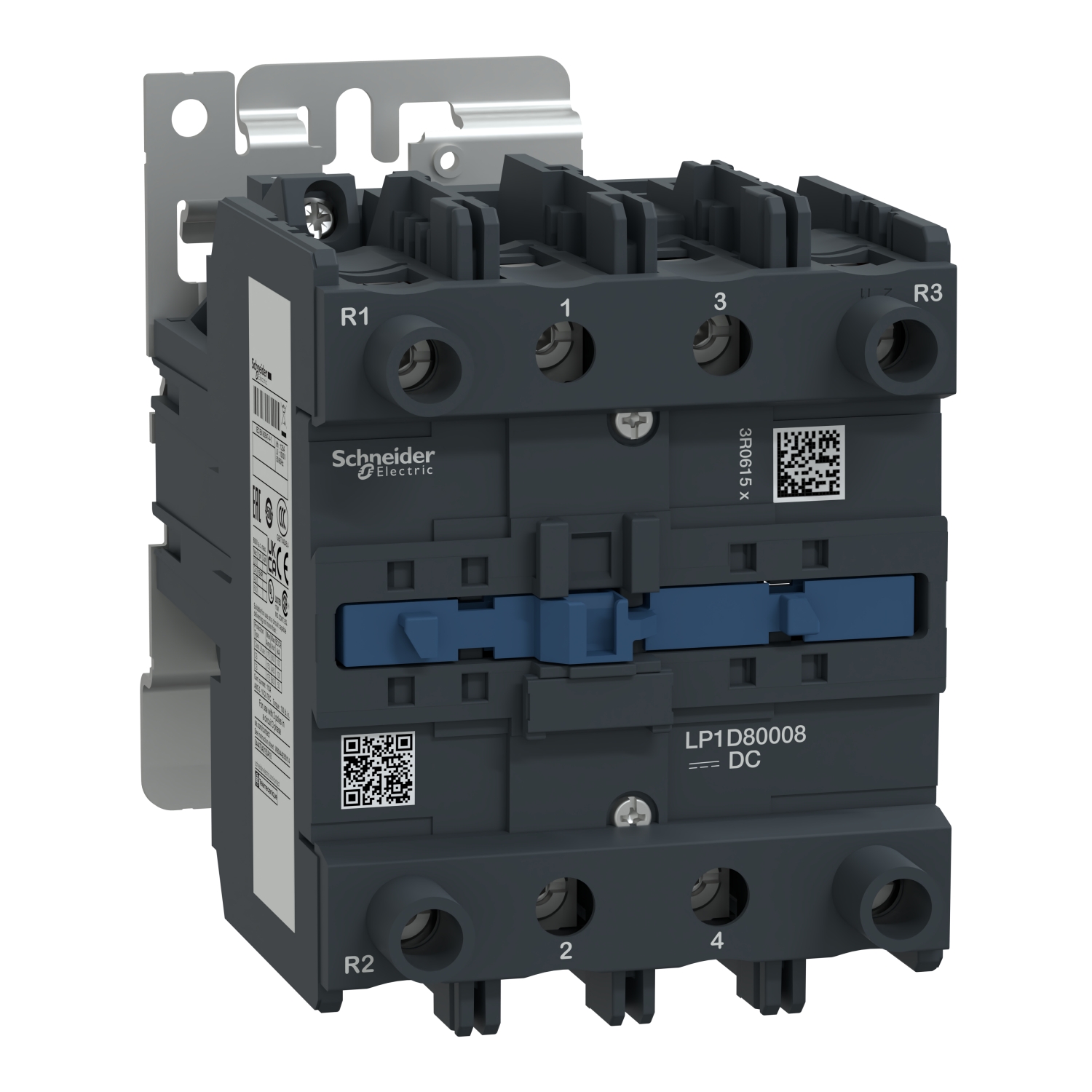

Picture of Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, 440V, 125A, 24V DC coil, screw clamp terminals
SKU:

LP1D80008BD

Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, 440V, 125A, 24V DC coil, screw clamp terminals

$1,207.25
Available for Shipping : 11-Dec-2024
Product Selector
Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, 440V, 125A, 24V DC coil, screw clamp terminals
  • Reliable short-circuit protection in industrial furnaces or for the heating of buildings
  • High making and breaking capacity
  • Wide range of working temperature
  • Simple and quick maintenance with compact size
  • Green Premium product
  • Multi sdandards certified makes it possible to wide application
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
TeSys Deca contactor, 4-pole (2NO+2NC), for non-inductive load applications up to 125A/1000V AC-1. It provides a 24V DC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (96mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, front mounting auxiliary contact blocks can be added (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
[Ie] rated operational current 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category AC-1
[Uc] control circuit voltage 24 V DC
Device short name LP1D
Range TeSys
Range of product TeSys Deca
Poles description 4P
Product or component type contactor
Contactor application resistive load
[Ue] rated operational voltage power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code LP1D
Electrical durability 0.8 Mcycles 125 A AC-1 at Ue <= 440 V
Associated fuse rating 160 A gG at <= 690 V coordination type 2 for power circuit, 200 A gG at <= 690 V coordination type 1 for power circuit
Control circuit type DC DC standard
Protective cover without
[Ui] rated insulation voltage power circuit: 1000 V conforming to IEC 60947-4-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified
Overvoltage category III
Coil technology without built-in suppressor module
Average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit
Power dissipation per pole 12.5 W AC-1
[Icw] rated short-time withstand current 990 A 40 °C - 1 s for power circuit, 640 A 40 °C - 10 s for power circuit, 320 A 40 °C - 1 min for power circuit, 135 A 40 °C - 10 min for power circuit
Mechanical durability 10 Mcycles
Tightening torque control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 12 N.m - on connector hexagonal screw head 4 mm, power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Operating time 20...35 ms closing, 6...20 ms opening
Time constant 75 ms
Irms rated making capacity 1100 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947
Pollution degree 3
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits 0.85...1.1 Uc (-40-55 °C):operational DC, 0.1...0.3 Uc (-40-55 °C):drop-out DC
[Ith] conventional free air thermal current 125 A (at 60 °C) for power circuit
Inrush power in W 22-22 W (at 20 °C)
Maximum operating rate 3600 cyc/h 60 °C
Connections - terminals control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-25 mm² - cable stiffness: solid, power circuit: connector 1 4-50 mm² - cable stiffness: solid, power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Pole contact composition 2 NO + 2 NC
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Hold-in power consumption in W 22-22 W at 20 °C
Contact compatibility M4
Mounting support rail, plate
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness shocks contactor closed (10 Gn for 11 ms) , shocks contactor open (8 Gn for 11 ms) , vibrations contactor closed (3 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
Standards UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height 127 mm
Permissible ambient air temperature around the device 60-70 °C with derating, -40-60 °C
Operating altitude 0...3000 m
Net weight 2.91 kg
Product certifications LROS (Lloyds register of shipping), BV, RINA, DNV-GL, CB, UKCA, EAC, CCC, CSA, UL
IP degree of protection IP20 front face conforming to IEC 60529
Depth 196 mm
Width 96 mm
Flame retardance V1 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 22.5 cm
Package 1 Width 14.8 cm
Package 1 Length 18.0 cm
Package 1 Weight 2.955 kg

Related products

Picture of TeSys; TeSys Deca, Auxiliary contact block, 2NC, front mounting, screw clamp terminals

TeSys; TeSys Deca, Auxiliary contact block, 2NC, front mounting, screw clamp terminals

LADN02
$46.04
View Detail
Picture of TeSys; TeSys Deca, Auxiliary contact block, 4NC, front mounting, screw clamp terminals

TeSys; TeSys Deca, Auxiliary contact block, 4NC, front mounting, screw clamp terminals

LADN04
$80.81
View Detail
Picture of TeSys; TeSys Deca, Auxiliary contact block, 1NO + 1NC, front mounting, screw clamp terminals

TeSys; TeSys Deca, Auxiliary contact block, 1NO + 1NC, front mounting, screw clamp terminals

LADN11
$34.85
View Detail
Picture of TeSys; TeSys Deca, Auxiliary contact block, 1NO + 3NC, front mounting, screw clamp terminals

TeSys; TeSys Deca, Auxiliary contact block, 1NO + 3NC, front mounting, screw clamp terminals

LADN13
$82.12
View Detail
Picture of TeSys; TeSys Deca, Auxiliary contact block, 2NO, front mounting, screw clamp terminals

TeSys; TeSys Deca, Auxiliary contact block, 2NO, front mounting, screw clamp terminals

LADN20
$45.96
View Detail
Picture of TeSys; TeSys Deca, Auxiliary contact block, 2NO + 2NC, front mounting, screw clamp terminals

TeSys; TeSys Deca, Auxiliary contact block, 2NO + 2NC, front mounting, screw clamp terminals

LADN22
$70.92
View Detail

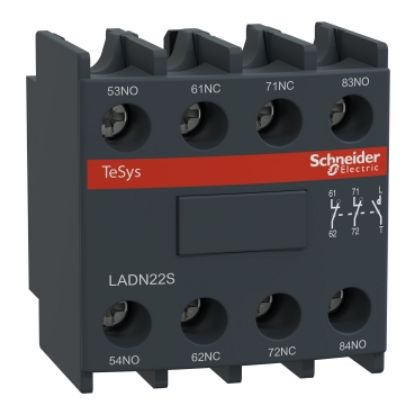

Picture of Auxiliary contact block, TeSys Deca, 2NO+2NC, front mounting, screw clamp terminals, red front face
