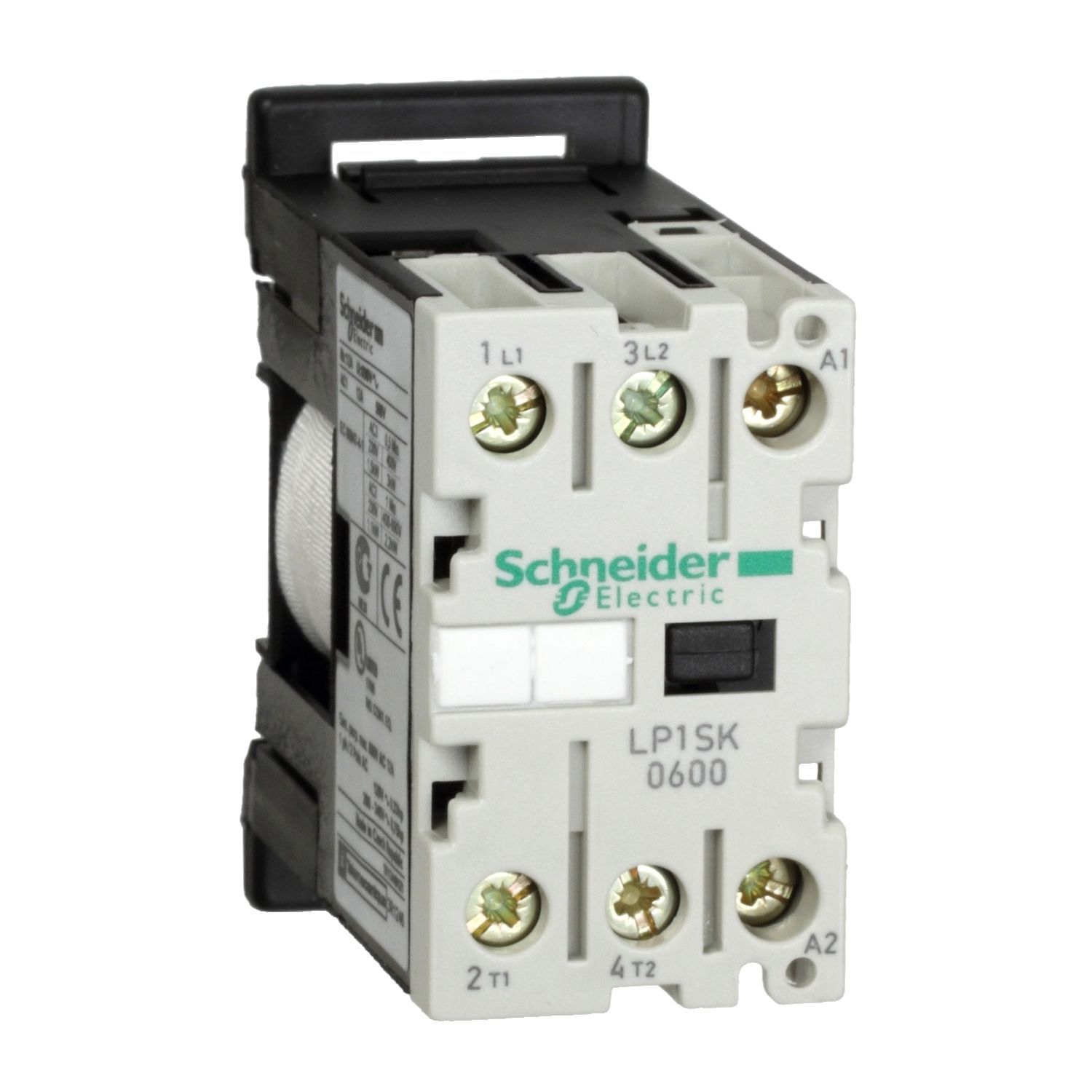

Picture of TeSys SK - mini contactor - 2P (2 NO) - AC-1 - 690 V 12 A - 48 V DC coil
SKU:

LP1SK0600ED

TeSys SK - mini contactor - 2P (2 NO) - AC-1 - 690 V 12 A - 48 V DC coil

$69.44
Available for Shipping : 10-Dec-2024
TeSys SK - mini contactor - 2P (2 NO) - AC-1 - 690 V 12 A - 48 V DC coil
  • Good adaptability: possible to insert contact block and suppressor module
  • High durability & stable performance: up to 1200 cycles/hour for operating rates
  • Reliable in high and low temperature environment
  • Modularity design and compact size for easy maintenance, save time and space on installation
  • Wide application with multi standards certifications
  • Compliant with Green Premium
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Instruction sheet
Product environmental
Catalogue
Product Page Link
Product Data Sheet
TeSys SK mini-contactor, 2 poles (2NO), for non inductive load applications up to 12A/690V AC-1, and for 1-phase motor control applications up to 6A/690V AC-3 (for 3-phase motors an add-on contact block LA1SK must be mounted on contactor). It provides a 48V DC control circuit with no inrush consumption, connection by screw clamp terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Add-on contact blocks LA1SK (power pole, instantaneous auxiliary contacts) and suppressor modules LA4SK available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
[Icw] rated short-time withstand current 50 A 55 °C for power circuit
Device short name LP1SK
[Ui] rated insulation voltage 690 V conforming to CSA C22.2 No 14, 690 V conforming to UL 508, 690 V conforming to BS 5424, 690 V conforming to VDE 0110 group C, 690 V conforming to IEC 60947
Operating time 8...12 ms coil energisation and NO closing, 4...6 ms coil de-energisation and NO opening
Poles description 2P
Mechanical durability 10 Mcycles
Tightening torque 0.8 N.m - on connector - with screwdriver pozidriv No 1
Maximum operating rate 1200 cyc/h
[Ie] rated operational current 12 A (at <55 °C) AC AC-1
Utilisation category AC-1
Pole contact composition 2 NO
Range TeSys
Connections - terminals power circuit: connector 2 cable(s) 1.5-4 mm²solid, power circuit: connector 2 cable(s) 0.35-2.5 mm²flexible without cable end, power circuit: connector 2 cable(s) 0.35-1.5 mm²flexible with cable end, power circuit: connector 1 cable(s) 1.5-6 mm²solid, power circuit: connector 1 cable(s) 0.5-6 mm²flexible without cable end, power circuit: connector 1 cable(s) 0.35-6 mm²flexible with cable end
Associated fuse rating 16 A gI at <= 440 V for power circuit conforming to IEC 60947
Irms rated making capacity 66 A at 690 V AC conforming to NF C 63-110, 66 A at 690 V AC conforming to IEC 60947
Product or component type mini contactor
Rated breaking capacity 52 A at <= 400 V for power circuit conforming to IEC 60947, 52 A at <= 400 V for power circuit conforming to NF C 63-110
Contactor application resistive load
Control circuit type DC standard
Mounting support rail
Standards CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1
[Ith] conventional free air thermal current 12 A (at 55 °C) for power circuit
Range of product TeSys SK
Average impedance 4 mOhm - Ith 12 A 50 Hz
[Ue] rated operational voltage power circuit: 690 V AC 50/60 Hz
[Uc] control circuit voltage 48 V DC
Product certifications cULus, EAC, UKCA, CE, CB Scheme
Complementary
Heat dissipation 2.2-2.2 W
Compatibility code LP1SK
Inrush power in W 2.2-2.2 W (at 20 °C)
Hold-in power consumption in W 2.2-2.2 W at 20 °C
Control circuit voltage limits drop-out: 0.1...0.75 Uc (at <50 °C), operational: 0.85...1.1 Uc (at <50 °C)
Environment
Depth 55.5 mm
Width 27 mm
Operating altitude 2000 m without derating
IP degree of protection IP2X conforming to VDE 0106
Protective treatment TC conforming to DIN 50015, TC conforming to IEC 60068
Ambient air temperature for storage -50-70 °C
Net weight 0.132 kg
Ambient air temperature for operation -20-50 °C
Height 56 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.7 cm
Package 1 Width 5.9 cm
Package 1 Length 3.3 cm
Package 1 Weight 132.0 g

Related products

Picture of TeSys; TeSys SK, suppressor module, diodes, 24...250 V DC

TeSys; TeSys SK, suppressor module, diodes, 24...250 V DC

LA4SKC1U
$31.98
View Detail
Picture of TeSys; TeSys SK, suppressor module, varistor, 24...48 V AC/DC

TeSys; TeSys SK, suppressor module, varistor, 24...48 V AC/DC

LA4SKE1E
$31.98
View Detail
Picture of TeSys; TeSys SK, suppressor module, varistor, 110...250 V AC/DC

TeSys; TeSys SK, suppressor module, varistor, 110...250 V AC/DC

LA4SKE1U
$15.70
View Detail
