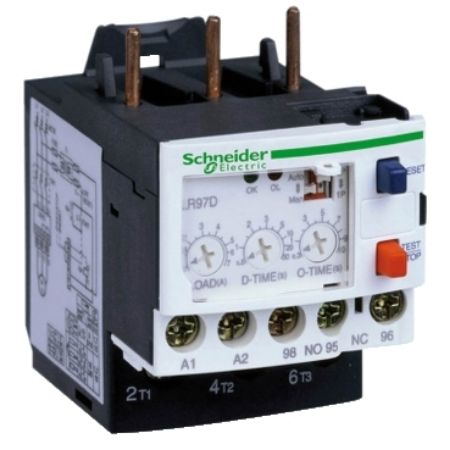

Picture of Electronic overcurrent relay, TeSys LR97D, 200 to 240VAC, 0.3 to 1.5A, 1C/O
SKU:

LR97D015M7

Electronic overcurrent relay, TeSys LR97D, 200 to 240VAC, 0.3 to 1.5A, 1C/O

$240.47
Electronic overcurrent relay, TeSys LR97D, 200 to 240VAC, 0.3 to 1.5A, 1C/O
  • Settings can be locked by sealing the transparent cover
  • It provides 3 dials to adjust the protection
  • Compact (45 mm wide) for easy integration into motor starter functions
  • Reduces production loss and associated downtime
  • Simple setting and signaling features
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 13-Oct-2024
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
TeSys LR97D electronic overcurrent relay, 1.5A/690V, to be supplied with 200-240V AC, for protection of motors with a rated current 0.3-1.3A. It provides 3 dials to adjust the protection, LOAD (0.3-1.5A) for the overcurrent level, O-TIME (0.3-10sec) for the acceptable duration of the overcurrent, D-TIME (0.5-30sec) for the starting duration. In addition, the device trips when the current is higher than 3 x LOAD during more than 0.5sec in steady state and if there is a missing phase during more than 3sec. The settings include selectors for 1-phase/3-phase motors and manual/automatic reset, and the device has a reset button, a test/stop button, 2 LED indicators (Run/Trip), 2 auxiliary contacts 1NO/NC for fault signalling. Settings can be locked by sealing the transparent cover. For direct attachement to the bottom terminals of a 3-pole contactor LC1D09-D38, with screw clamp terminals on bottom, the separate mounting from the contactor is possible using the terminal block LAD7B106 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC, EAC), compliant RoHs/Reach.

Products specifications

Attribute nameAttribute value
Main
Device short nameLR97
Product compatibilityLC1D09...D38
Quantity per setset of 10
[Us] rated supply voltage200...240 V AC
RangeTeSys
Product nameTeSys D
Product or component typeelectronic overcurrent relay
Relay applicationlocked rotor, mechanical jamming I > 3 x Isetting, overload Imax > Isetting, sensitivity to phase failure
Network typeAC
Thermal protection adjustment range0.3-1.5 A
[Ue] rated operational voltage690 V AC 50/60 Hz for power circuit conforming to IEC 60947-4-1, 600 V AC 50/60 Hz for power circuit conforming to UL, 600 V AC 50/60 Hz for power circuit conforming to CSA
Complementary
Compatibility codeLR97
Tripping threshold0.3...1.3 A
Surge withstand6 kV conforming to IEC 61000-4-5
Connections - terminalscontrol circuit: lug-clamp 1 x 1-25 mm²flexible with cable end, control circuit: cable 2 x 1-25 mm²flexible without cable end, control circuit: cable 2 x 1-25 mm²flexible with cable end, power circuit: lug-clamp 1 x 1.5-10 mm²flexible without cable end, power circuit: lug-clamp 1 x 1-4 mm²flexible with cable end, power circuit: cable 1 x 1.5-10 mm²flexible without cable end, power circuit: cable 1 x 1-4 mm²flexible with cable end, control circuit: cable 1 x 1-25 mm²flexible without cable end, control circuit: lug-clamp 2 x 1-25 mm²flexible without cable end, control circuit: lug-clamp 2 x 1-25 mm²flexible with cable end, control circuit: lug-clamp 1 x 1-25 mm²flexible without cable end, control circuit: cable 1 x 1-25 mm²flexible with cable end
Protection typegG fuse 3 A - for control circuit, GB2 circuit breaker 3 A - for control circuit, BS fuse 3 A - for control circuit
Phase failure sensitivity< 3 s
[Ith] conventional free air thermal current3 A for control circuit
Height67.5 mm
Maximum power70 VA at 24 V AC conforming to IEC 60947, 360 VA at 220 V AC conforming to IEC 60947, 360 VA at 110 V AC conforming to IEC 60947, 140 VA at 48 V AC conforming to IEC 60947, 55 W at 48 V DC conforming to IEC 60947, 55 W at 24 V DC conforming to IEC 60947, 28 W at 220 V DC conforming to IEC 60947, 28 W at 110 V DC conforming to IEC 60947
Depth67.5 mm
Width45 mm
Mounting supportrail, direct on contactor
Contacts type and composition1 C/O
[Ui] rated insulation voltagepower circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V conforming to UL, power circuit: 600 V conforming to CSA
[Uimp] rated impulse withstand voltage6 kV
Net weight0.172 kg
Signalling function2 LEDs
Resetmanual reset, electrical by interruption of power supply for minimum 0.1 s, automatic reset 120 s fixed
Tightening torquepower circuit: 2 N.m on cable, control circuit: 0.6...1.2 N.m on lug-clamp
Network frequency50...60 Hz
Time range0.5..30 s - D-time knob, 0.3...10 s - O-time knob, 0.2...10 s - O-time knob
Environment
Resistance to fast transients2 kV
Fire resistance850 °C conforming to IEC 60695-2-1
Resistance to electrostatic discharge8 kV in air, 6 kV in indirect mode
Protective treatmentTH conforming to IEC 60068
Ambient air temperature for storage-30-80 °C
IP degree of protectionIP20 conforming to IEC 60529
Shock resistance15 gn 11 ms conforming to IEC 60068-2-7
Ambient air temperature for operation-25-60 °C conforming to IEC 60947-4-1
Disturbance radiated/conductedclass A conforming to EN 55011, 10 V conforming to EN 61000-4-6
Operating altitude2000 m
Vibration resistance4 gn conforming to IEC 60068-2-6
Dielectric strength2 V 50 Hz conforming to IEC 60255-5
Resistance to radiated fields10 V/m level 3
StandardsIEC 60947, IEC 60255-6
Product certificationsGOST, UL, CSA
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.500 cm
Package 1 Width7.200 cm
Package 1 Length7.700 cm
Package 1 Weight182.000 g
Unit Type of Package 22
Number of Units in Package 224
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight4.798 kg
