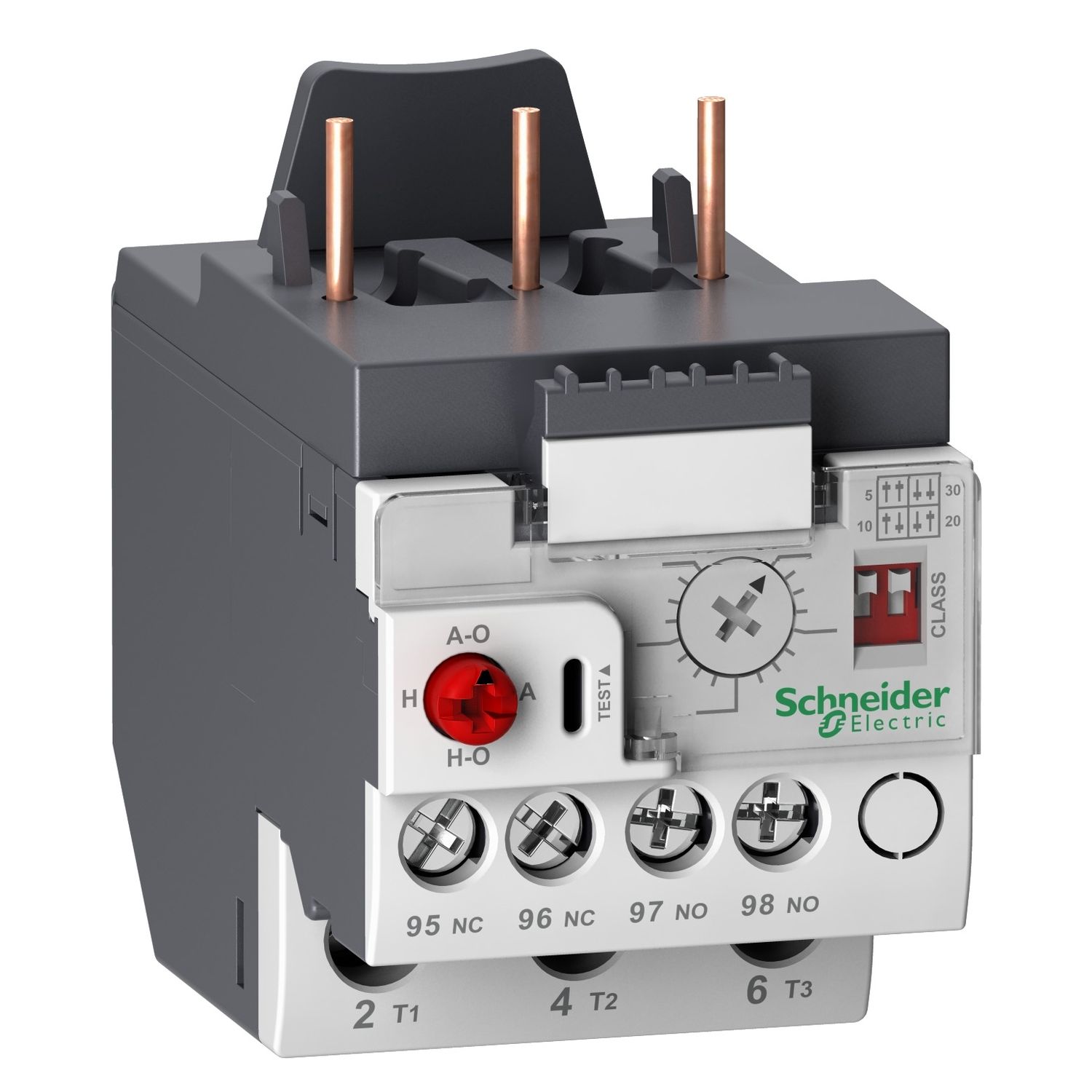

Picture of TeSys; TeSys LRD, electronic thermal overload relay, 3P, 0.1...0.5 A
SKU:

LR9D01

TeSys; TeSys LRD, electronic thermal overload relay, 3P, 0.1...0.5 A

$150.66
Available for Shipping : 05-Dec-2024
Product Selector
TeSys; TeSys LRD, electronic thermal overload relay, 3P, 0.1...0.5 A
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
Instruction sheet
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
TeSys LR9D electronic overload relay, 0.5A/690V, thermal setting range 0.1-0.5A, selectable tripping class 5-10-20-30, for protection of 3-phase motors up to 0.12kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, buttons for test, stop and reset as well as manual-automatic reset selector, dipswitches for tripping class selection, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from contactor, with use of the terminal block LAD7B205 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LR9D
Product compatibility LC1D18, LC1D38, LC1D12, LC1D32, LC1D25, LC1D09
Mounting support rail, with specific accessories, plate, with specific accessories, under contactor
Range TeSys
Thermal overload class class 5…30
Product name TeSys LRD
Product or component type electronic thermal overload relay
Relay application motor protection
Power consumption in W 300 mW
Thermal protection adjustment range 0.1-0.5 A
Complementary
Depth 79.9 mm
Width 45 mm
Control type white dial: full-load current adjustment, red knob: automatic reset, white 2 microswitches: adjustable trip class, red push-button: stop and manual reset
Tripping threshold 1.25 In conforming to IEC 60947-4-1
[Ui] rated insulation voltage signalling circuit: 690 V, power circuit: 1000 V
Connections - terminals power circuit: screw clamp terminals 1 cable 16-16 mm² - cable stiffness: solid or flexible - without cable end, control circuit: screw clamp terminals 1 cable 2.5-2.5 mm² - cable stiffness: solid or flexible - without cable end
[Uimp] rated impulse withstand voltage 6 kV
Net weight 0.18 kg
Associated fuse rating 5 A BS for signalling circuit, 5 A gG for signalling circuit
Electromagnetic compatibility immunity to fast transients: 2 kV conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference: 10 V/m conforming to IEC 61000-4-3, resistance to electrostatic discharge: 8 kV conforming to IEC 61000-4-2, surge withstand: 2 kV common mode conforming to IEC 61000-4-5
[Ue] rated operational voltage 660 V for signalling circuit, 690 V for power circuit
Phase failure sensitivity phase difference > 40% 3-3 s conforming to IEC 60947-4-1
Tightening torque power circuit: 3.1 N.m on screw clamp terminals, control circuit: 0.8 N.m on screw clamp terminals
[Ith] conventional free air thermal current 5 A for signalling circuit
Height 72.5 mm
Time range 1.5...4 min - automatic reset time
Environment
Operating altitude 2000 m without derating
IP degree of protection IP20 front face conforming to IEC 60529
Ambient air temperature for storage -55-80 °C
Dielectric strength 6 kV 50 Hz conforming to IEC 60255-5
Ambient air temperature for operation -25-70 °C conforming to IEC 60255-8
Standards GB/T 14048.5, GB/T 14048.4, CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1
Mechanical robustness shocks 11 ms: 15 gn conforming to IEC 60068-2-7, vibrations 10...150 Hz: 6 Gn conforming to IEC 60068-2-6
Product certifications CCC, CSA, UL, IECEE CB Scheme
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 7.5 cm
Package 1 Length 9.1 cm
Package 1 Weight 209.0 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.725 kg
Unit Type of Package 3 3
Number of Units in Package 3 480
Package 3 Height 50.0 cm
Package 3 Width 80.0 cm
Package 3 Length 60.0 cm
Package 3 Weight 121.86 kg

Related products

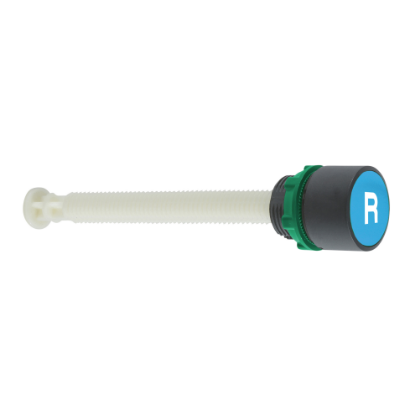

Picture of Pushs button reset for 17...120mm actuation distance, Harmony XB5, plastic, flush, blue, 22mm, marked R

Pushs button reset for 17...120mm actuation distance, Harmony XB5, plastic, flush, blue, 22mm, marked R

XB5AA86102
$23.99
View Detail

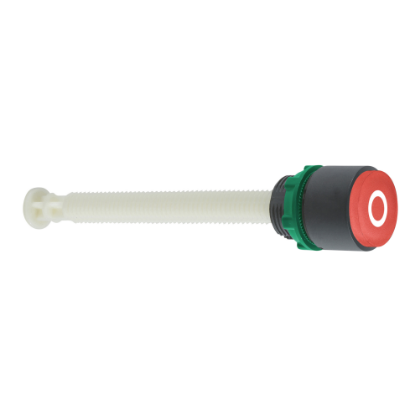

Picture of Manual overload reset push button, Harmony XB5, red projecting, 22mm, for 17...120 mm actuation distance
