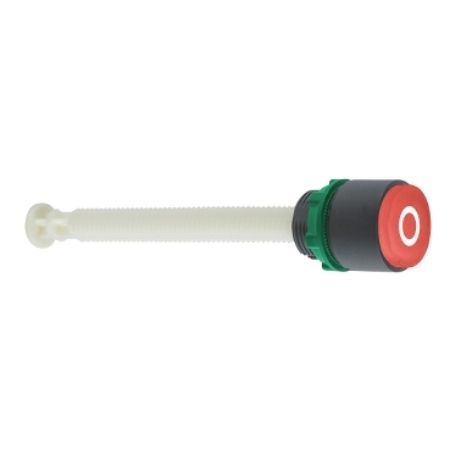

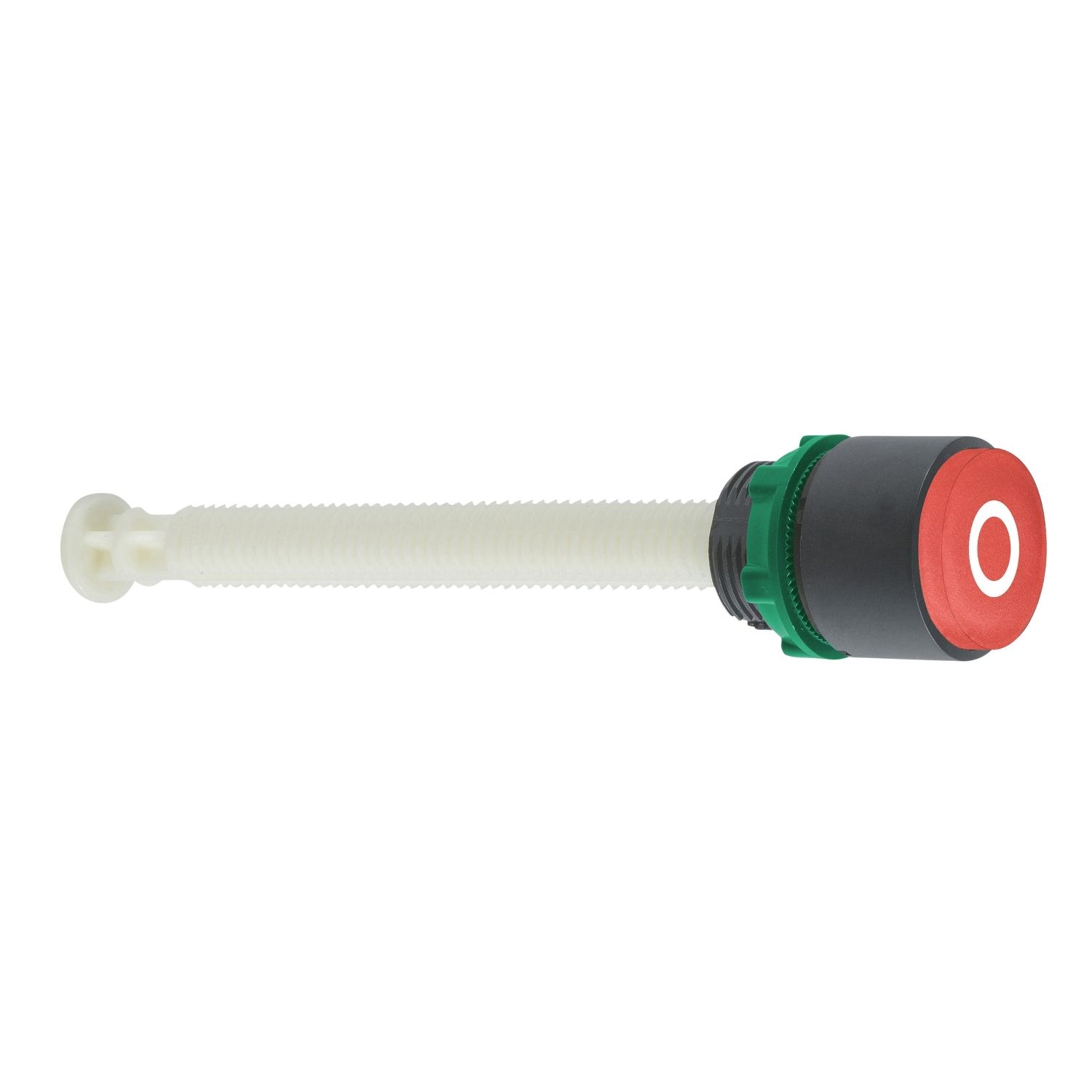

Picture of Manual overload reset push button, Harmony XB5, red projecting, 22mm, for 17...120 mm actuation distance
SKU:

XB5AL84101

Manual overload reset push button, Harmony XB5, red projecting, 22mm, for 17...120 mm actuation distance

$28.19
Available for Shipping : 03-Dec-2024
Product Selector
Manual overload reset push button, Harmony XB5, red projecting, 22mm, for 17...120 mm actuation distance
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet

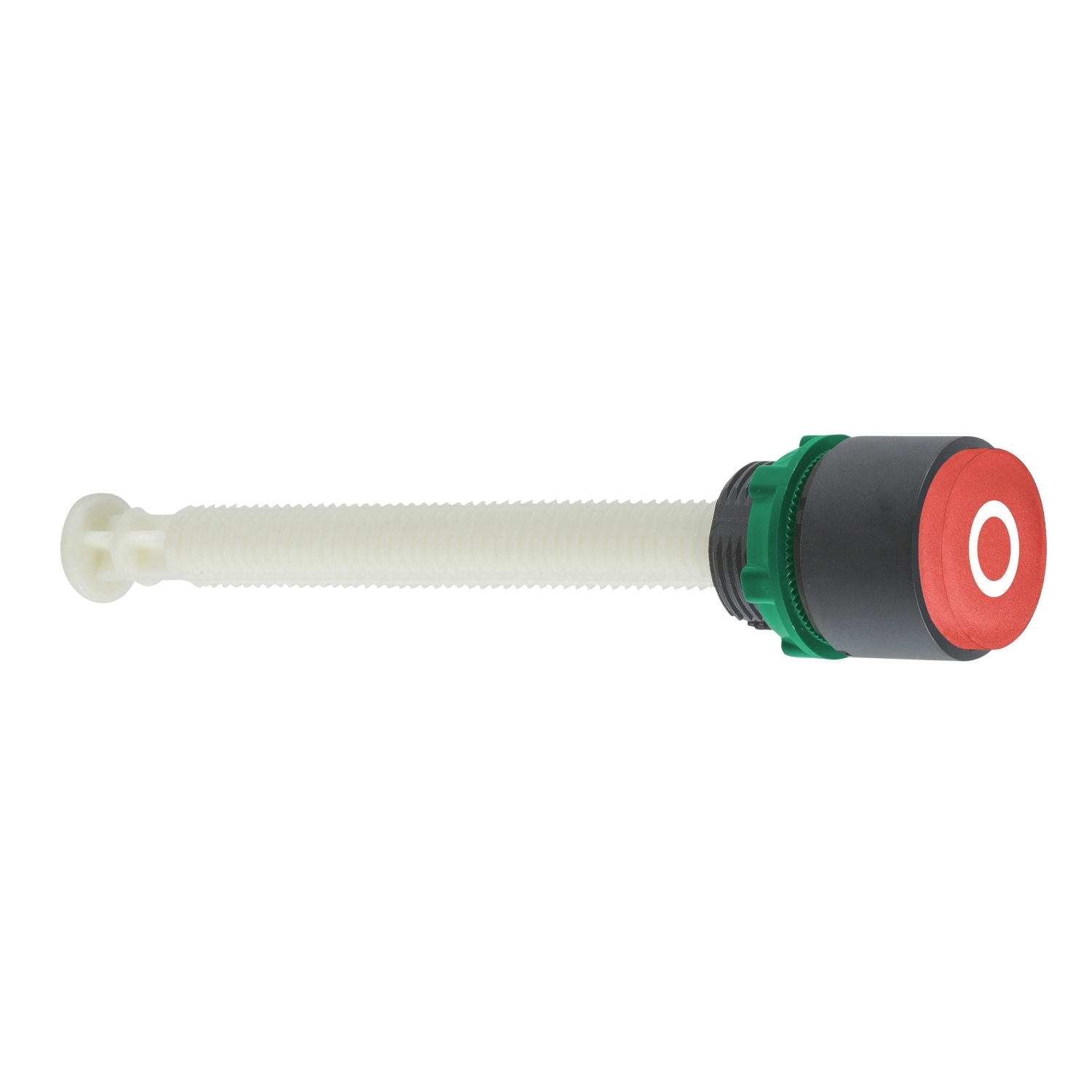

This Harmony XB5, projecting manual overload reset pushbutton is red. It has a round shape and a plastic bezel. It is marked with "O" symbol. This complete manual overload reset pushbutton provides an ergonomic interface for controlling your machines thanks to its projecting push head. It provides a robust and precise control when it is required to reset your machines and processes. It is easily installed into standard 22mm diameter panel cut-outs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Products specifications

Attribute name Attribute value
Main
Device short name XB5
Operator profile red projecting, O (white)
Bezel material dark grey plastic
Device presentation complete product
Head type standard
Fixing collar material plastic
Shape of signaling unit head round
Product or component type manual overload reset push-button
Mounting diameter 22 mm
Activating distance 17-120 mm
Range of product Harmony XB5
Complementary
Depth 120 mm
Width 29 mm
Customizable no, 0
Compatibility code XB5
Mechanical durability 5000000 cycles
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.027 kg
Cap/operator or lens colour red
Operating travel 10 mm
Height 29 mm
Environment
Protective treatment TH
Electrical shock protection class class II conforming to IEC 60536
NEMA degree of protection NEMA 4X
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Standards EN/IEC 60947-1
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 13.4 cm
Package 1 Length 4.5 cm
Package 1 Weight 40.0 g
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.615 kg
