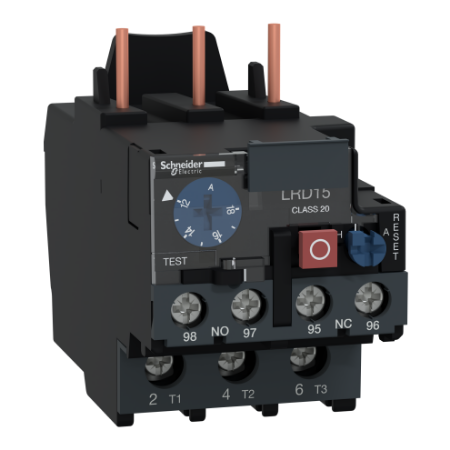

Picture of TeSys Deca thermal overload relays,12...18A,class 20
SKU:

LRD1521

TeSys Deca thermal overload relays,12...18A,class 20

$292.40
TeSys Deca thermal overload relays,12...18A,class 20
  • Tesys D thermal overload relays are designed to protect a.c. circuits and motors against overloads.
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
  • Multiple international certifications
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Product environmental
User guide
Catalogue
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
TeSys LRD thermal overload relay, 18A/690V, thermal setting range 12-18A, tripping class 20, for protection of 3-phase motors 7.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustment dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signaling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B105 (to be ordered separately). Multi standards certified (IEC, UL, CSA, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameLRD
Product compatibilityLC1D32, LC1D18, LC1D25
[Ui] rated insulation voltagepower circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V conforming to UL, power circuit: 600 V conforming to CSA
RangeTeSys
Thermal overload classclass 20 conforming to IEC 60947-4-1
Product nameTeSys Deca, TeSys LRD
Product or component typedifferential thermal overload relay
Relay applicationmotor protection
Network typeAC, DC
Thermal protection adjustment range12-18 A
Complementary
Temperature compensation-20-60 °C
Depth92 mm
Width45 mm
Compatibility codeLRD
Mounting supportunder contactor, rail, with specific accessories, plate, with specific accessories
Control typeblue push-button: reset, red push-button: stop
Tightening torquepower circuit: 1.85 N.m - on screw clamp terminals, control circuit: 1.7 N.m - on screw clamp terminals
Tripping threshold1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Permissible current0.1 A at 250 V DC-13 for signalling circuit, 1.5 A at 240 V AC-15 for signalling circuit
[Uimp] rated impulse withstand voltage6 kV
Net weight0.19 kg
Associated fuse rating4 A BS for signalling circuit, 4 A gG for signalling circuit
[Ue] rated operational voltage690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Phase failure sensitivitytripping current 130 % of Ir on two phase, the last one at 0
Connections - terminalspower circuit: screw clamp terminals 1 cable(s) 1-6 mm² solid without cable end, power circuit: screw clamp terminals 1 cable(s) 1-4 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end
[Ith] conventional free air thermal current5 A for signalling circuit
Auxiliary contact composition1 NO + 1 NC
Network frequency0...400 Hz
Environment
Fire resistance850 °C conforming to IEC 60695-2-1
Ambient air temperature for storage-60-70 °C
Flame retardanceV1 conforming to UL 94
IP degree of protectionIP20 conforming to IEC 60529
Dielectric strength1.89 kV at 50 Hz conforming to IEC 60947-1
Ambient air temperature for operation-20-60 °C without derating conforming to IEC 60947-4-1
Climatic withstandconforming to IACS E10
StandardsCSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1
Mechanical robustnessshocks: 15 Gn for 11 ms conforming to IEC 60068-2-7, vibrations: 6 Gn conforming to IEC 60068-2-6
Product certificationsUKCA, LROS (Lloyds register of shipping), DNV-GL, EAC, CSA, UL, IEC
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.700 cm
Package 1 Width9.600 cm
Package 1 Length5.200 cm
Package 1 Weight230.000 g
Unit Type of Package 22
Number of Units in Package 225
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight6.182 kg
