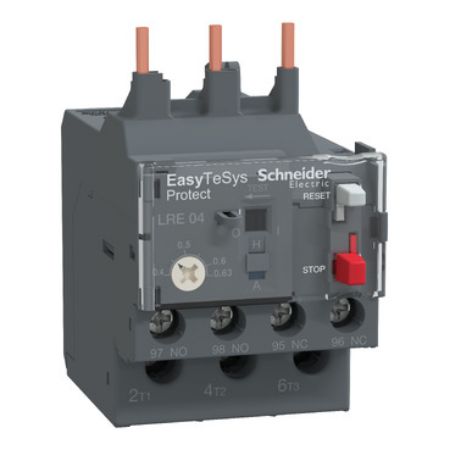

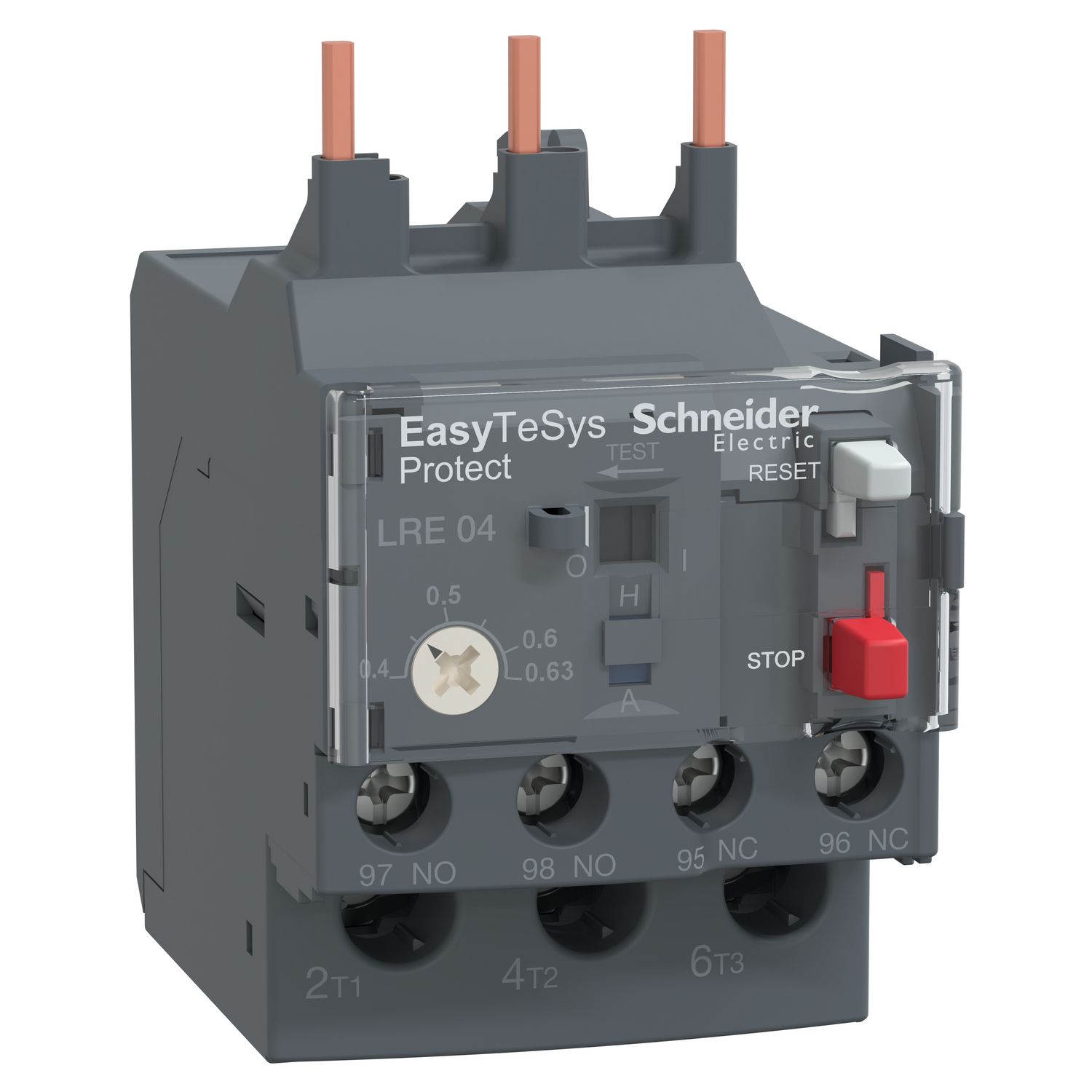

Picture of Thermal overload relay,Easy TeSys Protect,0.4...0.63A,class 10A
SKU:

LRE04

Thermal overload relay,Easy TeSys Protect,0.4...0.63A,class 10A

Please Contact Sales to buy this Product. click here
Product Selector
Thermal overload relay,Easy TeSys Protect,0.4...0.63A,class 10A
  • Provide cost-effective and essential control & protection solution to a simple application
  • Designed to protect motors against overloads, phase failure
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Instruction sheet
Catalogue
End of life manual
Product environmental
Product Page Link
Product Data Sheet
The LRE relay is a differential thermal overload relays for use with fuses or magnetic circuit-breakers GV2 L and GV3 L. Its thermal setting range is 0.4-0.63A 50/60Hz and the tripping class is 10A conforming to IEC 60947-4-1. It can be direct mounted on EasyPact TVS contactors with screw clamp terminals connection. It protects unbalanced loads and motors with 0.12 - 0.18kW at 400VAC. It provides manual or automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).

Products specifications

Attribute nameAttribute value
Main
Device short nameLRE
Colourgrey (RAL 7011)
RangeEasy TeSys
Product or component typedifferential thermal overload relay
Relay applicationmotor protection
Phase failure sensitivitytripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1
Range of productEasy TeSys Protect
Complementary
Temperature compensation-20-60 °C
Product compatibilityLC1E06...38
Depth70 mm
Width45 mm
Control typepush-button green reset: , push-button red stop:
Mounting supportrail, with specific accessories, plate, with specific accessories, under contactor
Tightening torquesignalling circuit: 1.7 N.m - on screw clamp terminals, power circuit: 1.7 N.m - on screw clamp terminals
Tripping threshold1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
[Ui] rated insulation voltage690 V conforming to IEC 60947-4-1
Local signallingtrip indicator
Connections - terminalssignalling circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable end, signalling circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, signalling circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 1-6 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: flexible without cable end
[Uimp] rated impulse withstand voltage6 kV
Net weight0.13 kg
Associated fuse rating5 A gG for signalling circuit, 1 A aM for power circuit, 2 A gG for power circuit
Thermal overload classclass 10A conforming to IEC 60947-4-1
Network typeAC
Thermal protection adjustment range0.4-0.63 A
[Ue] rated operational voltage<= 690 V AC
[Ith] conventional free air thermal current5 A for signalling circuit
Auxiliary contact composition1 NO + 1 NC
Height44.5 mm
Mechanical robustnessvibrations: 3 GN conforming to IEC 60068-2-6, shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7
Signalling functionrelay trip indicator
Network frequency50...60 Hz
Environment
Fire resistance850 °C conforming to IEC 60068-2-1
Protective treatmentTH conforming to IEC 60068
Ambient air temperature for storage-60-80 °C
IP degree of protectionIP20 conforming to IEC 60529
Dielectric strength6 kV at 50 Hz conforming to IEC 60255-5
Ambient air temperature for operation-20-70 °C with derating, -20-60 °C without derating conforming to IEC 60947-4-1
Electromagnetic compatibilitysurge withstand: 6 kV conforming to IEC 60801-5
StandardsIEC 60947-5-1, IEC 60947-4-1
Product certificationsEAC
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.5 cm
Package 1 Width8 cm
Package 1 Length8.5 cm
Package 1 Weight142 g
Unit Type of Package 22
Number of Units in Package 233
Package 2 Height15 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight5.064 kg
