SKU:

LSX58053A

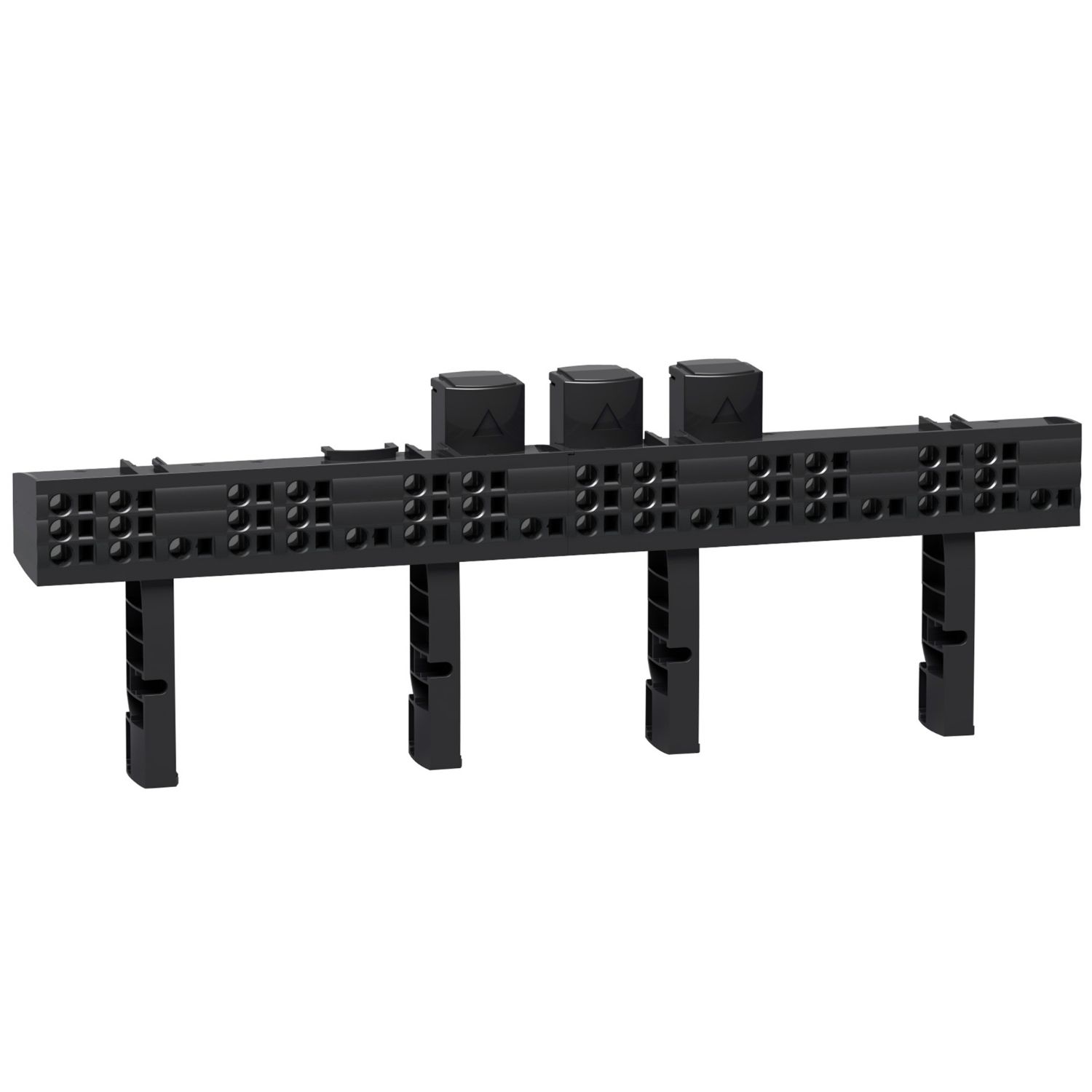

Linergy FM 3P distribution block - 200A - 24 modules 36 holes - quick connection

$460.02 INC GST

Qty:

Available for Shipping : 24-Mar-2026

Linergy FM 3P distribution block - 200A - 24 modules 36 holes - quick connection

Manufacturer: Schneider Electric

Delivery date: 24-Mar-2026

Environmental Disclosure

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Range	Linergy
IP degree of protection	IPxx B
Product name	Linergy FM
Product or component type	distribution block
Accessory / separate part category	current distribution accessory
Range compatibility	Prisma Prisma iPM M enclosure, Prisma Prisma iPM L enclosure
Range of product	Linergy
Complementary
Depth	50 mm
Width	433 mm
[Uimp] rated impulse withstand voltage	8 kV
Compatibility code	MULTICLIP
Poles description	3P
9 mm pitches	48
Total number of 18 mm modules	24
Mounting support	plain backplate, DIN rail, slotted backplate
Mounting mode	by screws, clip-on
[Ue] rated operational voltage	690 V AC
Height	44 mm
[Ie] rated operational current	200 A
[In] rated current	200 A at 40 °C
Connections - terminals	distribution: quick-connect terminal strips (phase) , 12 x 1-10 mm² (rigid) , distribution: quick-connect terminal strips (phase) , 12 x 1-10 mm² (flexible) , supply: flexible bars, 20 x 3 mm, supply: crimped lug50-50 mm²
[Ui] rated insulation voltage	750 V AC 50/60 Hz
Environment
Standards	IEC 60947-7-1, IEC 61439-2, inside Prisma, IEC 61439-1, inside Prisma
Product certifications	ASEFA, CE, CCC
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.0 cm
Package 1 Width	7.0 cm
Package 1 Length	50.0 cm
Package 1 Weight	1.31 kg
