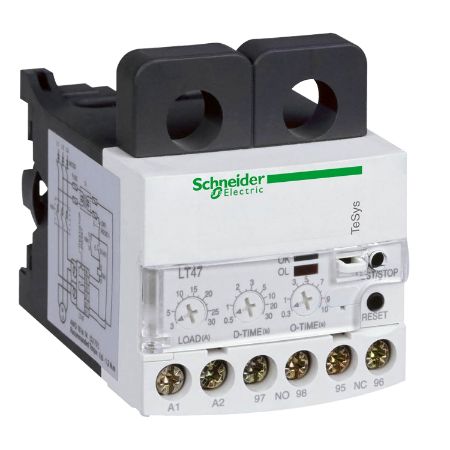

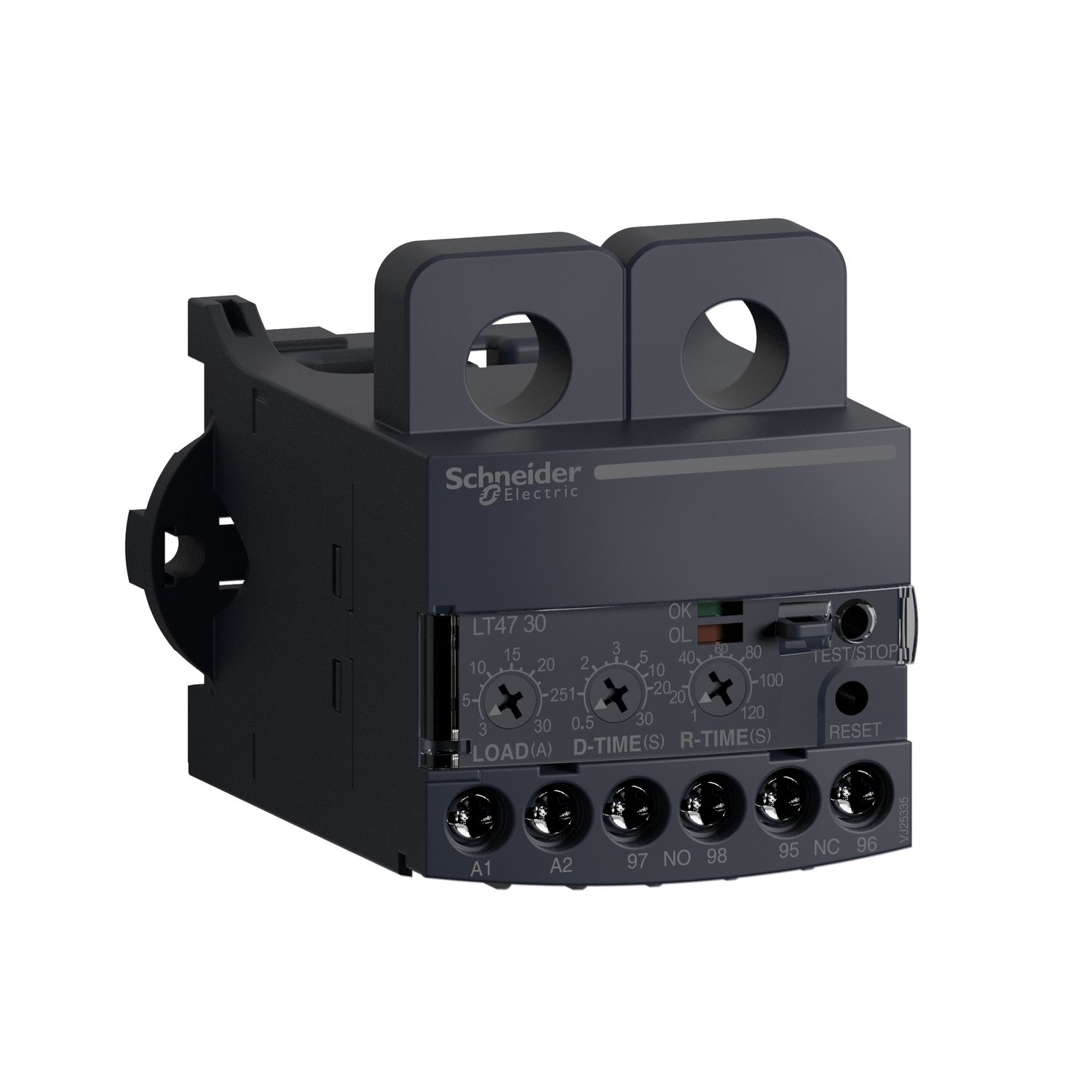

Picture of Electronic over current relays, TeSys LT47, automatic, 3 to 30A, 200 to 240VAC
SKU:

LT4730M7A

Electronic over current relays, TeSys LT47, automatic, 3 to 30A, 200 to 240VAC

$235.97
Available for Shipping : 20-Jan-2025
Electronic over current relays, TeSys LT47, automatic, 3 to 30A, 200 to 240VAC
  • The device has a reset button, a test/stop button, 2 LED indicators (Run/Trip)
  • Manual or automatic reset depending on model
  • Reduces the production loss and associated downtime
  • Simple setting and signaling features
  • Compact and easy integration into motor starter functions
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
End of life manual
Product Page Link
Product Data Sheet
TeSys LR47 electronic overcurrent relay, 30A/690V, with automatic reset, to be supplied with 200-240V AC, for protection of motors with a rated current 3-25A. It provides 3 dials to adjust the protection, LOAD (3-30A) for the overcurrent level, O-TIME (0.3-10sec) for the acceptable duration of the overcurrent, R-TIME (1-120sec) for the automatic reset delay. In addition, the device trips when there is a missing phase during more than O-TIME. The device has a reset button, a test/stop button, 2 LED indicators (Run/Trip), 2 auxiliary contacts 1NO+1NC for fault signalling. Settings can be locked by sealing the transparent cover. DIN rail mounting, without power terminals (currents monitored by 2 current transformers crossed by the motor cables). Multi standards certified (IEC, UL, CSA, CCC, EAC), it conforms to RoHS/REACh regulation.
