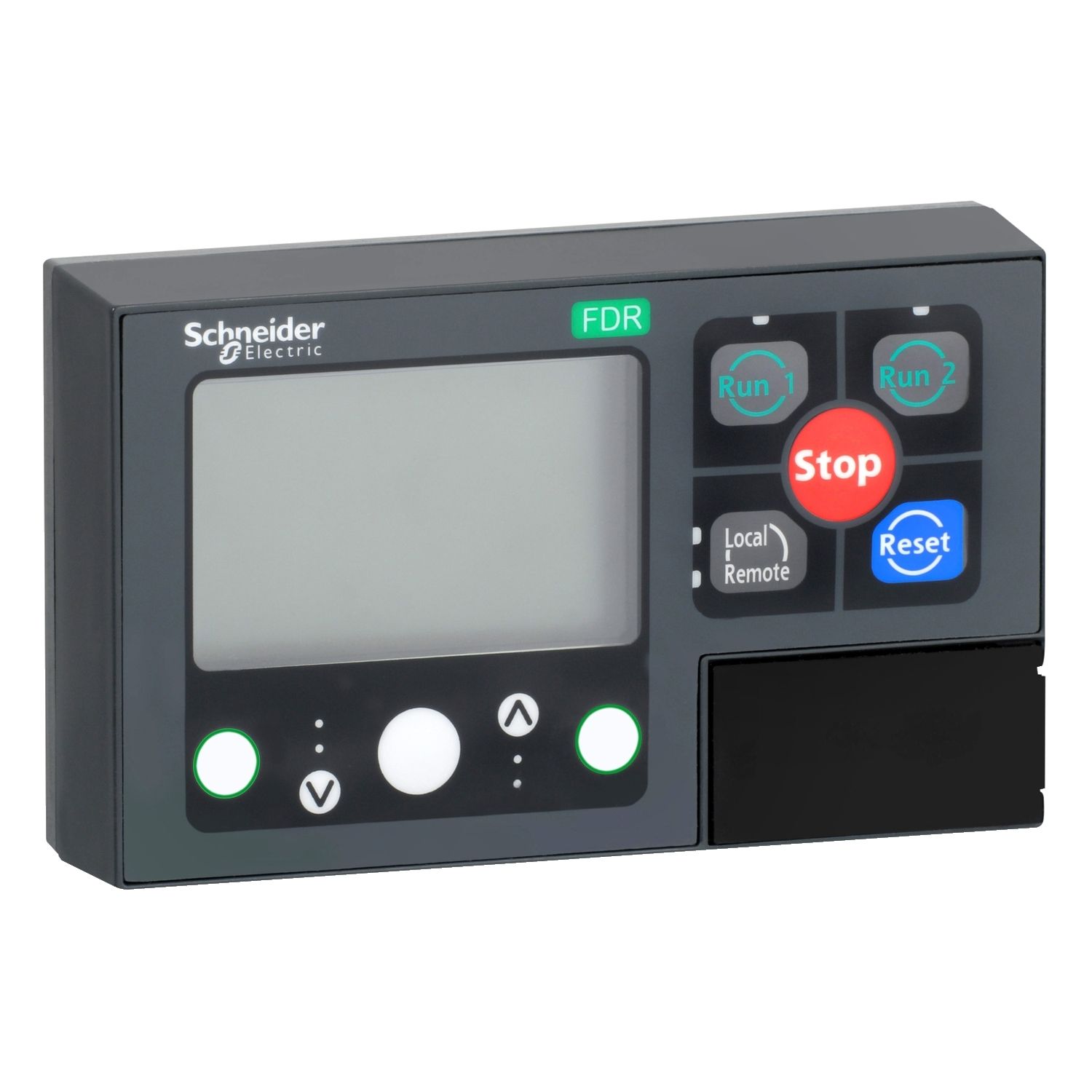

Picture of Operator control unit, TeSys T, with fast device replacement service
SKU:

LTMCUF

Operator control unit, TeSys T, with fast device replacement service

Please Contact Sales to buy this Product. click here
Operator control unit, TeSys T, with fast device replacement service
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
User guide
End of life manual
Instruction sheet
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. It manages most critical processes while reducing downtime and increasing productivity as well as predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This motor management system is also a flexible system that supports six communication protocols which are Modbus™, CANopen, DeviceNet™, Profibus™, Ethernet/IP, and Modbus/TCP. TeSys T motor management system consist of several components which include the LTMR controller, the expansion module, HMI and software along with several accessories. The LTMR controller is the main component of the system that manages the basic functions. This includes the measurement of the ground current, motor temperature, three phase current of the motor, the controller also includes logic inputs and outputs which is used in fault management. The expansion module is directly connected to the controller and provides additional inputs as well as measure the voltage between the phases which allow the controller the monitor additional functions. TeSys T is highly reliable and has a very long product life thanks to a state-of-the-art component selection, to the all in one design and to the advanced electronic protection. TeSys T can be integrated in many different types of harsh environment such as dusty atmospheres, marine applications, high vibration applications and corrosive atmospheres and is used in Metal/Mining/Mineral, Oil & Gas, Water Wastewater. This is a TeSys operator control unit that is used in conjuction with LTMR controller to configure the parameters, display the information about the controller, display detected faults and control the motor locally. This operator unit has Fast Device Replacement Service (FDR). This operator unit has LCD screen to display the information along with 5 control keys and 4 LED indicators and has 2 ports for RJ45 connectors that are used to connect to the PC and controller.

Products specifications

Attribute nameAttribute value
Main
Device short nameLTMCUF
Display typebacklit LCD
Control button type10 push-button
Local signalling4 LEDs
Function availableFDR (fast device replacement)
Device connectionconnection to a PC, RJ45 connector on front, connection to a LTM R controller, RJ45 connector on rear
RangeTeSys
Product or component typeoperator control unit
Range compatibilityTeSys T LTMR motor controller
Complementary
Depth50 mm
Width117 mm
Compatibility codeLTMCUF
Maximum supply current140 mA
Mounting modeflush-mounted
Electromagnetic compatibilityfast transient bursts (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-4, surges (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-5, conducted RF disturbances, level 3, 10 V, conforming to EN/IEC 61000-4-6, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2
IP degree of protectionIP20 (rear) conforming to EN/IEC 60947-4-1, IP54 (front) conforming to EN/IEC 60947-4-1
Net weight0.4 kg
Supplyvia the controller
Power dissipation1 W
StandardsCSA C22.2 No 60947-4-1, EN/IEC 61131-2, UL 60947-4-1A
Height70 mm
Product certificationsC-Tick, UL, CE, NOM, EAC, CSA
Environment
Fire resistance650 °C conforming to EN/IEC 60947-1
Protective treatmentTC 12 humidity cycles at 55 °C conforming to EN/IEC 60068-2-30
Ambient air temperature for storage-40-80 °C
Relative humidity15-95 %
Flame retardanceV2 conforming to UL 94
Ambient air temperature for operation-20-60 °C
Mechanical robustnessvibrations: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.0 cm
Package 1 Width7.8 cm
Package 1 Length13.6 cm
Package 1 Weight265.0 g
Unit Type of Package 22
Number of Units in Package 232
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight9.08 kg
