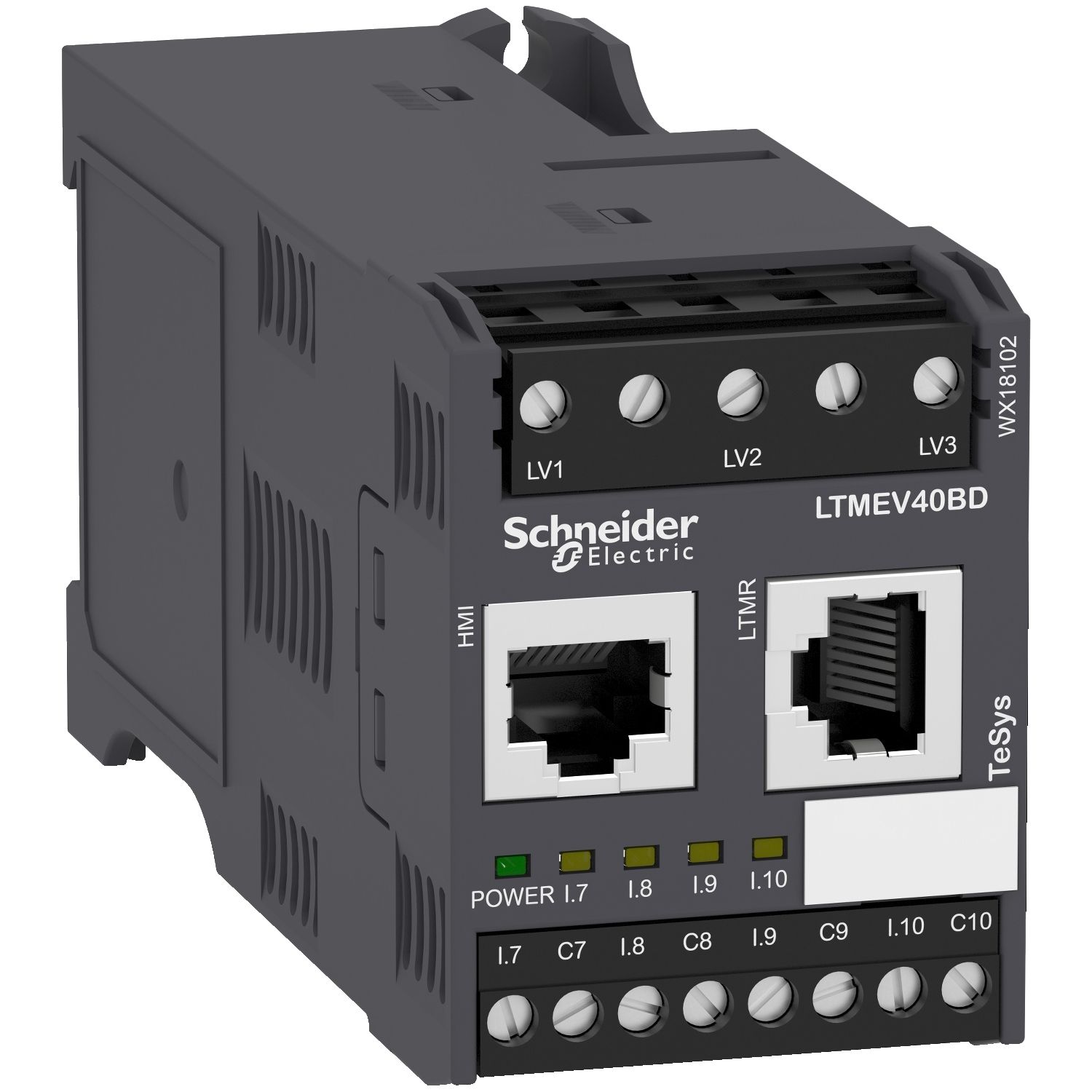

Picture of Extension module, TeSys T, 4 inputs, 24VDC, for LTMR controller
SKU:

LTMEV40BD

Extension module, TeSys T, 4 inputs, 24VDC, for LTMR controller

$968.52
Extension module, TeSys T, 4 inputs, 24VDC, for LTMR controller
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Instruction sheet
User guide
End of life manual
Product environmental
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. TeSys T has a number of components that increase the flexibility of the system. This expansion module adds functionalities to the TeSys T controller. It adds voltage mesurement between phases up to 690 V nominal and 4 additional inputs. Module has 4 discrete logic inputs. 24 VDC is used to power the module. Module has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.

Products specifications

Attribute nameAttribute value
Main
Device short nameLTME
Device applicationequipment monitoring and control
[Us] rated supply voltage24 V DC
RangeTeSys
Product nameTeSys T
Product or component typeextension module
Supplyvia the controller
Range compatibilityTeSys TeSys T LTMR motor controller
Complementary
Metering typeactive power P, P1, P2, P3, power factor, reactive power Q, Q1, Q2, Q3, calculated active and reactive energy (+/- W.h, +/- VAR.h), frequency, imbalance voltage, voltage U21, U32, U13, V1, V2, V3
Maximum operating frequency2 Hz
Depth120.7 mm
Tightening torquecontrol circuit: 0.5-0.6 N.m flat screwdriver 3 mm
Overvoltage categoryIII
Width45 mm
Compatibility codeLTME
[Ui] rated insulation voltage690 V conforming to UL 508, 690 V conforming to CSA C22.2 No 14, 690 V conforming to EN/IEC 60947-1
Current state 0 guaranteedlogic input: < 5 V and <= 15 mA for 5 ms
Measurement accuracy5 % active and reactive power, 3 % power factor, 1 % voltage (100...830 V)
Electromagnetic compatibilityvoltage inputs: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5, voltage inputs: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5, communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5, control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5, control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5, conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6, fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4, fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4, electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
[Uimp] rated impulse withstand voltage0.8 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1, 6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1
Net weight0.21 kg
Current state 1 guaranteedlogic input: < 15 V and 2...15 mA for 15 ms
Input current7 mA
Connections - terminalscontrol circuit: connector 2 cable(s) 0.2-1 mm² (AWG 24...AWG 14) solid without cable end, control circuit: connector 2 cable(s) 0.5-1.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 2 cable(s) 0.2-1.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 2 cable(s) 0.2-1 mm² (AWG 24...AWG 14) flexible with cable end, control circuit: connector 1 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) solid without cable end, control circuit: connector 1 cable(s) 0.25-2.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 1 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 1 cable(s) 0.25-2.5 mm² (AWG 24...AWG 14) flexible with cable end
Maximum operating rate1800 cyc/h
Logic input number4
Pollution degree3
Connection pitch5.08 mm
Height61 mm
Contacts type and compositionwithout
Environment
IP degree of protectionIP20
Fire resistance960 °C conforming to UL 94, 650 °C conforming to EN/IEC 60695-2-12
Operating altitude<= 2000 m without derating
Protective treatmentTH conforming to EN/IEC 60068, 48 h conforming to EN/IEC 60070-2-11, 12 x 24 hour cycles conforming to EN/IEC 60068-2-30
Ambient air temperature for storage-40-80 °C
StandardsCSA C22.2 No 14, IACS E10, EN 60947-4-1, UL 508, IEC 60947-4-1
Ambient air temperature for operation-20-60 °C
Mechanical robustnessvibrations plate mounted: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6, vibrations mounted on symmetrical rail: 1 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6, shocks half sine wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27
Product certificationsCCC, C-Tick, RMRoS, KERI, GL, ABS, DNV, LROS (Lloyds register of shipping), RINA, EAC, CSA, BV, ATEX, NOM, UL
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.5 cm
Package 1 Width7.2 cm
Package 1 Length13.5 cm
Package 1 Weight195.0 g
Unit Type of Package 22
Number of Units in Package 220
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight4.251 kg
