LTMR08MBD

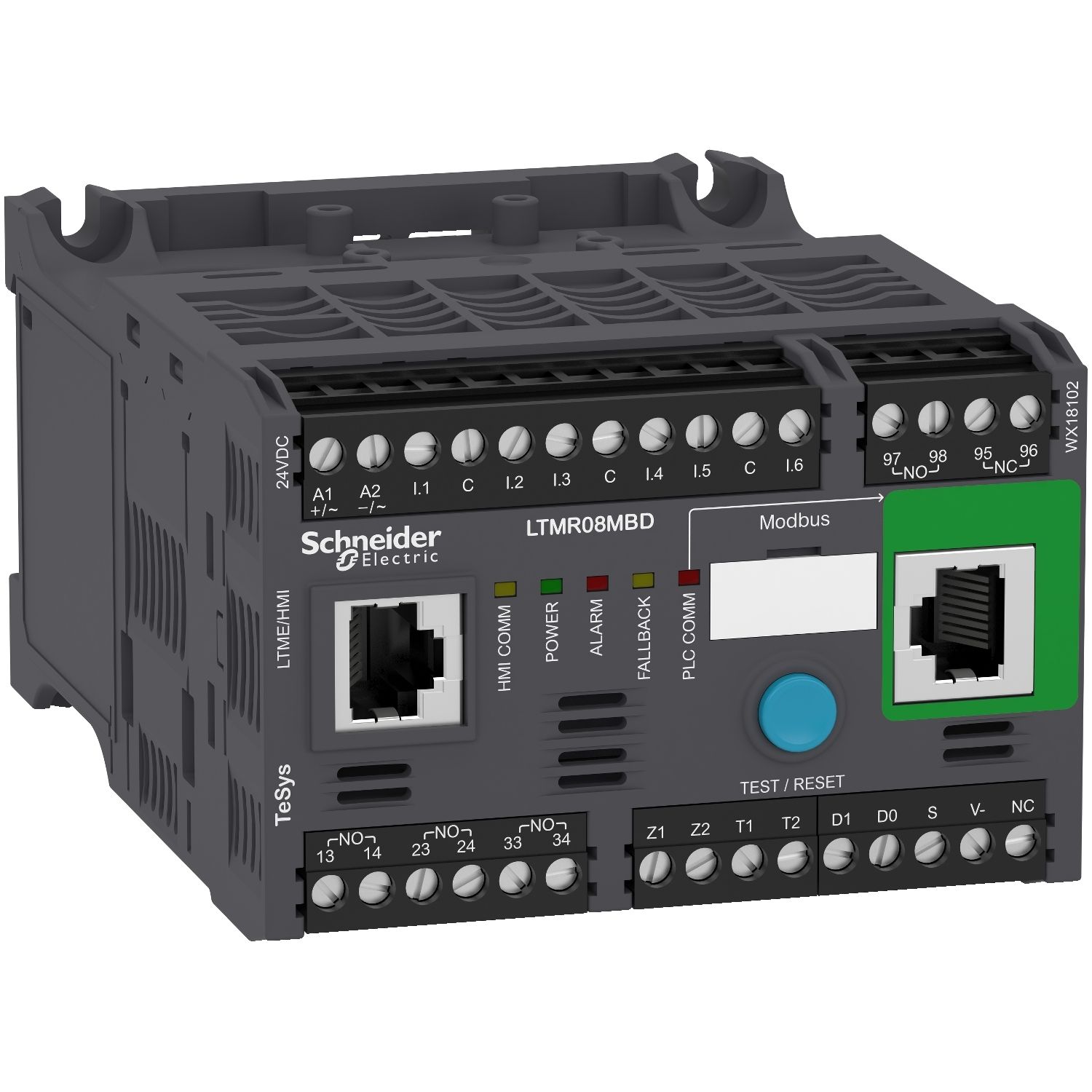

Motor Management, TeSys T, motor controller, Modbus, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 24VDC

$1,946.42
Motor Management, TeSys T, motor controller, Modbus, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 24VDC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 13-Oct-2024
Instruction sheet
User guide
End of life manual
Product environmental
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
Device short nameLTMR
Device applicationequipment monitoring and control
Supply voltage limits20.4-26.24 V DC
Bus typeModbus 2-wire RS 485 interface, addressing 1...247, transmission rate 1.2...19.2 kbit/s, terminal block with 2 shielded twisted pairs, Modbus 2-wire RS 485 interface, addressing 1...247, transmission rate 1.2...19.2 kbit/s, RJ45 with 2 shielded twisted pairs
Communication port protocolModbus
[Us] rated supply voltage24 V DC
Current consumption56...127 mA
RangeTeSys
Measurement current0.4-8 A
Product nameTeSys T
Product or component typemotor controller
Complementary
Metering typetemperature, imbalance current, phase current I1, I2, I3 RMS, earth-fault current, average current Iavg
Maximum operating frequency2 Hz
Depth122.5 mm
Tightening torquecontrol circuit: 0.5-0.6 N.m flat screwdriver 3 mm
Overvoltage categoryIII
Load current5 A at 30 V DC for logic output, 5 A at 250 V AC for logic output
Width91 mm
Web servicesweb server
Protection typereverse polarity protection, earth-leakage protection, thermal overload protection, thermal protection, phase failure, overload (long time), overload, load fluctuation, power factor variation, locked rotor, phase unbalance
Compatibility codeLTMR
Short-circuit withstand100 kA conforming to EN/IEC 60947-4-1
[Ui] rated insulation voltage690 V conforming to UL 508, 690 V conforming to CSA C22.2 No 14, 690 V conforming to EN/IEC 60947-1
Current state 0 guaranteedlogic input: < 5 V and <= 15 mA for 5 ms
Measurement accuracy5 % active and reactive power, 1 % current, 0,02 temperature, +/- 30 min/year internal clock, 5 % earth fault current external measurement, 3 % power factor, 1 % voltage (100...830 V), 5...15 % earth fault current internal measurement
Electromagnetic compatibilitycontrol circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5, temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5, temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5, conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6, voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11, fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4, fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4, radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3, relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5, relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5, communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5, control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5, electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
Associated fuse rating0.5 A gG for control circuit, 4 A gG for output
[Uimp] rated impulse withstand voltage0.8 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1, 0.8 kV communication circuit conforming to EN/IEC 60947-4-1, 6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1
Net weight0.53 kg
Current state 1 guaranteedlogic input: < 15 V and 2...15 mA for 15 ms
Input current7 mA
Connections - terminalscontrol circuit: connector 2 cable(s) 0.2-1 mm² (AWG 24...AWG 14) solid without cable end, control circuit: connector 2 cable(s) 0.5-1.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 2 cable(s) 0.2-1.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 2 cable(s) 0.2-1 mm² (AWG 24...AWG 14) flexible with cable end, control circuit: connector 1 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) solid without cable end, control circuit: connector 1 cable(s) 0.25-2.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 1 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 1 cable(s) 0.25-2.5 mm² (AWG 24...AWG 14) flexible with cable end
Maximum operating rate1800 cyc/h
Logic input number6
Pollution degree3
Network and machine diagnosis typemotor control command recording, event recording, starting current and time, trip context information, remaining operating time before overload tripping, waiting time after overload tripping, fault recording, phase fault and earth fault trip counters, trip history information, running hours counter/operating time
Permissible power30 W (DC-13), Ie = 1.25 A, 500000 cycles (output), 480 VA (AC-15), Ie = 2 A, 500000 cycles (output)
Connection pitch5.08 mm
Height61 mm
Contacts type and composition3 NO, 1 NO + 1 NC fault signal
Environment
IP degree of protectionIP20
Fire resistance960 °C conforming to UL 94, 650 °C conforming to EN/IEC 60695-2-12
Operating altitude<= 2000 m without derating
Protective treatmentTH conforming to EN/IEC 60068, 48 h conforming to EN/IEC 60070-2-11, 12 x 24 hour cycles conforming to EN/IEC 60068-2-30
Ambient air temperature for storage-40-80 °C
StandardsIEC 60947-4-1, CSA C22.2 No 14, UL 508, EN 60947-4-1, IACS E10
Ambient air temperature for operation-20-60 °C
Mechanical robustnessshocks half sine wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27, vibrations plate mounted: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6, vibrations mounted on symmetrical rail: 1 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6
Product certificationsC-Tick, ATEX, NOM, LROS (Lloyds register of shipping), KERI, GL, CCC, RMRoS, RINA, UL, CSA, BV, ABS, EAC, DNV
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.2 cm
Package 1 Width10.0 cm
Package 1 Length13.6 cm
Package 1 Weight515.0 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight5.507 kg
