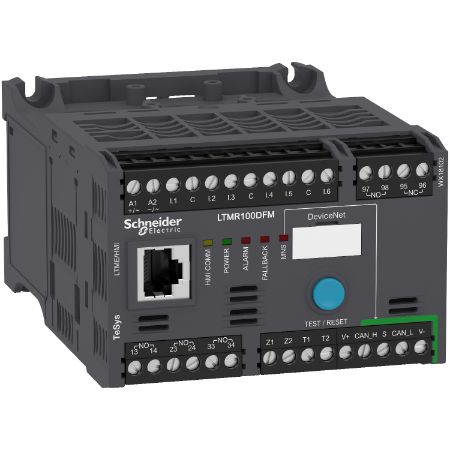

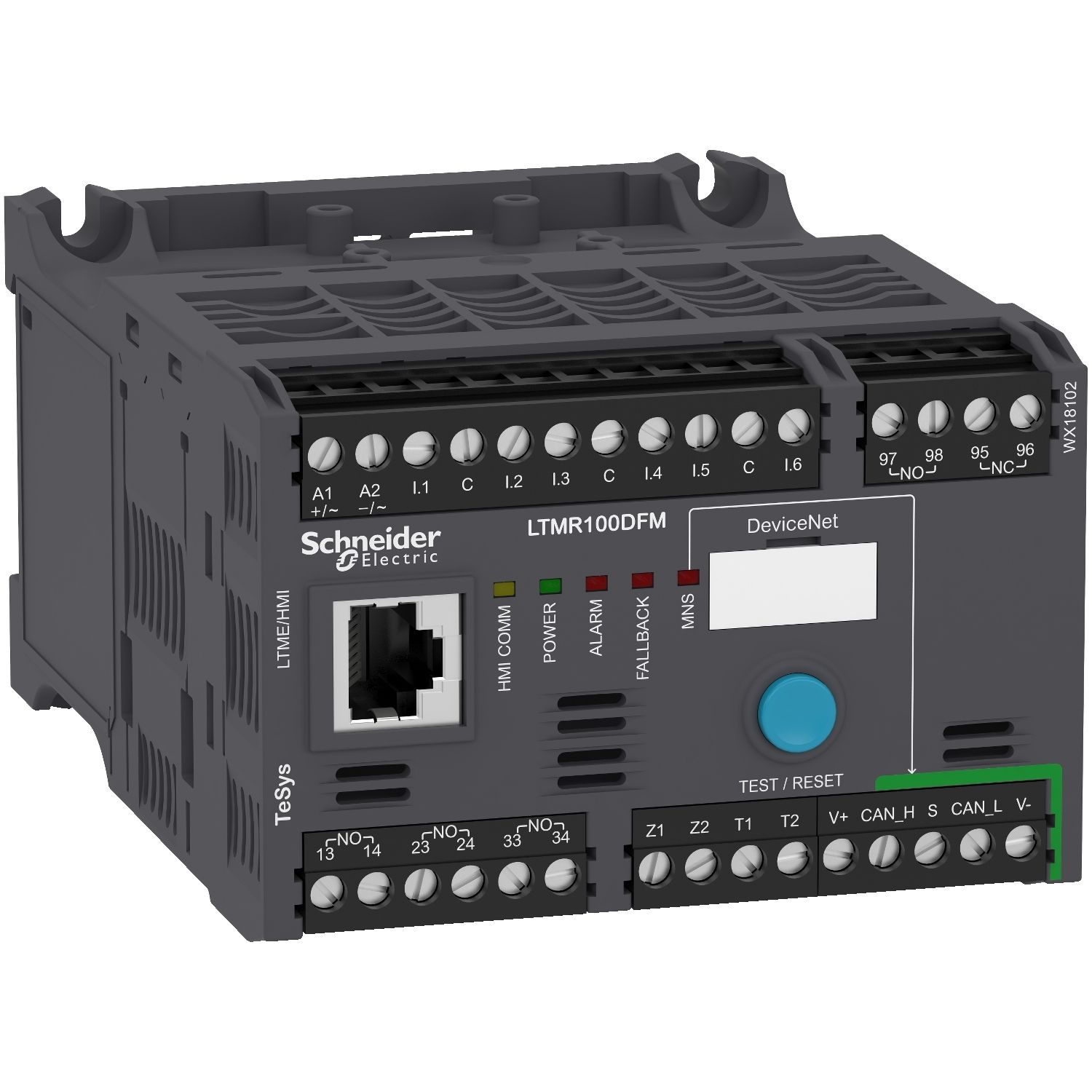

Picture of Motor controller, TeSys T, Motor Management, DeviceNet, 6 logic inputs, 3 relay logic outputs, 5 to 100A, 100 to 240VAC
SKU:

LTMR100DFM

Motor controller, TeSys T, Motor Management, DeviceNet, 6 logic inputs, 3 relay logic outputs, 5 to 100A, 100 to 240VAC

$2,143.66
Motor controller, TeSys T, Motor Management, DeviceNet, 6 logic inputs, 3 relay logic outputs, 5 to 100A, 100 to 240VAC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 17-Nov-2024
Instruction sheet
User guide
End of life manual
Product environmental
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This controller is the central component in the motor management system. The module manages the basic functions of the motor management system. It manages the measurement of 3 phase current via integral current transformers from 0.4 to 100 A or up to 810 A by external current transformers. It also measures ground current with internal or external ground sensors, motor temperature and the inputs and outputs for the various motor control modes, detected fault management and other functions. DeviceNet protocol is used by this controller. This module has 6 discrete logic inputs, 3 relay logic outputs and a relay output for detected fault signaling overload relay. The current range of this controller is 5 to 100 amperes. 120 to 240 VAC is used to power this controller. Controller has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.

Products specifications

Attribute nameAttribute value
Main
Device short nameLTMR
Device applicationequipment monitoring and control
Supply voltage limits93.5-264 V AC
Bus typeDeviceNet ISO 1198 interface, addressing 1...64, transmission rate 125...500 kbit/s, terminal block with 4 twisted shielded pairs cable
[Us] rated supply voltage100...240 V AC 50/60 Hz
RangeTeSys
Communication port protocolDeviceNet
Current consumption8...62.8 mA
Measurement current5-100 A
Product nameTeSys T
Product or component typemotor controller
Complementary
Metering typephase current I1, I2, I3 RMS, earth-fault current, average current Iavg, temperature, imbalance current
Tightening torquecontrol circuit: 0.5-0.6 N.m flat screwdriver 3 mm
Load current5 A at 30 V DC for logic output, 5 A at 250 V AC for logic output
Web servicesweb server
Protection typereverse polarity protection, phase unbalance, earth-leakage protection, thermal protection, locked rotor, overload, power factor variation, thermal overload protection, load fluctuation, overload (long time), phase failure
Compatibility codeLTMR
Current state 0 guaranteedlogic input: 0...40 V and <= 15 mA for 25 ms
Measurement accuracy0,02 current, 5 % active and reactive power, 0,02 temperature, +/- 30 min/year internal clock, 5 % earth fault current external measurement, 3 % power factor, 1 % voltage (100...830 V), 5...15 % earth fault current internal measurement
Electromagnetic compatibilitycontrol circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5, temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5, temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5, conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6, voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11, fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4, fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4, radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3, control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5, relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5, relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5, communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5, electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
Associated fuse rating0.5 A gG for control circuit, 4 A gG for output
Input current7.5 mA at 240 V, 3.1 mA at 100 V
Connections - terminalscontrol circuit: connector 2 cable(s) 0.2-1 mm² (AWG 24...AWG 14) solid without cable end, control circuit: connector 2 cable(s) 0.5-1.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 2 cable(s) 0.2-1.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 2 cable(s) 0.2-1 mm² (AWG 24...AWG 14) flexible with cable end, control circuit: connector 1 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) solid without cable end, control circuit: connector 1 cable(s) 0.25-2.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 1 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 1 cable(s) 0.25-2.5 mm² (AWG 24...AWG 14) flexible with cable end
Maximum operating rate1800 cyc/h
Logic input number6
Pollution degree3
Permissible power30 W (DC-13), Ie = 1.25 A, 500000 cycles (output), 480 VA (AC-15), Ie = 2 A, 500000 cycles (output)
Connection pitch5.08 mm
Height61 mm
Contacts type and composition3 NO, 1 NO + 1 NC fault signal
Maximum operating frequency2 Hz
Depth122.5 mm
Overvoltage categoryIII
Width91 mm
Short-circuit withstand100 kA conforming to EN/IEC 60947-4-1
[Ui] rated insulation voltage690 V conforming to UL 508, 690 V conforming to CSA C22.2 No 14, 690 V conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage0.8 kV communication circuit conforming to EN/IEC 60947-4-1, 6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1, 4 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1
Net weight0.53 kg
Current state 1 guaranteedlogic input: 79...264 V and >= 2 mA for 25 ms
Network and machine diagnosis typewaiting time after overload tripping, starting current and time, event recording, trip context information, fault recording, remaining operating time before overload tripping, phase fault and earth fault trip counters, running hours counter/operating time, trip history information, motor control command recording
Environment
IP degree of protectionIP20
Fire resistance960 °C conforming to UL 94, 650 °C conforming to EN/IEC 60695-2-12
Protective treatmentTH conforming to EN/IEC 60068, 48 h conforming to EN/IEC 60070-2-11, 12 x 24 hour cycles conforming to EN/IEC 60068-2-30
Ambient air temperature for storage-40-80 °C
Ambient air temperature for operation-20-60 °C
Mechanical robustnessshocks half sine wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27, vibrations plate mounted: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6, vibrations mounted on symmetrical rail: 1 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6
Operating altitude<= 2000 m without derating
StandardsIACS E10, CSA C22.2 No 14, IEC 60947-4-1, UL 508, EN 60947-4-1
Product certificationsC-Tick, NOM, ABS, KERI, RMRoS, CCC, BV, ATEX, UL, GL, EAC, RINA, LROS (Lloyds register of shipping), DNV, CSA
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.0 cm
Package 1 Width10.0 cm
Package 1 Length13.5 cm
Package 1 Weight524.0 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight5.626 kg
