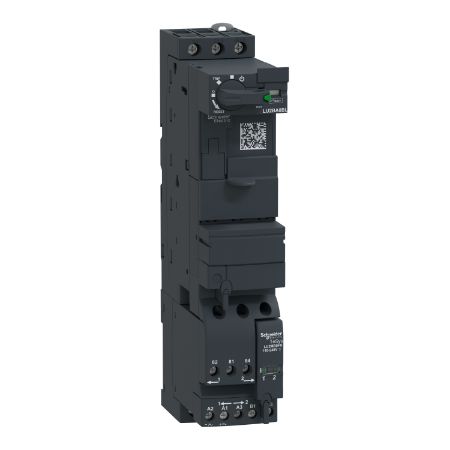

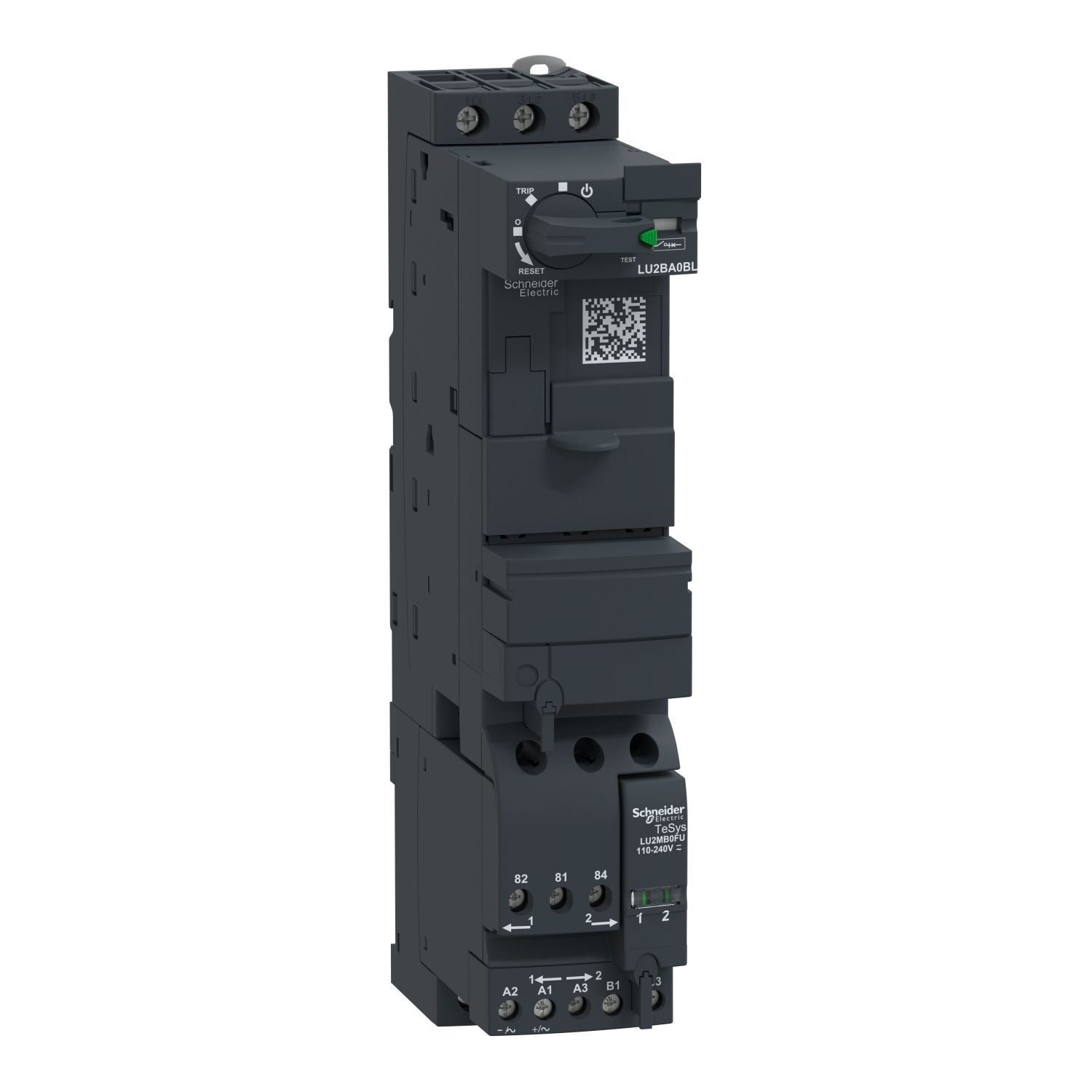

Picture of Reversing power base, TeSys Ultra, 3P, 1NO + 1NC, 12A, 690VAC, 24VDC, without control terminals
SKU:

LU2BA0BL

Reversing power base, TeSys Ultra, 3P, 1NO + 1NC, 12A, 690VAC, 24VDC, without control terminals

$1,202.14
Available for Shipping : 28-Nov-2024
Reversing power base, TeSys Ultra, 3P, 1NO + 1NC, 12A, 690VAC, 24VDC, without control terminals
  • Protection against overload and short-circuit
  • Control unit includes electronic components and the current adjustment dial
  • Modular, plug & play structure helps you to perform quick maintenance
  • Direct access to detailed information for every motor starter of your installation
  • Advanced motor management system
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
Instruction sheet
Product Page Link
Product Data Sheet
TeSys U standard reversing power base, 3 poles (3NO), rated 12A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 5.5kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" reversing starter controller with basic or advanced protection and control functions. It is equipped with a reverser module LU2MB0BL to be supplied with 24V DC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LU2B
Device application motor protection, motor control
Control circuit voltage limits 20...27 V DC in operation, 14.5 V DC drop-out
Product compatibility control unit LUC.12BL, control unit LUC.05BL, control unit LUC.1XBL, control unit LUC.X6BL
Range TeSys
Range of product TeSys Ultra
[Ics] rated service breaking capacity 4 kA at 690 V, 10 kA at 500 V, 50 kA at 440 V, 50 kA at 230 V
Network frequency 40...60 Hz
Poles description 3P
Auxiliary contacts type type mirror contact (1 NC) conforming to IEC 60947-1,  type linked contacts (1 NO + 1 NC) conforming to IEC 60947-4-1
Suitability for isolation yes
[Ie] rated operational current 9 A at 690 V, 12 A at 500 V, 12 A at <= 440 V
Utilisation category AC-41, AC-44, AC-43
Product name TeSys Ultra
[Ith] conventional free air thermal current 12 A
Product or component type reversing power base
[Uc] control circuit voltage 24 V DC
Auxiliary contact composition 1 NO + 1 NC
[Ue] rated operational voltage 690 V AC for power circuit
Complementary
Heat dissipation 1.7-1.7 W for control circuit with LUCM, 2-2 W for control circuit with LUCA, LUCB, LUCC, LUCD
Safe separation of circuit 400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1 appendix N, 400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1 appendix N
Tightening torque power circuit: 1.9-2.5 N.m pozidriv No 2 screwdriver 6 mm, power circuit: 1.9-2.5 N.m Philips No 2 screwdriver 6 mm, power circuit: 1.9-2.5 N.m flat screwdriver 6 mm
Compatibility code LU2B
Mechanical durability 15 Mcycles
Typical current consumption 120 mA at 24 V DC I rms sealed, 120 mA at 24 V DC I maximum while closing
Inrush restraint duration 15 ms DC
Fixing mode screw-fixed (plate), clipped (DIN rail)
Connections - terminals control circuit: without connection, power circuit: screw clamp terminals 2 cable(s) 1.5-6 mm² flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1-6 mm² rigid, power circuit: screw clamp terminals 2 cable(s) 1-6 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 2.5-10 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1-10 mm² rigid
Maximum operating rate 3600 cyc/h
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Height 224 mm
Depth 126 mm
Width 45 mm
Operating time 70 ms closing with LUCA, LUCB, LUCC, LUCD for control circuit, 75 ms closing with LUCM for control circuit, 35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM for control circuit, 75 ms without change of direction for power circuit, 150 ms with change of direction for power circuit
[Ui] rated insulation voltage 600 V conforming to CSA C22.2 No 60947-4-1, 600 V conforming to UL 60947-4-1, 690 V conforming to IEC 60947-6-2 (pollution degree 3)
Standards CSA C22.2 No 60947-4-1, with phase barrier, UL 60947-4-1, with phase barrier, IEC 60947-6-2, EN 60947-6-2
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-6-2
Net weight 1.27 kg
Product certifications Marine, ATEX, ASEFA, EAC, CCC, CSA, UL, CE
Environment
Resistance to fast transients 4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4, 2 kV class 3 serial link conforming to IEC 61000-4-4
Fire resistance 650 °C conforming to IEC 60695-2-12, 960 °C parts supporting live components conforming to IEC 60695-2-12
IP degree of protection IP40 conforming to IEC 60947-1 (front panel outside connection zone), IP20 conforming to IEC 60947-1 (other faces), IP20 conforming to IEC 60947-1 (front panel and wired terminals)
Resistance to electrostatic discharge 8 kV level 4 on contact conforming to IEC 61000-4-2, 8 kV level 3 in open air conforming to IEC 61000-4-2
Protective treatment TH conforming to IEC 60068
Ambient air temperature for storage -40-85 °C
Immunity to voltage dips 70 % / 500 ms conforming to IEC 61000-4-11
Shock resistance 15 gn power poles closed conforming to IEC 60068-2-27, 10 gn power poles open conforming to IEC 60068-2-27
Ambient air temperature for operation -25-70 °C with LUCA, LUCB, LUCC, LUCD, -25-60 °C with LUCM
Operating altitude 2000 m
Immunity to radioelectric fields 10 V conforming to IEC 61000-4-6
Vibration resistance 4 gn (f= 5-300 Hz) power poles closed conforming to IEC 60068-2-27, 2 gn (f= 5-300 Hz) power poles open conforming to IEC 60068-2-27
Immunity to microbreaks 3 ms for control circuit
Resistance to radiated fields 10 V/m 3 conforming to IEC 61000-4-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 15.5 cm
Package 1 Length 25.5 cm
Package 1 Weight 1.281 kg
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 12.062 kg
