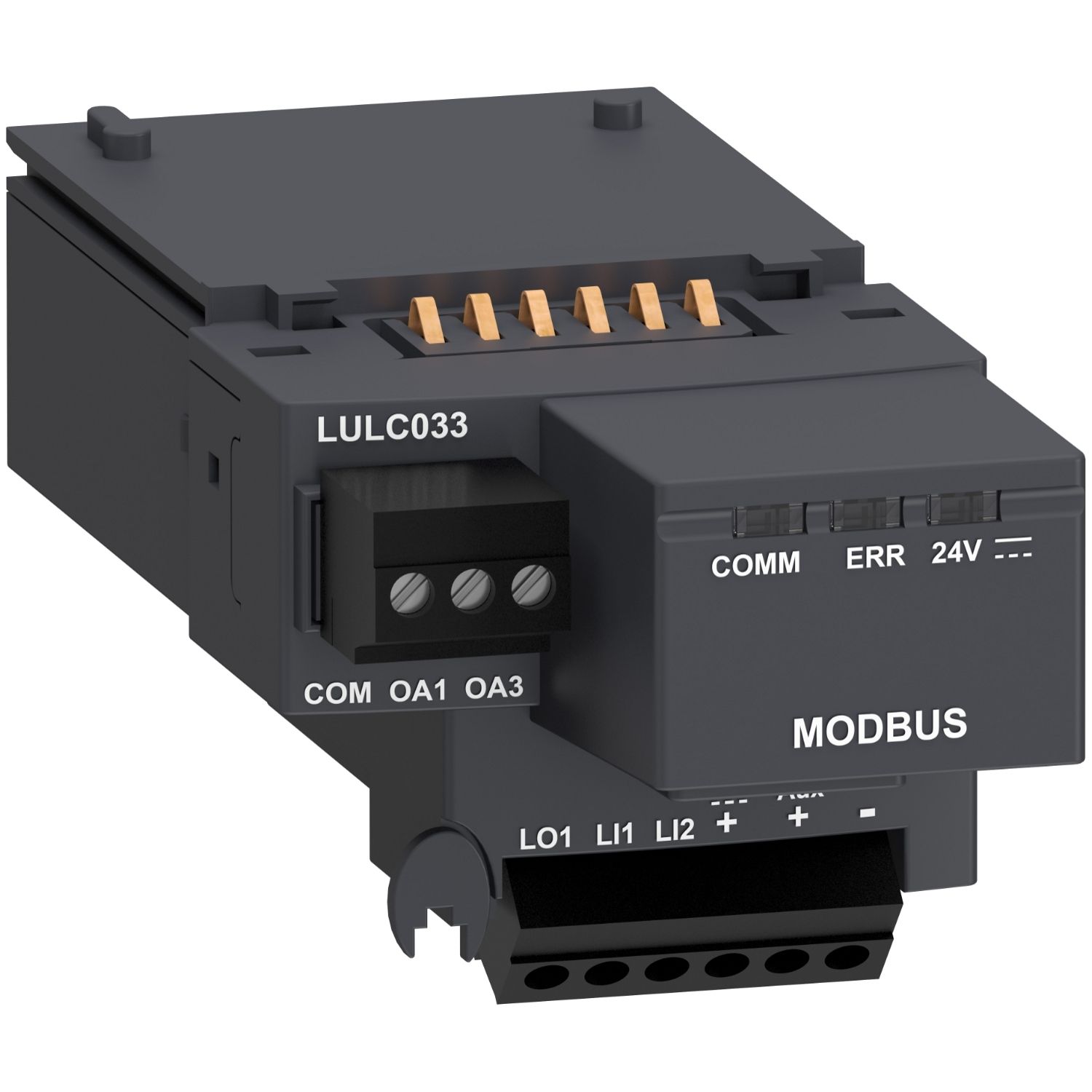

Picture of Communication module, TeSys Ultra, 24VDC, Modbus RTU, front side
SKU:

LULC033

Communication module, TeSys Ultra, 24VDC, Modbus RTU, front side

$567.61
Available for Shipping : 17-Nov-2024
Communication module, TeSys Ultra, 24VDC, Modbus RTU, front side
  • Provides a RJ45 connector for connection to a Modbus network
  • Input type is resistive
  • Modular, plug & play structure helps you to perform quick maintenance
  • Direct access to detailed information for every motor starter of your installation
  • Advanced motor management system
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
TeSys U communication module for Modbus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a RJ45 connector for connection to a Modbus network, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Related products

Picture of cable for Modbus serial link, Zelio logic, 2 x RJ45, cable 0.3m

cable for Modbus serial link, Zelio logic, 2 x RJ45, cable 0.3m

VW3A8306R03
$46.94
View Detail
Picture of cable for Modbus serial link, Zelio logic, 2 x RJ45, cable 1m

cable for Modbus serial link, Zelio logic, 2 x RJ45, cable 1m

VW3A8306R10
$34.18
View Detail
Picture of cable for Modbus serial link, Zelio logic, 2 x RJ45, cable 3m

cable for Modbus serial link, Zelio logic, 2 x RJ45, cable 3m

VW3A8306R30
$46.94
View Detail
Picture of Modbus T tap off, Zelio Logic, 1 x RJ45 male and 2 x RJ45 female, cable 1m

Modbus T tap off, Zelio Logic, 1 x RJ45 male and 2 x RJ45 female, cable 1m

VW3A8306TF10
$111.05
View Detail
Picture of Modbus T tap off, Zelio Logic, 1 x RJ45 male and 2 x RJ45 female, cable 0.3m

Modbus T tap off, Zelio Logic, 1 x RJ45 male and 2 x RJ45 female, cable 0.3m

VW3A8306TF03
$101.30
View Detail
Picture of Pre-wired coil connection, TeSys Ultra, 1 direction, Short cable, Side connection, Modbus, for LUB

Pre-wired coil connection, TeSys Ultra, 1 direction, Short cable, Side connection, Modbus, for LUB

LU9BN11C
$78.89
View Detail
Picture of Pre-wired coil connection, TeSys Ultra, 2 direction, Long cable, side connection, Modbus, for LU2B

Pre-wired coil connection, TeSys Ultra, 2 direction, Long cable, side connection, Modbus, for LU2B

LU9MRC
$127.49
View Detail

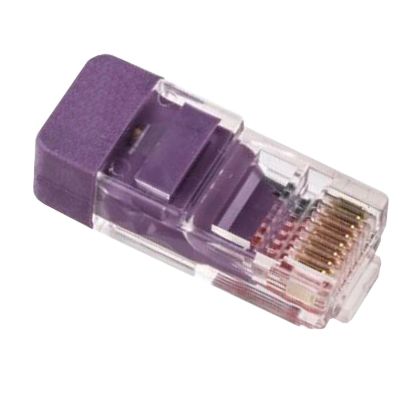

Picture of Modbus line terminator, Altistart 48, 150Ohm, for RJ45 connector
