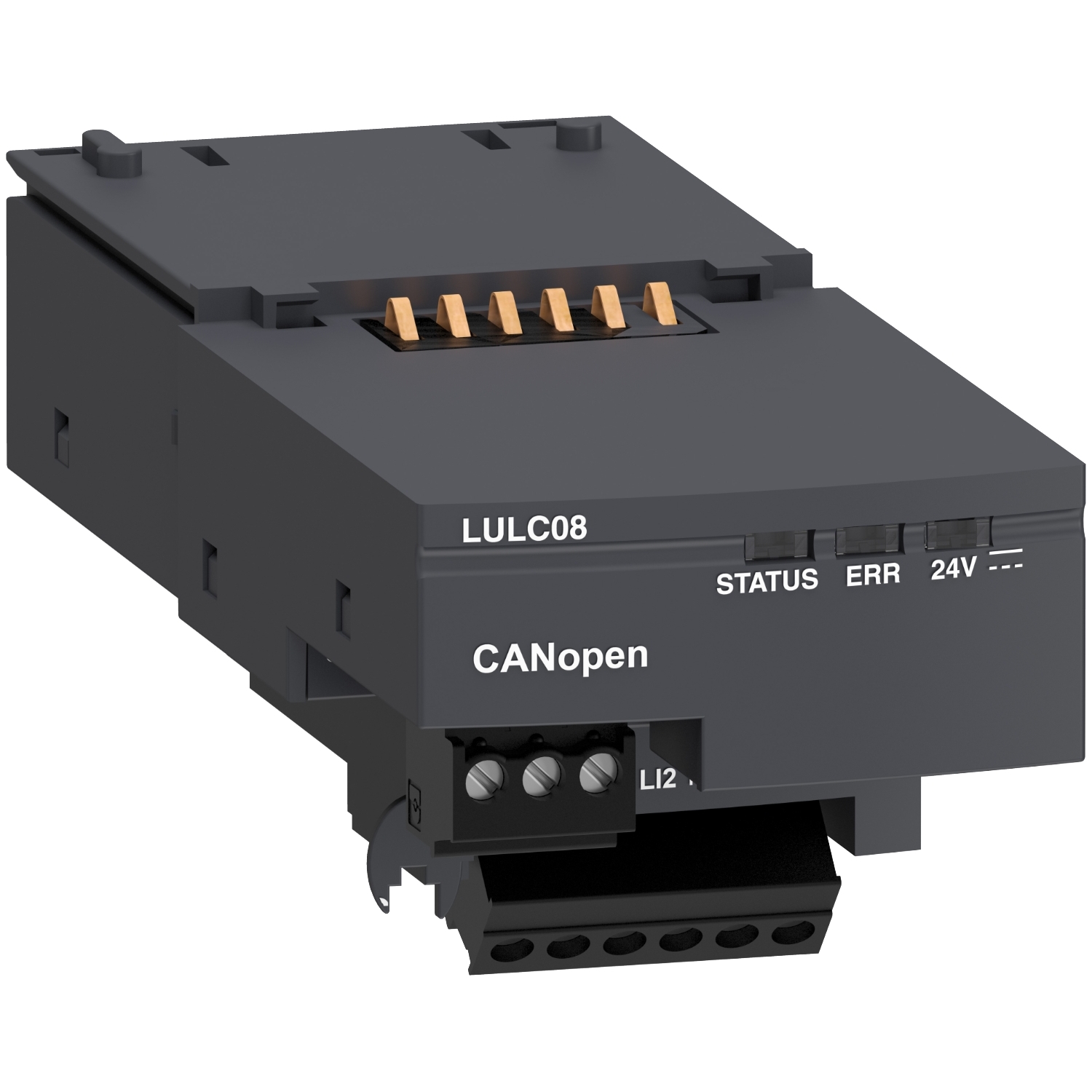

Picture of Communication module, TeSys Ultra, 24VDC, 0 to 500mA, CANopen, front side
SKU:

LULC08

Communication module, TeSys Ultra, 24VDC, 0 to 500mA, CANopen, front side

$684.42
Available for Shipping : 03-Dec-2024
Communication module, TeSys Ultra, 24VDC, 0 to 500mA, CANopen, front side
  • Provides a 9-point SUB-D male connector for connection to a CANopen network
  • Input type is resistive
  • Modular, plug & play structure helps you to perform quick maintenance
  • Direct access to detailed information for every motor starter of your installation
  • Advanced motor management system
Be the first to review this product
Manufacturer: Schneider Electric
System user guide
Instruction sheet
Catalogue
User guide
Product Page Link
Product Data Sheet
TeSys U communication module for CANopen, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a 9-point SUB-D male connector for connection to a CANopen network, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On the bottom, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11L for a LUB base or LU9MRL for a LU2B base. It displays 3 LEDs giving the status of the module (24V) and communication line (STATUS, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LUL
Device application communication
Product compatibility LUCB, LUCM, LUCC, LUCD, LUCL, LUCA
Range TeSys
Range of product TeSys U
Product or component type communication module
Range compatibility TeSys TeSys U LU2B reversing power base, TeSys TeSys U LUB non reversing power base
Complementary
Tightening torque 0.2-0.25 N.m2.5 mm
Connection pitch 3.81 mm
Compatibility code LUL
Bus type CANopen
Physical interface 9-way SUB-D female
Mounting mode plug-in
[Us] rated supply voltage 24 V DC
Function available communication module
Connections - terminals screw clamp terminals 2 cable(s) 0.5-0.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.25-0.34 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.14-0.75 mm²flexible without cable end, screw clamp terminals 2 cable(s) 0.14-0.5 mm²rigid without cable end, screw clamp terminals 1 cable(s) 0.25-1 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.25-0.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.14-1 mm²rigid without cable end, screw clamp terminals 1 cable(s) 0.14-1 mm²flexible without cable end
Logic input positive at 24 V DC - 7 mA
Protection type gL fuse 2 A
Addressing 1...127
Local signalling 3 LEDs front panel
Switching current capacity 0.5 mA at 24 V
Communication port protocol CAN2.B, CAN2.0A
Mounting location front side
Input type resistive
Current consumption 1.5 mA at 24 V DC 20...28 V
Response time 10 ms +/- 30 % change to state 1, 10 ms +/- 30 % change to state 0
Number of outputs 1, 2 dedicated to starter-controller coil operation
Associated cable type AWG 26...AWG 16
Output current <= 500 mA
Environment
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -25-55 °C
Standards CIADS-301 V4.02, DR 303-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.900 cm
Package 1 Width 4.900 cm
Package 1 Length 11.300 cm
Package 1 Weight 104.000 g
Unit Type of Package 2 2
Number of Units in Package 2 35
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.923 kg
