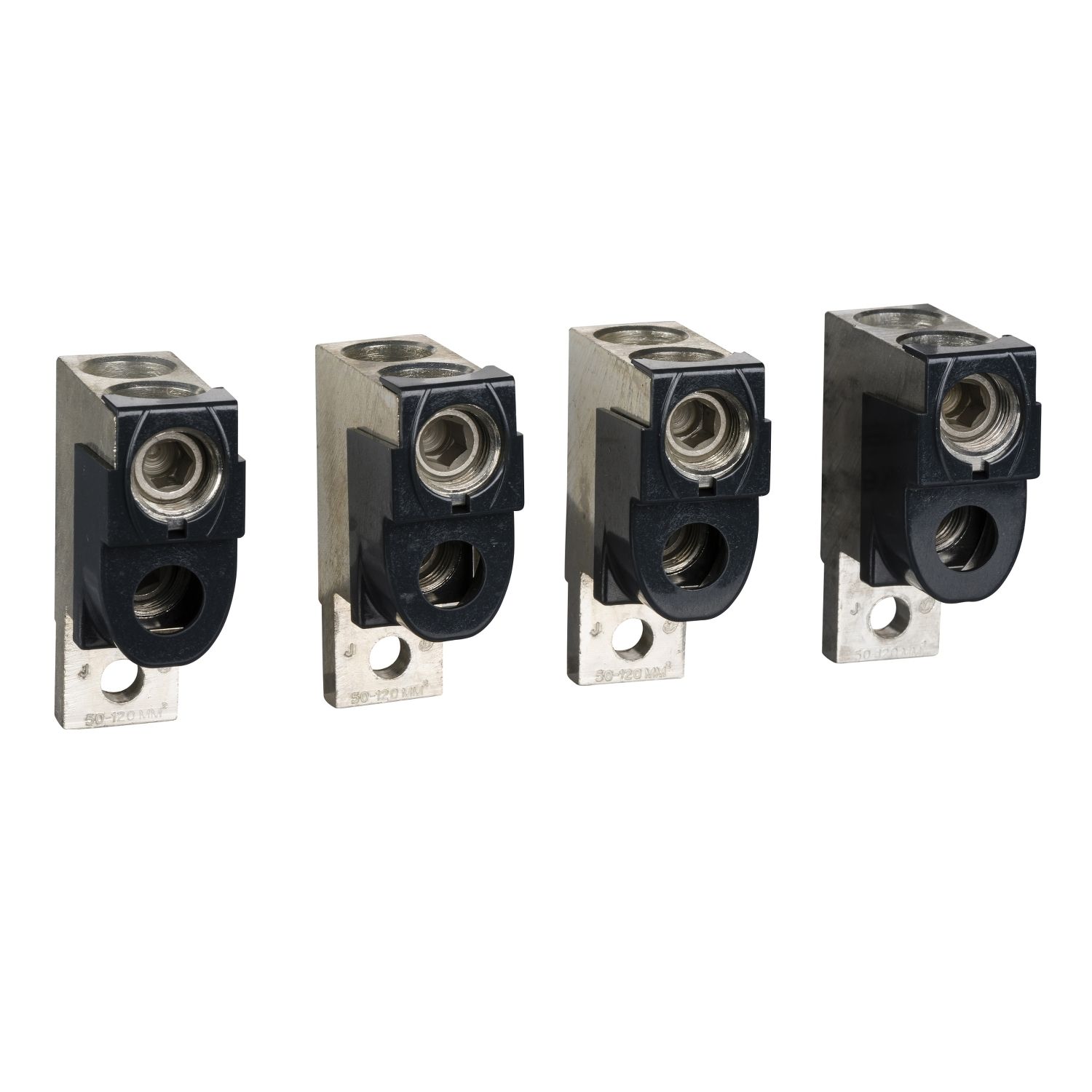

Picture of Aluminium bare cable connectors, ComPacT NSX, for 2 cables 50mm² to 120mm², 250A, set of 4 parts
SKU:

LV429219

Aluminium bare cable connectors, ComPacT NSX, for 2 cables 50mm² to 120mm², 250A, set of 4 parts

$345.16
Available for Shipping : 10-Dec-2024
Aluminium bare cable connectors, ComPacT NSX, for 2 cables 50mm² to 120mm², 250A, set of 4 parts
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
  • Meet your needs with flexibility to achieve system efficiency during the design phase
  • ETA trip unit offers protect overload& short-circuit conditions, measurements, display and current maximeters
  • Samrt& Reliable: digital LCD screen can be set and display important currents parameters for protection
  • Multiple international standards certificated
  • Green Premium with recognized environmental claims
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
User guide
Catalogue
Product Page Link
Product Data Sheet
These accessories are aluminium bare cable connectors for Compact NSX 100/160/250 and EasyPact CVS 100/160/250. These connectors can receive 2 copper or aluminium cables from 50mm² to 120mm². The connectors are screwed directly on the device terminals or right angle terminal extensions. The rated current is up to 250 A. They are sold by set of 4 parts.

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 4
Poles description 4P
Range ComPacT
Product or component type bare cable connector
Accessory / separate part category connection accessory
Range compatibility ComPact Compact INV100...250, ComPact Compact INS100...250, EasyPact EasyPact CVS250, EasyPact EasyPact CVS160, EasyPact EasyPact CVS100, ComPact Compact NSX250 DC, ComPact Compact NSX160 DC, ComPact Compact NSX100 DC, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX250 new generation, ComPacT new generation ComPacT NSX160 new generation, ComPacT new generation ComPacT NSX100 new generation
Range of product ComPact NSX100...250 DC, ComPact NSX100...250, ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation
Complementary
[In] rated current 250-250 A
Connections - terminals screw terminal2 cable(s) 50-120 mm²
Conductor material aluminium
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 11.500 cm
Package 1 Length 13.000 cm
Package 1 Weight 377.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 11.731 kg
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 105.848 kg

Related products

Picture of Circuit breaker, ComPacT NSX100N, 50kA/415VAC, 4 poles, MicroLogic 2.2 trip unit 100A

Circuit breaker, ComPacT NSX100N, 50kA/415VAC, 4 poles, MicroLogic 2.2 trip unit 100A

C10N42D100
$2,495.47
View Detail
Picture of Circuit breaker, ComPacT NSX100N, 50kA/415VAC, 4 poles 3D (neutral not protected), TMD trip unit 100A

Circuit breaker, ComPacT NSX100N, 50kA/415VAC, 4 poles 3D (neutral not protected), TMD trip unit 100A

C10N6TM100
$1,484.11
View Detail
Picture of Circuit breaker, ComPacT NSX160F, 36kA/415VAC, 4 poles, MicroLogic 2.2 trip unit 160A

Circuit breaker, ComPacT NSX160F, 36kA/415VAC, 4 poles, MicroLogic 2.2 trip unit 160A

C16F42D160
$2,391.98
View Detail
Picture of Circuit breaker, ComPacT NSX160F, 36kA/415VAC, 4 poles 3D (neutral not protected), TMD trip unit 125A

Circuit breaker, ComPacT NSX160F, 36kA/415VAC, 4 poles 3D (neutral not protected), TMD trip unit 125A

C16F6TM125
$1,352.40
View Detail
Picture of Circuit breaker, ComPacT NSX160F, 36kA/415VAC, 4 poles 3D (neutral not protected), TMD trip unit 160A

Circuit breaker, ComPacT NSX160F, 36kA/415VAC, 4 poles 3D (neutral not protected), TMD trip unit 160A

C16F6TM160
$1,796.93
View Detail

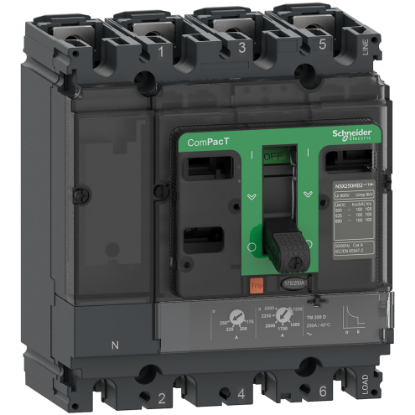

Picture of Circuit breaker, ComPacT NSX160N, 50kA/415VAC, 4 poles 3D (neutral not protected), TMD trip unit 160A
