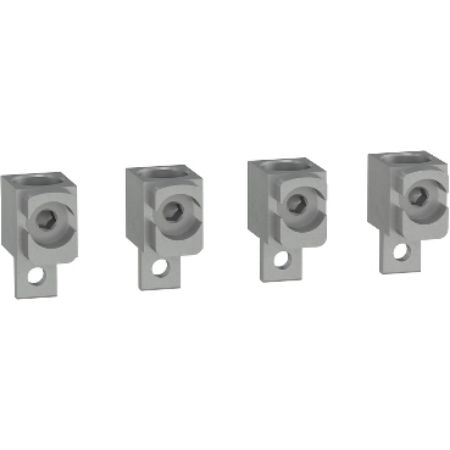

Picture of Aluminium bare cable connectors, ComPacT NSX, for 1 cable 120mm² to 240mm², 250A, set of 4 parts
SKU:

LV429245

Aluminium bare cable connectors, ComPacT NSX, for 1 cable 120mm² to 240mm², 250A, set of 4 parts

$116.54
Available for Shipping : 10-Dec-2024
Aluminium bare cable connectors, ComPacT NSX, for 1 cable 120mm² to 240mm², 250A, set of 4 parts
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
These accessories are aluminium bare cable connectors for Compact NSX 100/160/250. These connectors can receive 1 copper or aluminium cables from 120mm² to 240mm². The connectors snap directly on to the device terminals or are secured by clips to terminal extensions. The rated current is up to 250 A. They are sold by set of 4 parts.

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 4
Poles description 4P
Range ComPacT
Product or component type bare cable connector
Accessory / separate part category connection accessory
Range compatibility ComPact Compact INV100...250, ComPact Compact INS100...250, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100, ComPacT new generation ComPacT NSX250 new generation, ComPacT new generation ComPacT NSX160 new generation, ComPacT new generation ComPacT NSX100 new generation
Range of product ComPact NSX100...250, ComPacT NSX100...250 new generation
Complementary
[In] rated current 250-250 A
Connections - terminals screw terminal1 cable(s) 120-240 mm²
Conductor material aluminium
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.3 cm
Package 1 Width 16.4 cm
Package 1 Length 15.0 cm
Package 1 Weight 455.0 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 14.225 kg
