SKU:

C16F6TM160

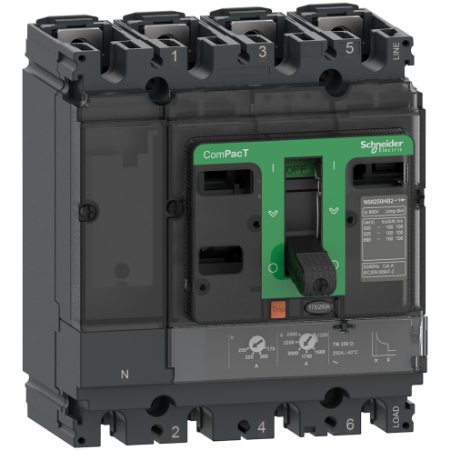

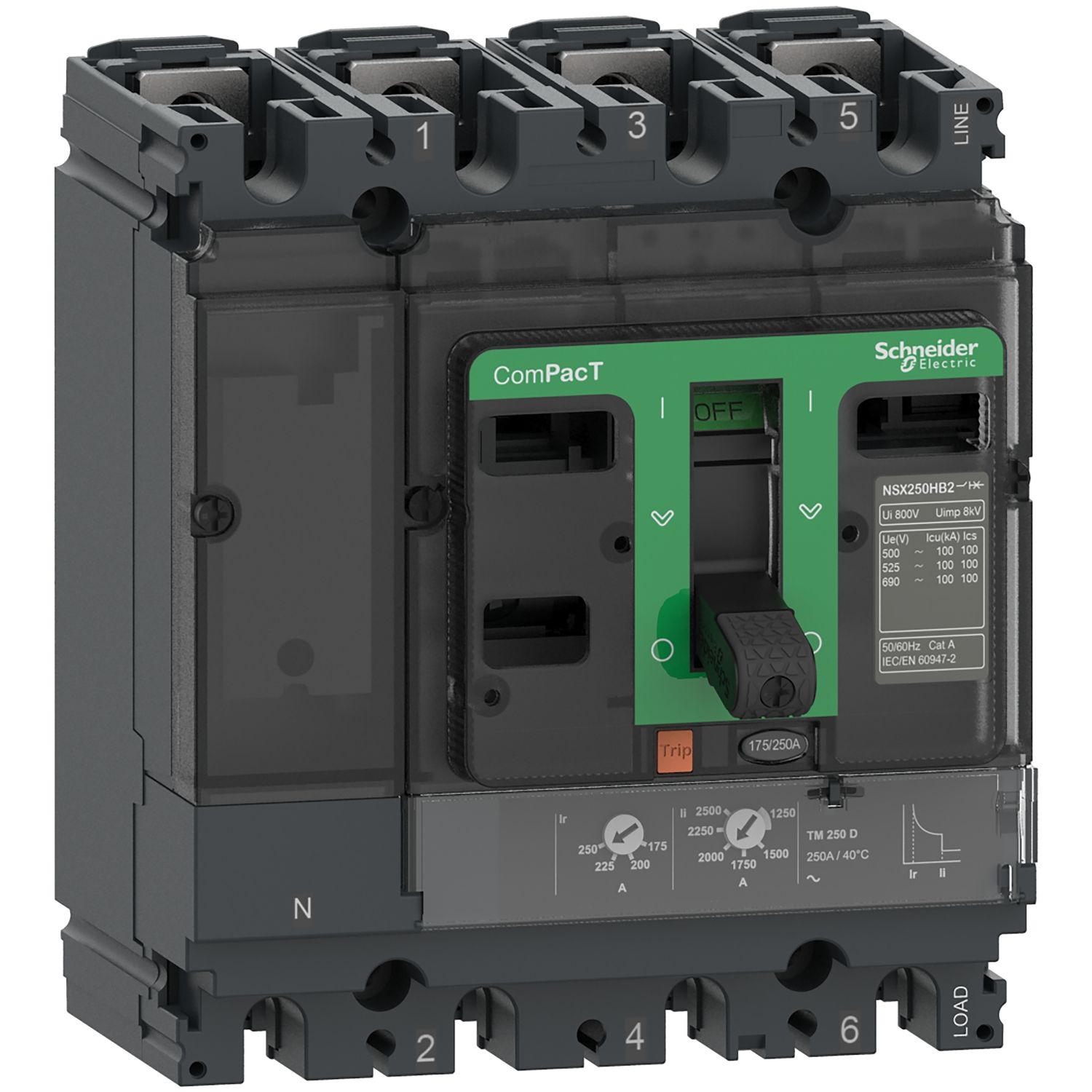

Circuit breaker, ComPacT NSX160F, 36kA/415VAC, 4 poles 3D (neutral not protected), TMD trip unit 160A

$1,796.93

Qty:

Product Selector

Circuit breaker, ComPacT NSX160F, 36kA/415VAC, 4 poles 3D (neutral not protected), TMD trip unit 160A

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 26-Sep-2024

Instruction sheet

Product environmental

End of life manual

Declaration of conformity

This ComPacT NSX160F is a complete 4P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 160A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX160F is part of Schneider Electric EcoStruxure Power architecture.

Products specifications

Attribute name	Attribute value
Main
Device application	distribution
Suitability for isolation	yes conforming to EN/IEC 60947-2
Trip unit technology	thermal-magnetic
Neutral position	left
Utilisation category	category A
Network type	AC
Device short name	NSX160F
Breaking capacity code	F 36 kA 415 V AC
Breaking capacity	35 kA at 480 V AC 50/60 Hz conforming to UL 508, 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Mounting mode	fixed
Control type	toggle
Range	ComPacT new generation
Protected poles description	3D
Range of product	ComPacT NSX100...250 new generation
Trip unit name	TM-D
Poles description	4P
Product name	ComPacT NSX new generation
Product or component type	circuit breaker
Trip unit protection functions	LI
[Ue] rated operational voltage	690 V AC 50/60 Hz
[In] rated current	160 A at 40 °C
Network frequency	50/60 Hz
Complementary
[Uimp] rated impulse withstand voltage	8 kV
Compatibility code	NSX160
Trip unit rating	160-160 A at 40 °C
Long time pick-up adjustment type Ir	adjustable
Electrical durability	7500 cycles at 690 V In, 15000 cycles at 690 V In/2, 20000 cycles at 440 V In, 40000 cycles at 440 V In/2
Downside connection	front
Earth-leakage protection	without
Height	161 mm
[Ics] rated service breaking capacity	8 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 22 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage	800 V AC 50/60 Hz
[tr] long-time delay adjustment range	15-15 s at 6 x Ir, 120-400 s at 1.5 x In
Net weight	2.6 kg
Long time delay adjustment type	fixed
Number of slots	5 slot(s)
Power dissipation per pole	13.95 W
Connection pitch	35 mm
Mechanical durability	40000 cycles
Upside connection	front
Long time pick-up adjustment range	0.7...1 x In
Neutral protection setting	no protection (3D)
Protection type	I : for short-circuit protection (magnetic), L : for overload protection (thermal)
Depth	86 mm
Width	140 mm
Mounting position	flat on the back, horizontal and vertical
Instantaneous pick-up adjustment type Ii	fixed
Instantaneous pick-up adjustment range	1250 A
Mounting support	backplate
Environment
Relative humidity	0-95 %
Ambient air temperature for storage	-50-85 °C
Overvoltage category	class II
Operating altitude	2000 m...5000 m with derating, 0...2000 m without derating
Electrical shock protection class	class II
Product certifications	Marine, EAC, CCC
Pollution degree	3 conforming to IEC 60664-1
IP degree of protection	IP40 conforming to IEC 60529
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK07 conforming to IEC 62262
Standards	EN/IEC 60947
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	14.0 cm
Package 1 Width	14.5 cm
Package 1 Length	19.0 cm
Package 1 Weight	2.378 kg
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	14.642 kg
