SKU:

LV429337T

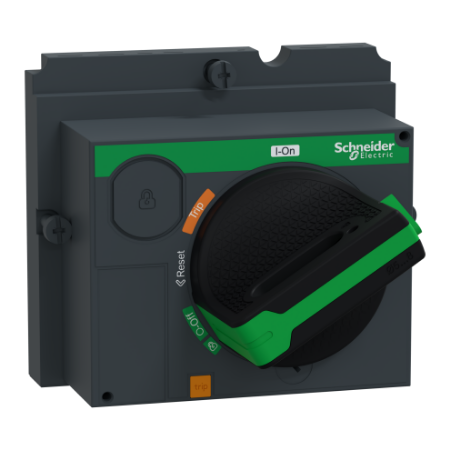

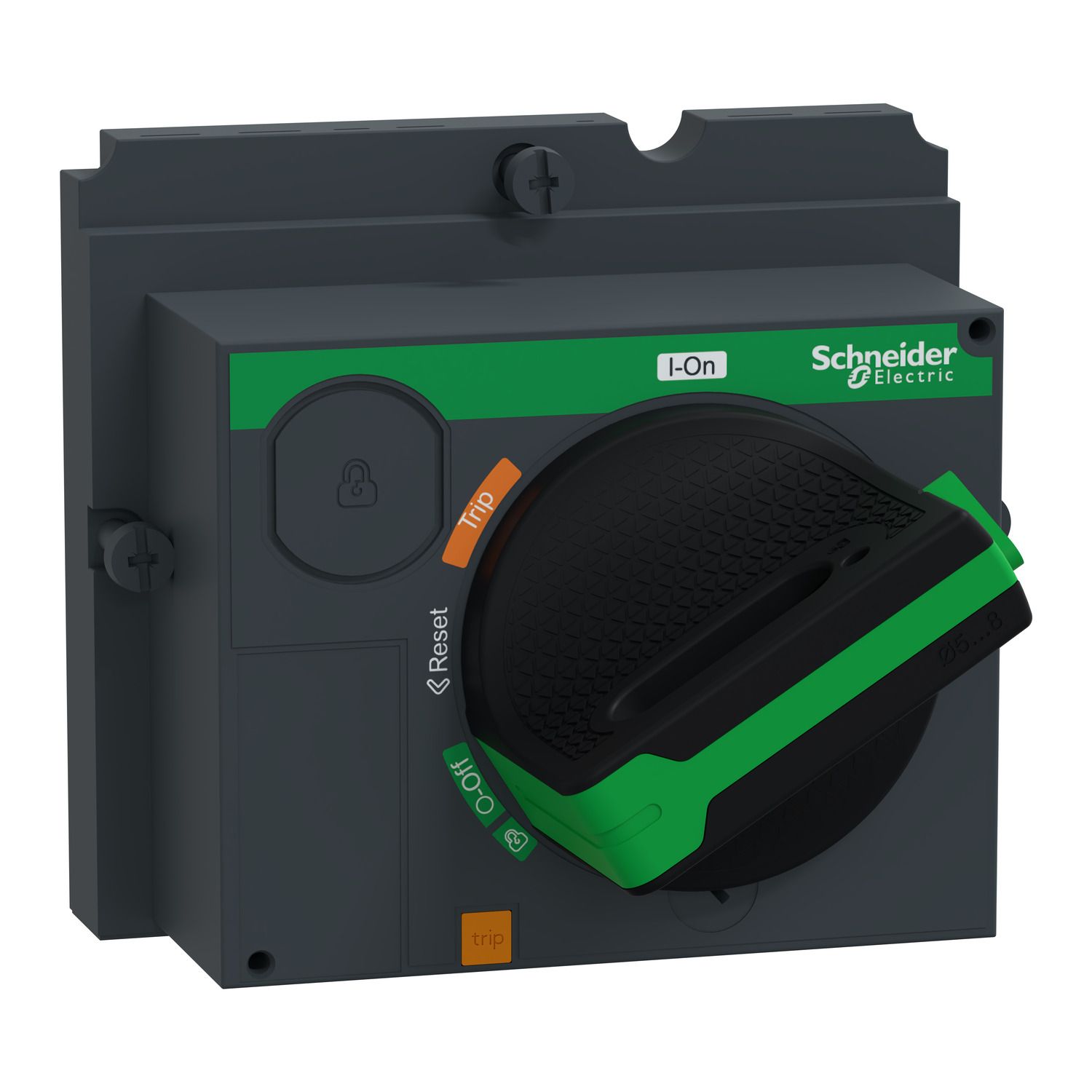

Direct rotary handle, ComPacT NSX100/160/250, black handle, IP40

$220.62

Qty:

Available for Shipping : 24-Nov-2024

Product Selector

Direct rotary handle, ComPacT NSX100/160/250, black handle, IP40

Schneider Electric green signature style for the entire ComPacT range

Estimated 40% reduction of wiring time for panel builders

Experience easier installation thanks to a new ergonomic front-plate design

Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating

Ergonomic new toggle for easier breaker manual operation

Be the first to review this product

Manufacturer: Schneider Electric

End of life manual

Product environmental

Instruction sheet

User guide

Catalogue

Product Page Link

Product Data Sheet

It is a direct rotary handle for ComPacT NSX 100/160/250, PowerPact Multistandard H/J frames and EasyPact CVS 100/160/250 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.
