SKU:

LV429329

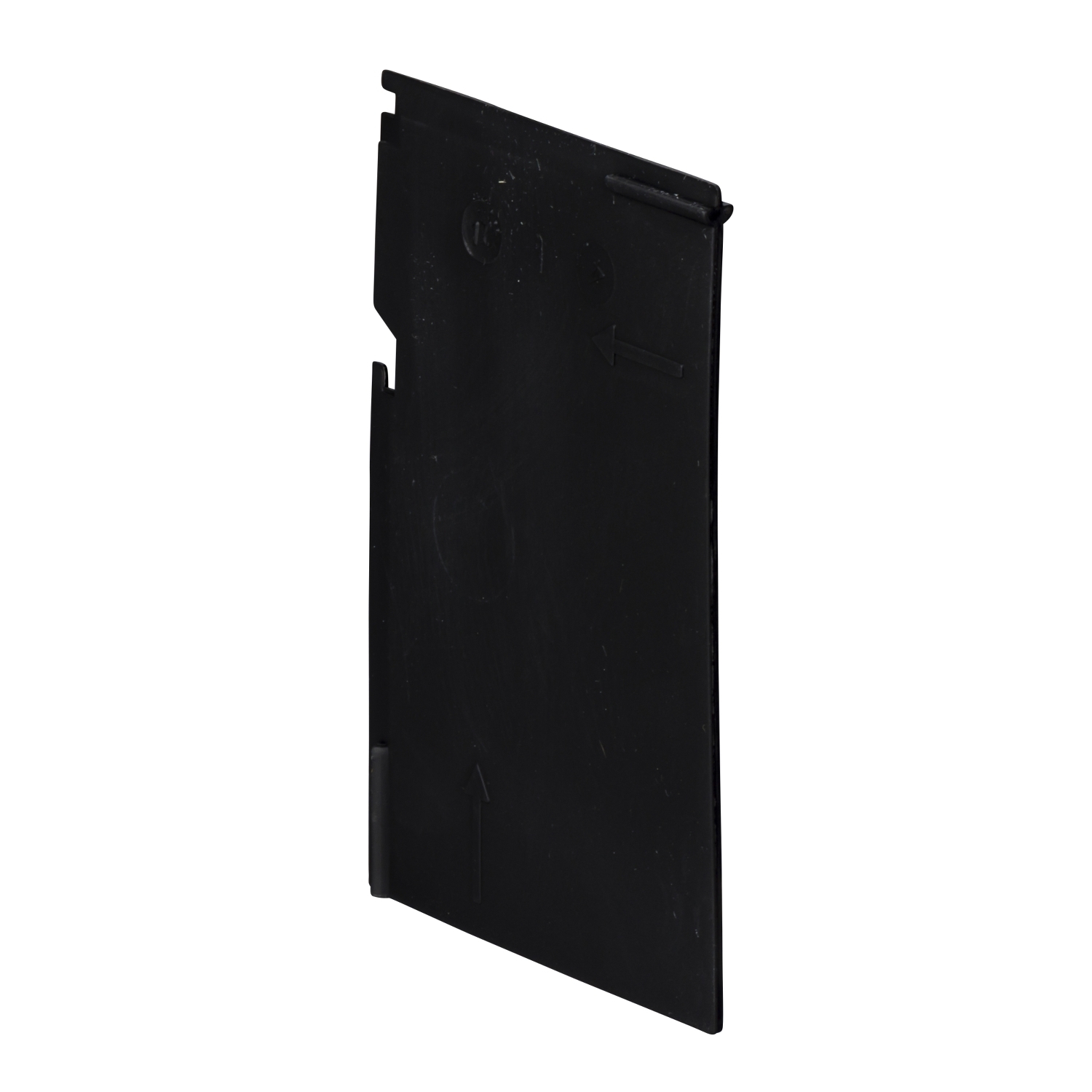

Interphase barriers, ComPacT NSX 100/160/250, set of 6 parts

$60.80
Available for Shipping : 24-Nov-2024
Interphase barriers, ComPacT NSX 100/160/250, set of 6 parts
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
  • Meet your needs with flexibility to achieve system efficiency during the design phase
  • ETA trip unit offers protect overload& short-circuit conditions, measurements, display and current maximeters
  • Samrt& Reliable: digital LCD screen can be set and display important currents parameters for protection
  • Multiple international standards certificated
  • Green Premium with recognized environmental claims
Manufacturer: Schneider Electric
This is an insulation accessory for Compact NSX 100/160/250 or EasyPact CVS 100/160/250. These interphase barriers reinforce insulation level at the power connection points. They are mandatory for voltages above 500 VAC for both fixed devices and adapters on plug in base. Interphase barriers are clipped easily between front or rear connection terminals. They are not compatible with terminal shields. It is a set of 6 parts.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part type insulation accessories
Quantity per set set of 6
Range ComPacT
Product or component type interphase barrier
Range compatibility ComPact Compact INV100...250, ComPact INS250, PowerPact PowerPact J, PowerPact PowerPact H, EasyPact EasyPact CVS250, EasyPact EasyPact CVS160, EasyPact EasyPact CVS100, ComPact Compact NSX250 DC, ComPact Compact NSX160 DC, ComPact Compact NSX100 DC, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100, ComPacT new generation ComPacT NSX DC new generation NSX250 DC, ComPacT new generation ComPacT NSX DC new generation NSX160 DC, ComPacT new generation ComPacT NSX DC new generation NSX100 DC, ComPacT new generation ComPacT NSX250 new generation, ComPacT new generation ComPacT NSX160 new generation, ComPacT new generation ComPacT NSX100 new generation
Range of product ComPact NSX100...250 DC, ComPact NSX100...250, ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation
Complementary
Product compatibility plug-in base, circuit-breaker
Compatibility code insulation screens
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.0 cm
Package 1 Width 11.1 cm
Package 1 Length 11.6 cm
Package 1 Weight 102.0 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.649 kg
