SKU:

LV429259

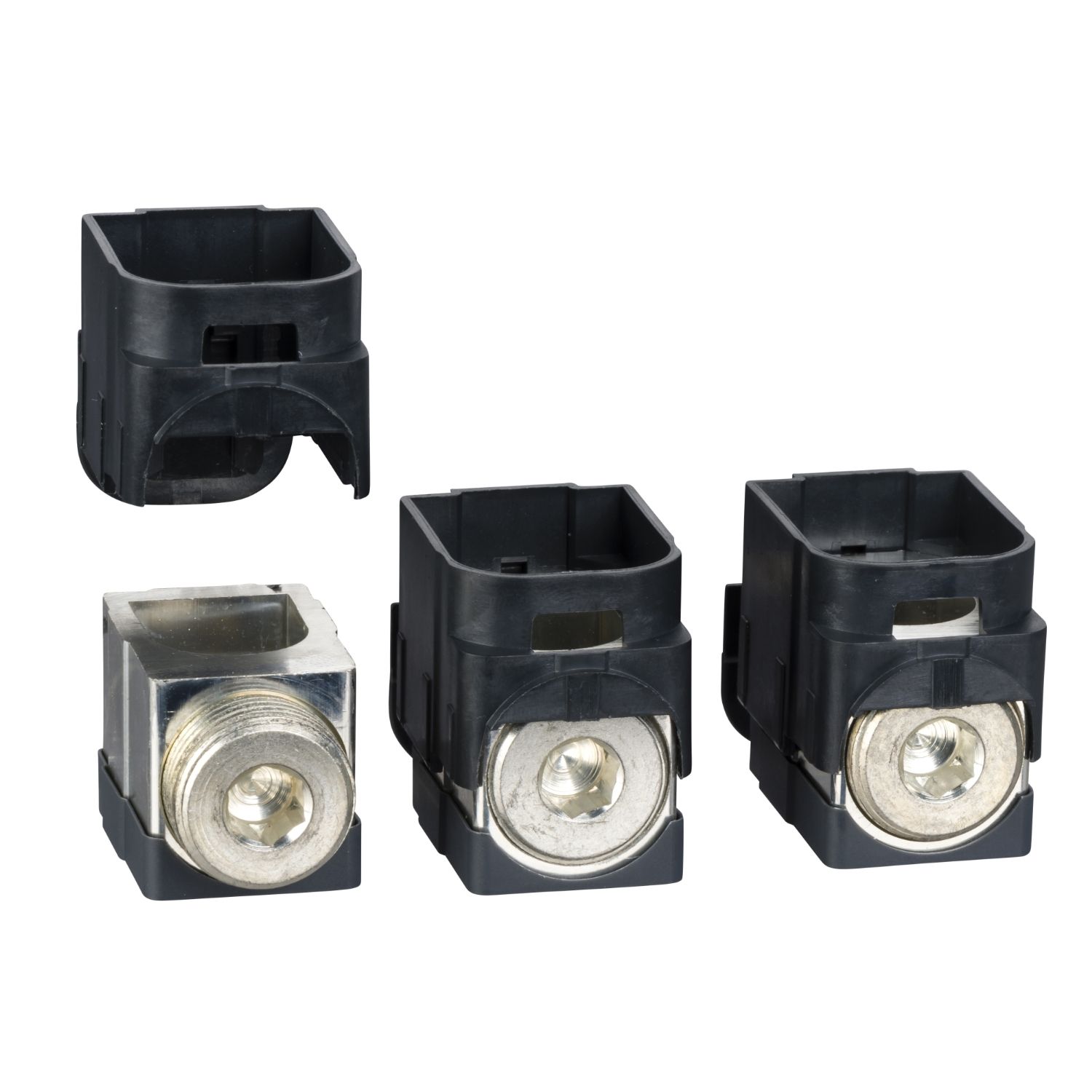

Aluminium bare cable connectors, ComPacT NSX, for 1 cable 120mm² to 185mm², 250A, set of 3 parts

$66.91

Qty:

Available for Shipping : 24-Nov-2024

Product Selector

Aluminium bare cable connectors, ComPacT NSX, for 1 cable 120mm² to 185mm², 250A, set of 3 parts

Schneider Electric green signature style for the entire ComPacT range

Estimated 40% reduction of wiring time for panel builders

Experience easier installation thanks to a new ergonomic front-plate design

Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating

Ergonomic new toggle for easier breaker manual operation

Meet your needs with flexibility to achieve system efficiency during the design phase

ETA trip unit offers protect overload& short-circuit conditions, measurements, display and current maximeters

Samrt& Reliable: digital LCD screen can be set and display important currents parameters for protection

Multiple international standards certificated

Green Premium with recognized environmental claims

Be the first to review this product

Manufacturer: Schneider Electric

User guide

Instruction sheet

Catalogue

Product Page Link

Product Data Sheet

These accessories are aluminium bare cable connectors for Compact NSX 100/160/250 and EasyPact CVS 100/160/250. These connectors can receive 1 copper or aluminium cables from 120mm² to 185mm². The connectors snap directly on to the device terminals or are secured by clips to terminal extensions. The rated current is up to 250 A. They are sold by set of 3 parts.

Products specifications

Attribute name	Attribute value
Main
Quantity per set	set of 3
Poles description	3P
Range	ComPacT
Product or component type	bare cable connector
Accessory / separate part category	connection accessory
Range compatibility	ComPact Compact INV100...250, ComPact Compact INS100...250, EasyPact EasyPact CVS250, EasyPact EasyPact CVS160, EasyPact EasyPact CVS100, ComPact Compact NSX250 DC, ComPact Compact NSX160 DC, ComPact Compact NSX100 DC, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX250 new generation, ComPacT new generation ComPacT NSX160 new generation, ComPacT new generation ComPacT NSX100 new generation
Range of product	ComPact NSX100...250 DC, ComPact NSX100...250, ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation
Complementary
[In] rated current	250-250 A
Connections - terminals	screw terminal1 cable(s) 120-185 mm²
Conductor material	aluminium
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	12.000 cm
Package 1 Width	3.500 cm
Package 1 Length	15.000 cm
Package 1 Weight	170.000 g
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	20.000 cm
Package 2 Width	35.500 cm
Package 2 Length	10.700 cm
Package 2 Weight	1.209 kg
Unit Type of Package 3	3
Number of Units in Package 3	30
Package 3 Height	30.000 cm
Package 3 Width	40.000 cm
Package 3 Length	60.000 cm
Package 3 Weight	6.673 kg
