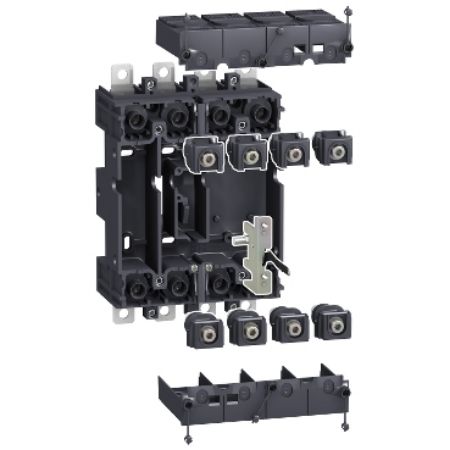

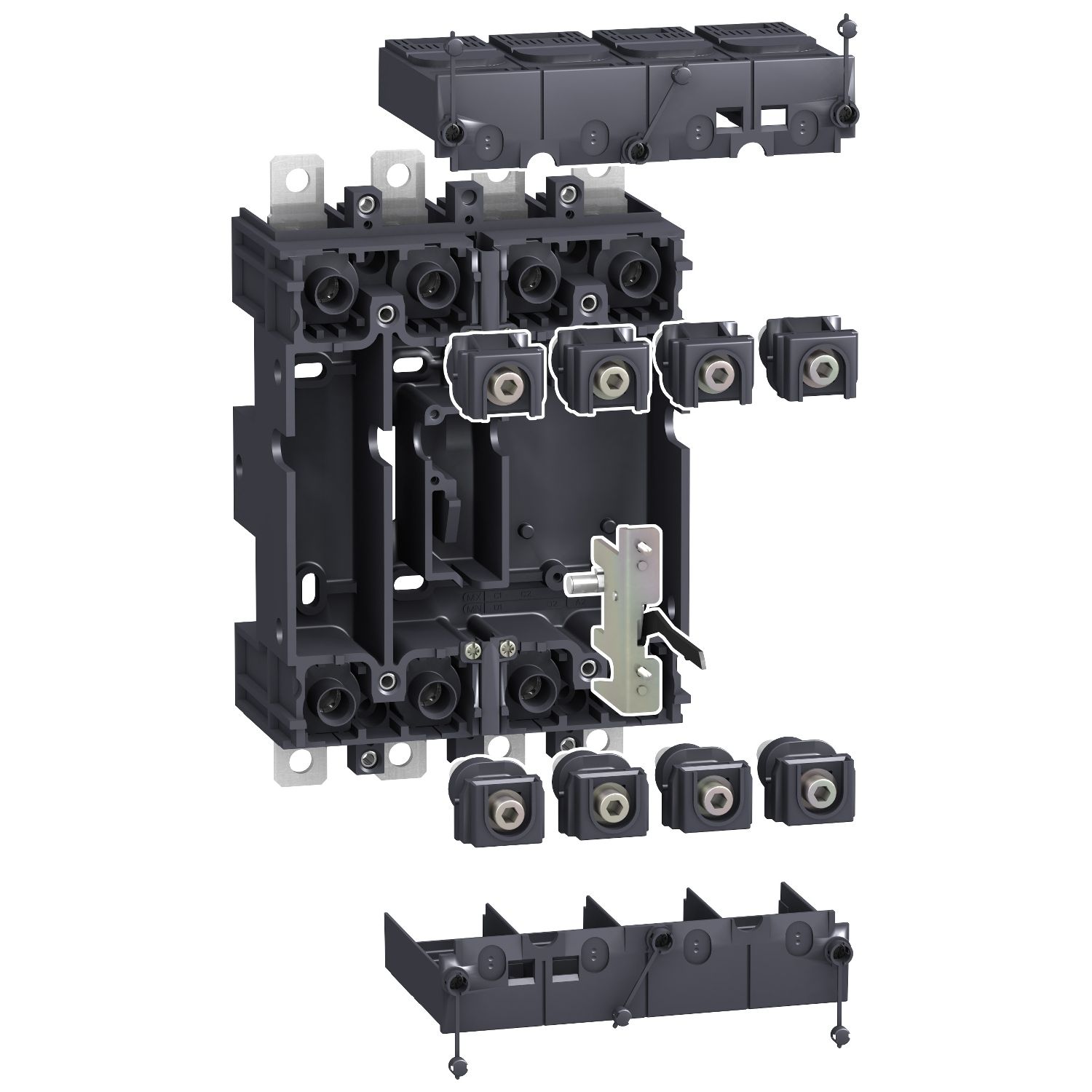

Picture of plug in base, ComPact NSX100/160/250, front/rear connected, 4 poles
SKU:

LV429267

plug in base, ComPact NSX100/160/250, front/rear connected, 4 poles

Old price: $365.75 INC GST
$299.18 INC GST
Available for Shipping : 08-Dec-2025
plug in base, ComPact NSX100/160/250, front/rear connected, 4 poles
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Circularity Profile
User guide
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This is a plug-in base for 4 poles Compact NSX 100/160/250 circuit breakers. The plug-in base is part of a complete plug-in kit. A plug-in configuration is made by adding a plug-in kit to a fixed Compact NSX device. A plug-in configuration allows to install or extract rapidly and easily the circuit breaker from its base. This operation can be done without connecting or disconnecting the power circuit.

Products specifications

Attribute name Attribute value
Main
Range ComPacT
Accessory / separate part category mounting accessory
Range of product ComPact NSX100...250 DC, ComPact NSX100...250
Poles description 4P
Product or component type plug-in base
Range compatibility ComPact Compact NSX250 DC, ComPact Compact NSX160 DC, ComPact Compact NSX100 DC, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100
Complementary
Mounting mode plug-in
Earth-leakage protection without
[In] rated current 250 A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.400 cm
Package 1 Width 14.800 cm
Package 1 Length 22.400 cm
Package 1 Weight 1.050 kg
Unit Type of Package 2 2
Number of Units in Package 2 14
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 15.397 kg
Unit Type of Package 3 3
Number of Units in Package 3 56
Package 3 Height 50.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 72.789 kg
