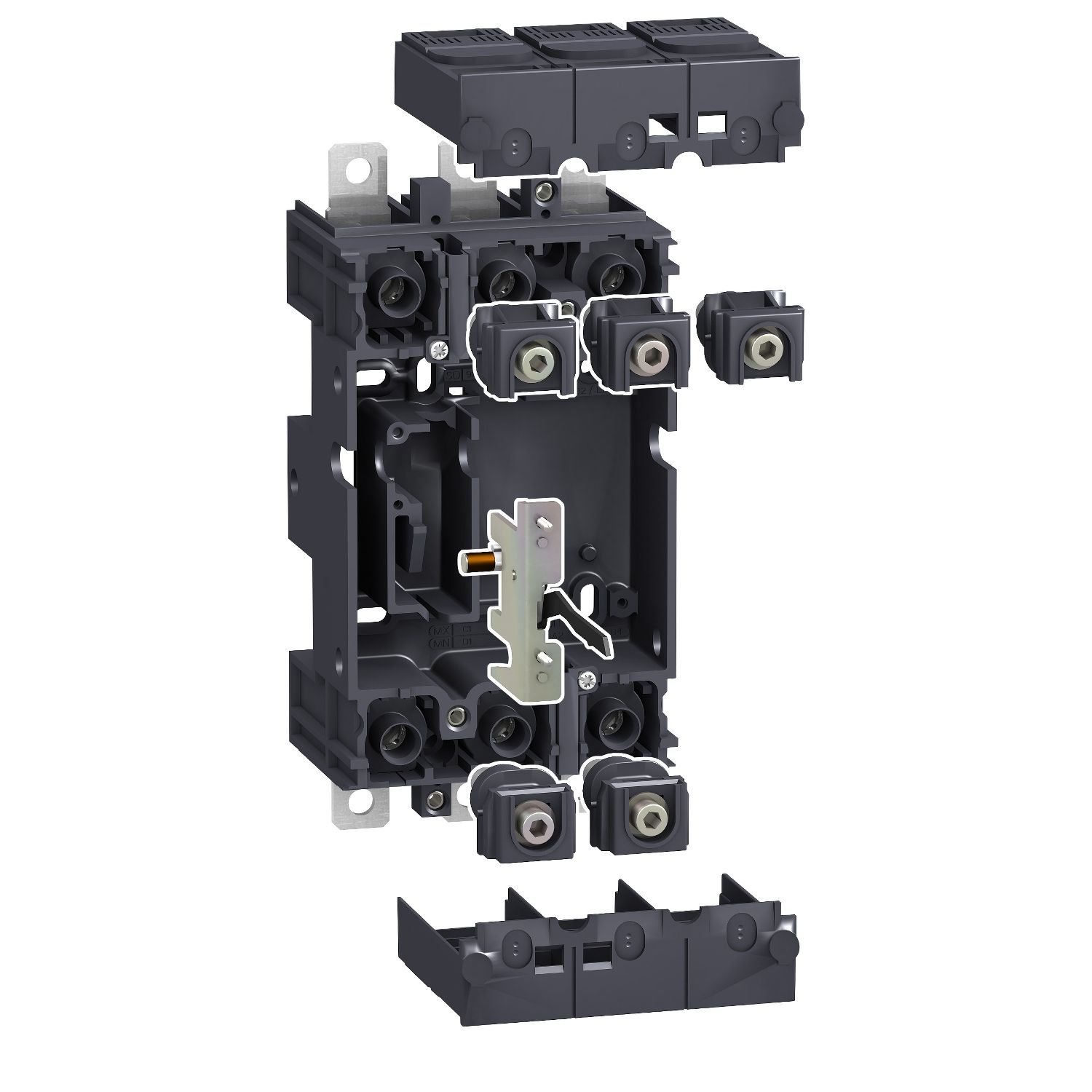

Picture of plug-in kit, ComPact NSX100/160/250, 3 poles
SKU:

LV429289

plug-in kit, ComPact NSX100/160/250, 3 poles

$592.70
Available for Shipping : 12-Dec-2024
plug-in kit, ComPact NSX100/160/250, 3 poles
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
User guide
Catalogue
Product Page Link
Product Data Sheet
This is a plug-in kit for 3 poles Compact NSX 100/160/250 fixed circuit breakers. A plug-in configuration is made by adding a plug-in kit to a fixed Compact NSX device. This kit includes a plug-in base (LV429266), 3 power connections (LV429268), 2 short terminal shields (LV429515) and a safety trip interlock (LV429270). A plug-in configuration allows to install or extract rapidly and easily the circuit breaker from its base. This operation can be done without connecting or disconnecting the power circuit.

Products specifications

Attribute name Attribute value
Main
Range ComPacT
Accessory / separate part category mounting accessory
Range of product ComPact NSX100...250 DC, ComPact NSX100...250
Poles description 3P
Product or component type plug-in kit
Range compatibility ComPact Compact NSX250 DC, ComPact Compact NSX160 DC, ComPact Compact NSX100 DC, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100
Complementary
Mounting mode plug-in
Earth-leakage protection without
[In] rated current 250 A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.000 cm
Package 1 Width 30.000 cm
Package 1 Length 40.000 cm
Package 1 Weight 1.722 kg
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 45.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 59.568 kg
