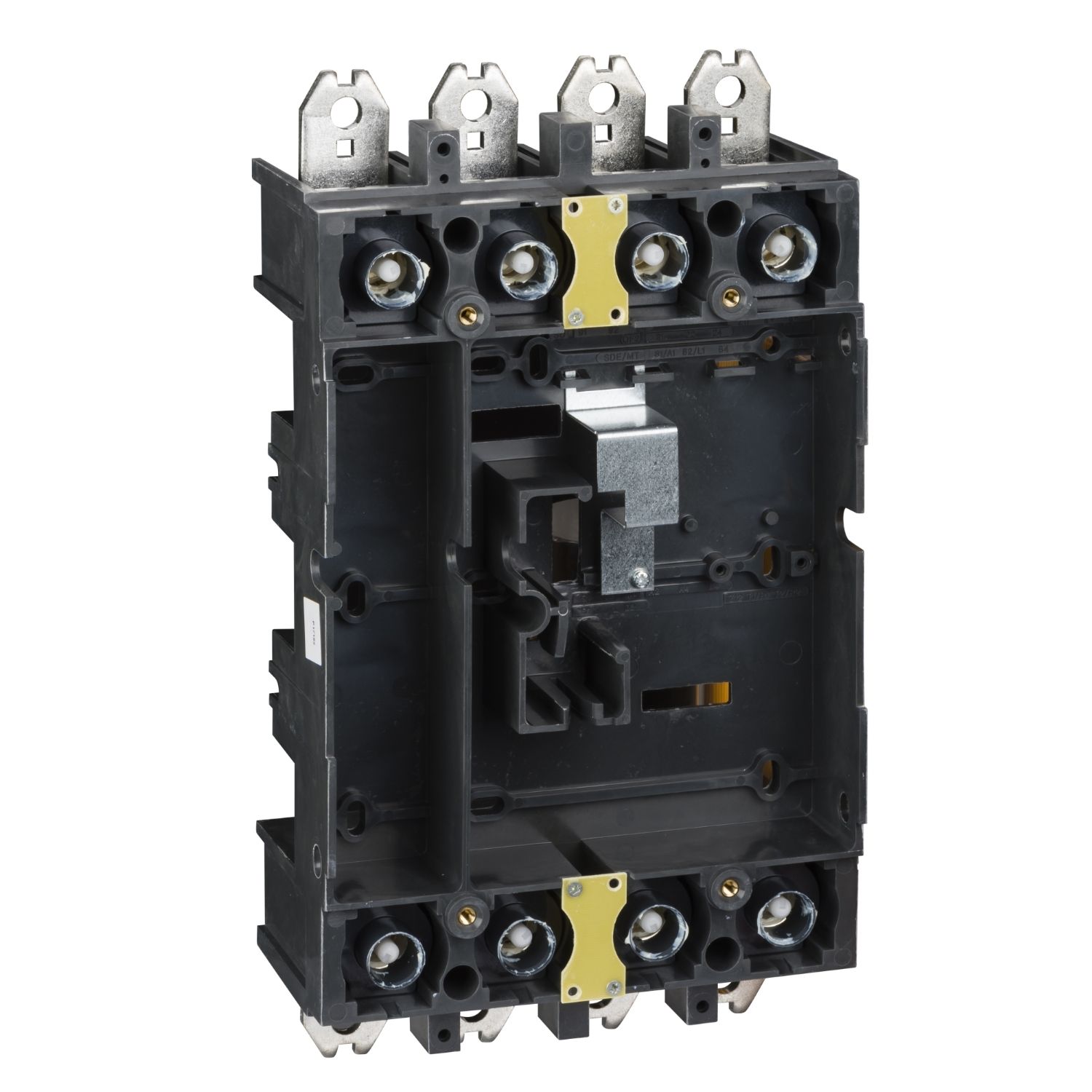

Picture of plug in base, ComPact NSX400/630, front/rear connected, 4 poles
SKU:

LV432517

plug in base, ComPact NSX400/630, front/rear connected, 4 poles

Old price: $1,350.80 INC GST
$1,104.95 INC GST
Available for Shipping : 08-Dec-2025
plug in base, ComPact NSX400/630, front/rear connected, 4 poles
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
User guide
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This is a plug-in base for 4 poles Compact NSX 400/630 circuit breakers. The plug-in base is part of a complete plug-in kit. A plug-in configuration is made by adding a plug-in kit to a fixed Compact NSX device. A plug-in configuration allows to install or extract rapidly and easily the circuit breaker from its base. This operation can be done without connecting or disconnecting the power circuit.

Products specifications

Attribute name Attribute value
Main
Range ComPacT
Accessory / separate part category mounting accessory
Range of product ComPact NSX400...630 DC, ComPact NSX400...630
Poles description 4P
Product or component type plug-in base
Range compatibility ComPact Compact NSX630 DC, ComPact Compact NSX400 DC, ComPact ComPact NSX630, ComPact ComPact NSX400
Complementary
Mounting mode plug-in
Earth-leakage protection without
[In] rated current 630 A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.500 cm
Package 1 Width 20.000 cm
Package 1 Length 35.000 cm
Package 1 Weight 3.653 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 18.770 kg
Unit Type of Package 3 3
Number of Units in Package 3 20
Package 3 Height 50.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 88.364 kg
