Picture of plug-in kit, ComPact NSX400/630, 4 poles
SKU:

LV432539

plug-in kit, ComPact NSX400/630, 4 poles

$2,090.93
Available for Shipping : 20-Nov-2024
plug-in kit, ComPact NSX400/630, 4 poles
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
User guide
Catalogue
Product environmental
Product Page Link
Product Data Sheet

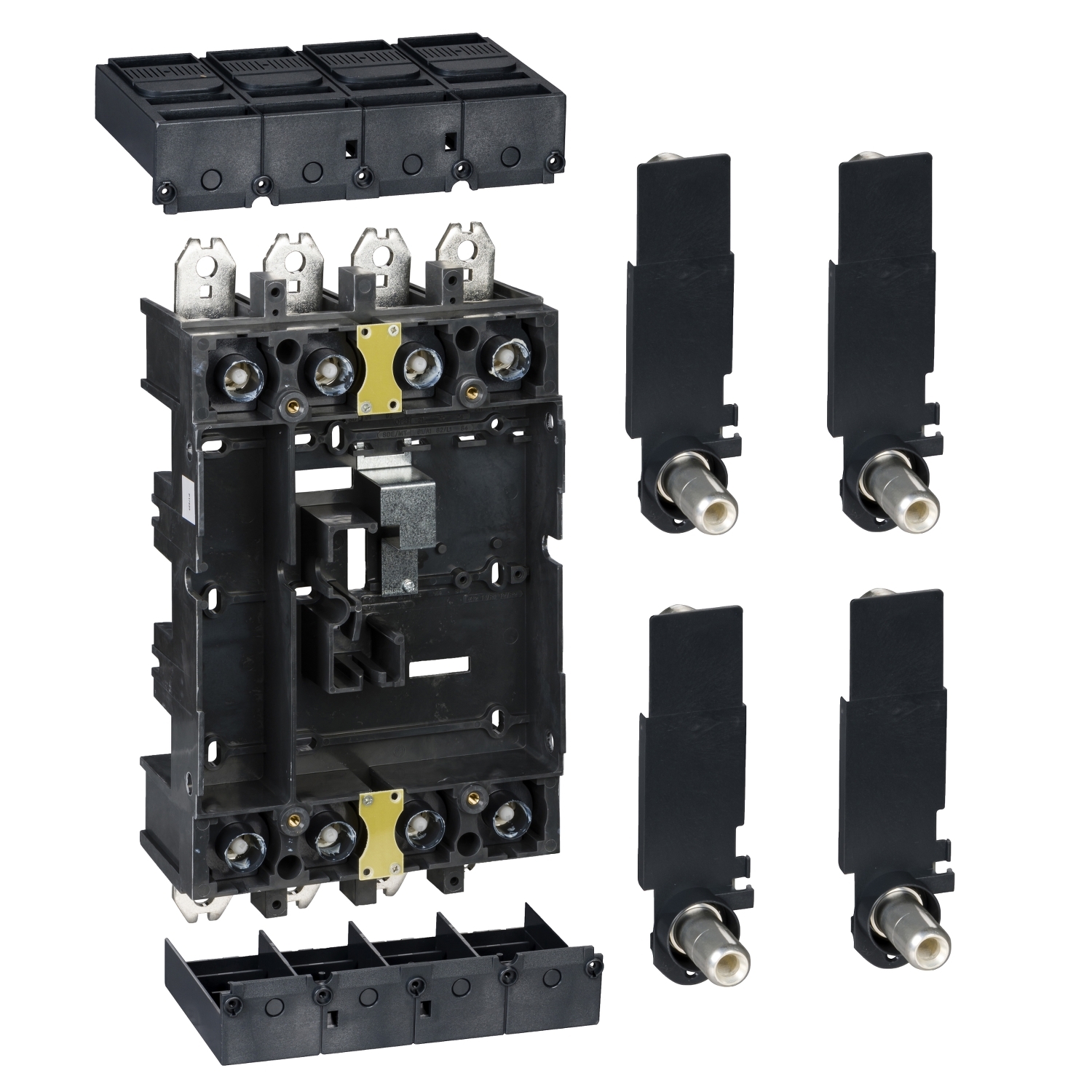

This is a plug-in kit for 4 poles Compact NSX 400/630 fixed circuit breakers. A plug-in configuration is made by adding a plug-in kit to a fixed Compact NSX device. This kit includes a plug-in base (LV432517), 4 power connections (LV432518), 2 short terminal shields (LV432592) and a safety trip interlock (LV432520). A plug-in configuration allows to install or extract rapidly and easily the circuit breaker from its base. This operation can be done without connecting or disconnecting the power circuit.

Products specifications

Attribute name Attribute value
Main
Range ComPacT
Accessory / separate part category mounting accessory
Range of product ComPact NSX400...630 DC, ComPact NSX400...630
Poles description 4P
Product or component type plug-in kit
Range compatibility ComPact Compact NSX630 DC, ComPact Compact NSX400 DC, ComPact ComPact NSX630, ComPact ComPact NSX400
Complementary
Mounting mode plug-in
Earth-leakage protection without
[In] rated current 630 A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.0 cm
Package 1 Width 30.0 cm
Package 1 Length 40.0 cm
Package 1 Weight 4.911 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 10.766 kg
Unit Type of Package 3 3
Number of Units in Package 3 8
Package 3 Height 50.0 cm
Package 3 Width 80.0 cm
Package 3 Length 120.0 cm
Package 3 Weight 55.064 kg
