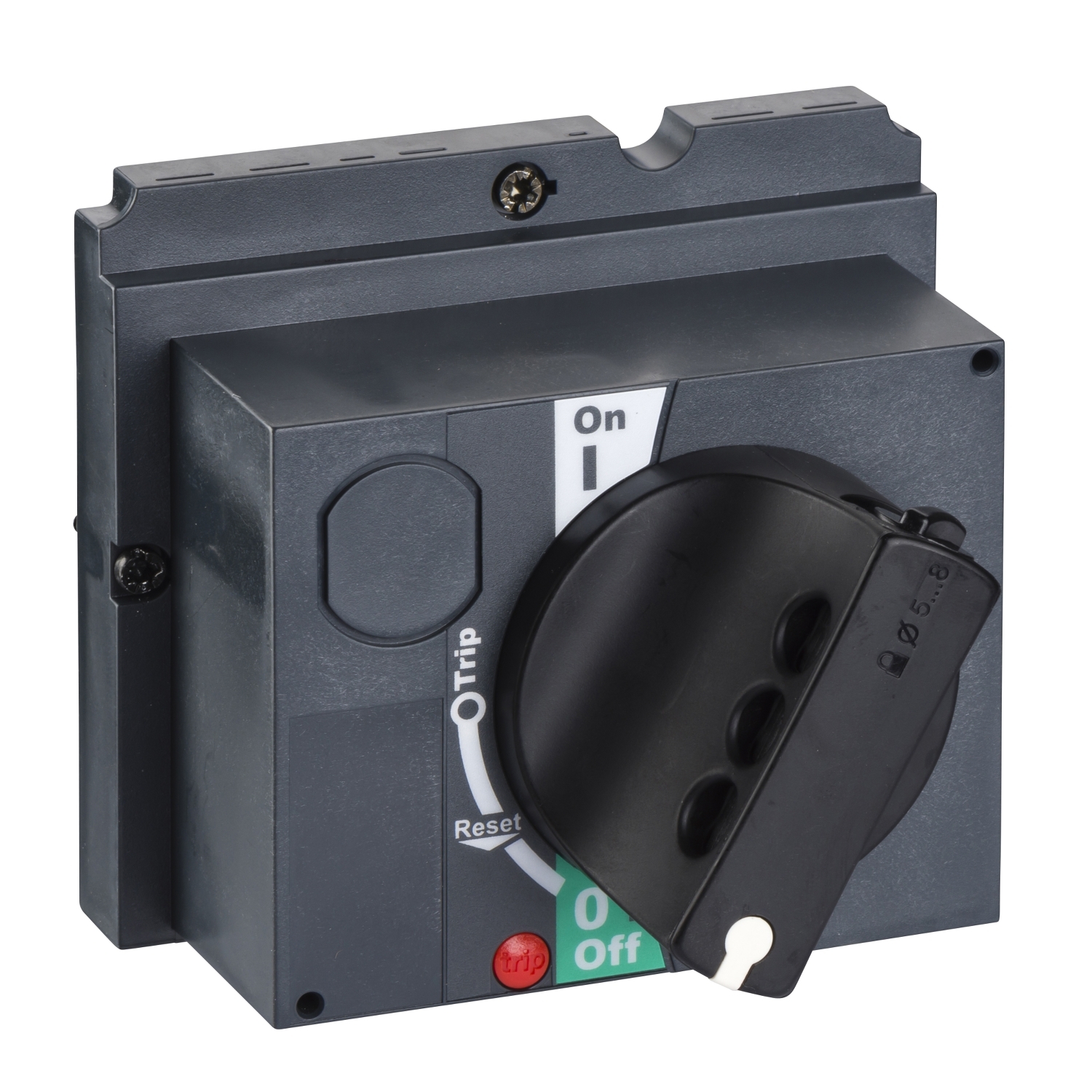

Picture of Direct rotary handle, ComPact NSX 100/160/250, black handle, IP40
SKU:

LV429337

Direct rotary handle, ComPact NSX 100/160/250, black handle, IP40

$185.61 INC GST
Availability: Please contact our sales team on 1300 724 622.
Direct rotary handle, ComPact NSX 100/160/250, black handle, IP40
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
End of life manual
Product environmental
User guide
Catalogue
Product Page Link
Product Data Sheet
It is a direct rotary handle for Compact NSX 100/160/250, PowerPact Multistandard H/J frames and EasyPact CVS 100/160/250 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.

Products specifications

Attribute name Attribute value
Main
Range of product ComPact NSX100...250
Rotary handle mounting style direct
Accessory / separate part type control accessories
Product or component type rotary handle
Handle colour black
Handle front plate colour black
Complementary
Rotary handle mounting location front
Rotary handle padlocking 1 to 3 padlocks, padlock in OFF position
Range compatibility PowerPact PowerPact Multistandard, EasyPact EasyPact CVS250, EasyPact EasyPact CVS160, EasyPact EasyPact CVS100, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100
Environment
IP degree of protection IP40
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.53 cm
Package 1 Width 9.72 cm
Package 1 Length 11.23 cm
Package 1 Weight 260 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 9 kg
Unit Type of Package 3 3
Number of Units in Package 3 120
Package 3 Height 50 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 45.904 kg
Unit Type of Package 4 4
Number of Units in Package 4 360
Package 4 Height 90 cm
Package 4 Width 80 cm
Package 4 Length 120 cm
Package 4 Weight 102.16 kg
