Picture of Mounting plate, Linergy BZ, Plate GV5/NSX 100-250 3P 106x192 IEC/UL for 60 Busbar Interaxis
SKU:

LV429372

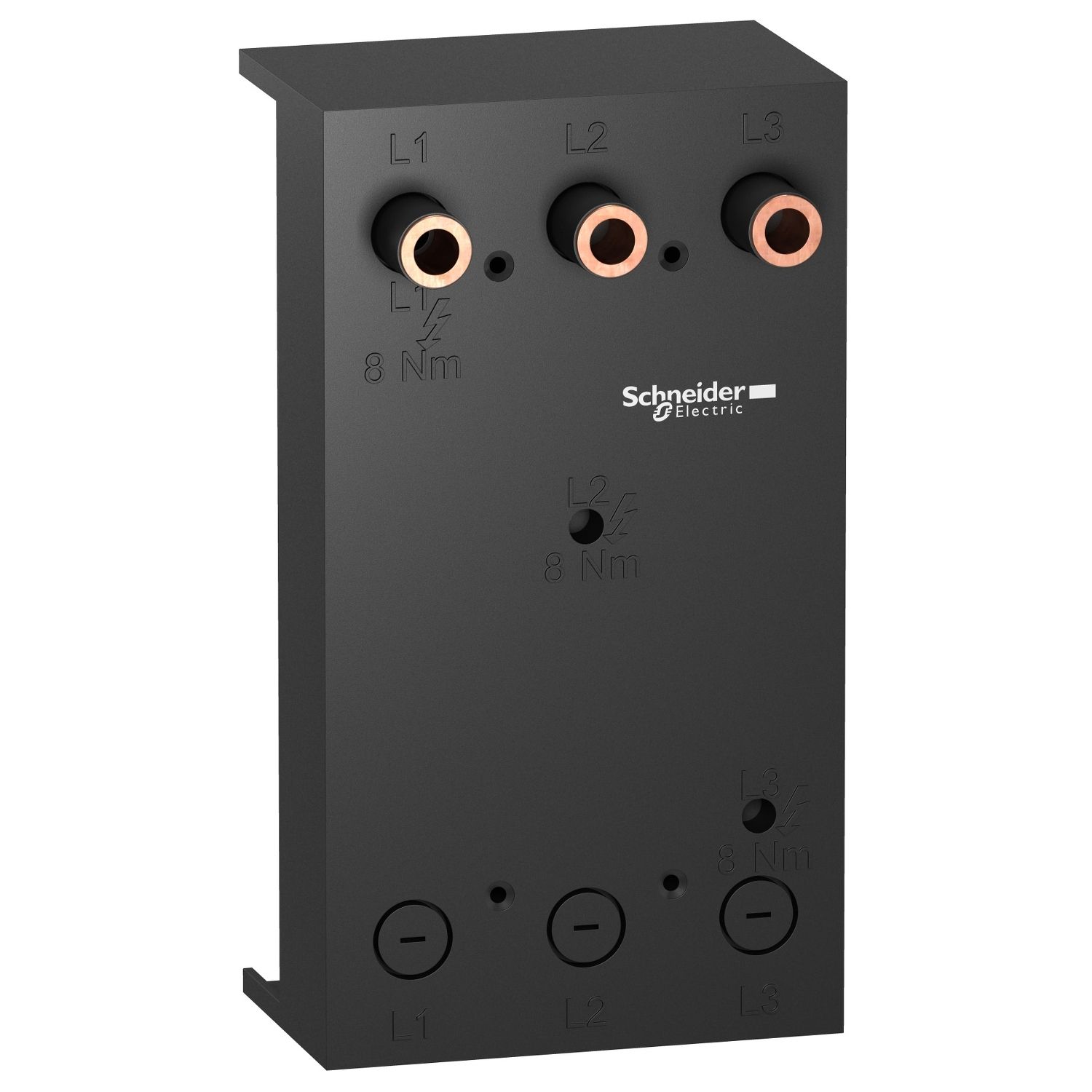

Mounting plate, Linergy BZ, Plate GV5/NSX 100-250 3P 106x192 IEC/UL for 60 Busbar Interaxis

$184.99 INC GST
Available for Shipping : 29-Jan-2025
Mounting plate, Linergy BZ, Plate GV5/NSX 100-250 3P 106x192 IEC/UL for 60 Busbar Interaxis
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
User guide
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
The NSX mounting plate system for busbar simplifies the installation of NSX 100-250 circuit breaker. Power distribution is performed by a busbar. The mounting plate is fitted directly on the busbar, by snap-on-mounting. thus implementing mechanical and electrical connection. The busbar interaxis is 60 mm. This system offers numerous benefits as space saving in cabinets and easy connection. This system also offer fast, safe and reliable electrical and mechanical connection. This system also offer IP20 protection by using busbars and end covers. This system also offer easier maintenance and equipment flexibility and modularity.

Products specifications

Attribute name Attribute value
Main
Device short name LA9Z
Number of ways 1 way
Range Linergy
Product name BZ
Product or component type adaptors for busbar systems
Range of product TeSys, PowerPact multistandard
Complementary
Product compatibility NSX100...250, PowerPact NJ, GV7
Depth 63 mm
Range compatibility ComPact, TeSys, Spacial, Prisma PH, Prisma P, Prisma G
Width 104 mm
Colour anthracite grey
Poles description 3P
[Ui] rated insulation voltage 690 V
Permissible current 250 A - busbar cross section: 30 x 10 mm, 250 A - busbar cross section: 20 x 10 mm, 250 A - busbar cross section: 12 x 10 mm, 250 A - busbar cross section: 30 x 5 mm, 250 A - busbar cross section: 25 x 5 mm, 250 A - busbar cross section: 20 x 5 mm, 250 A - busbar cross section: 15 x 5 mm, 200 A - busbar cross section: 12 x 5 mm
Height 190 mm
Busbar pitch 60 mm
Environment
IP degree of protection IP20 conforming to IEC 60529
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.200 cm
Package 1 Width 11.300 cm
Package 1 Length 20.800 cm
Package 1 Weight 876.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 11.358 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 55.556 kg
