SKU:

LV429390

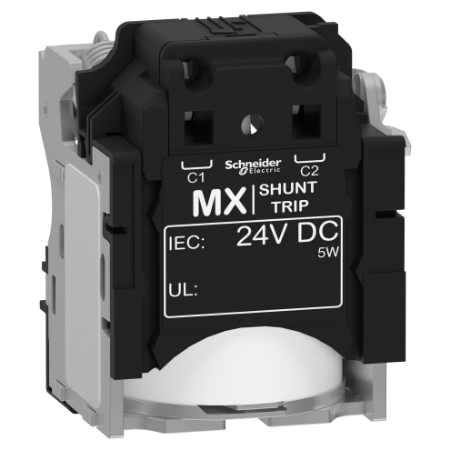

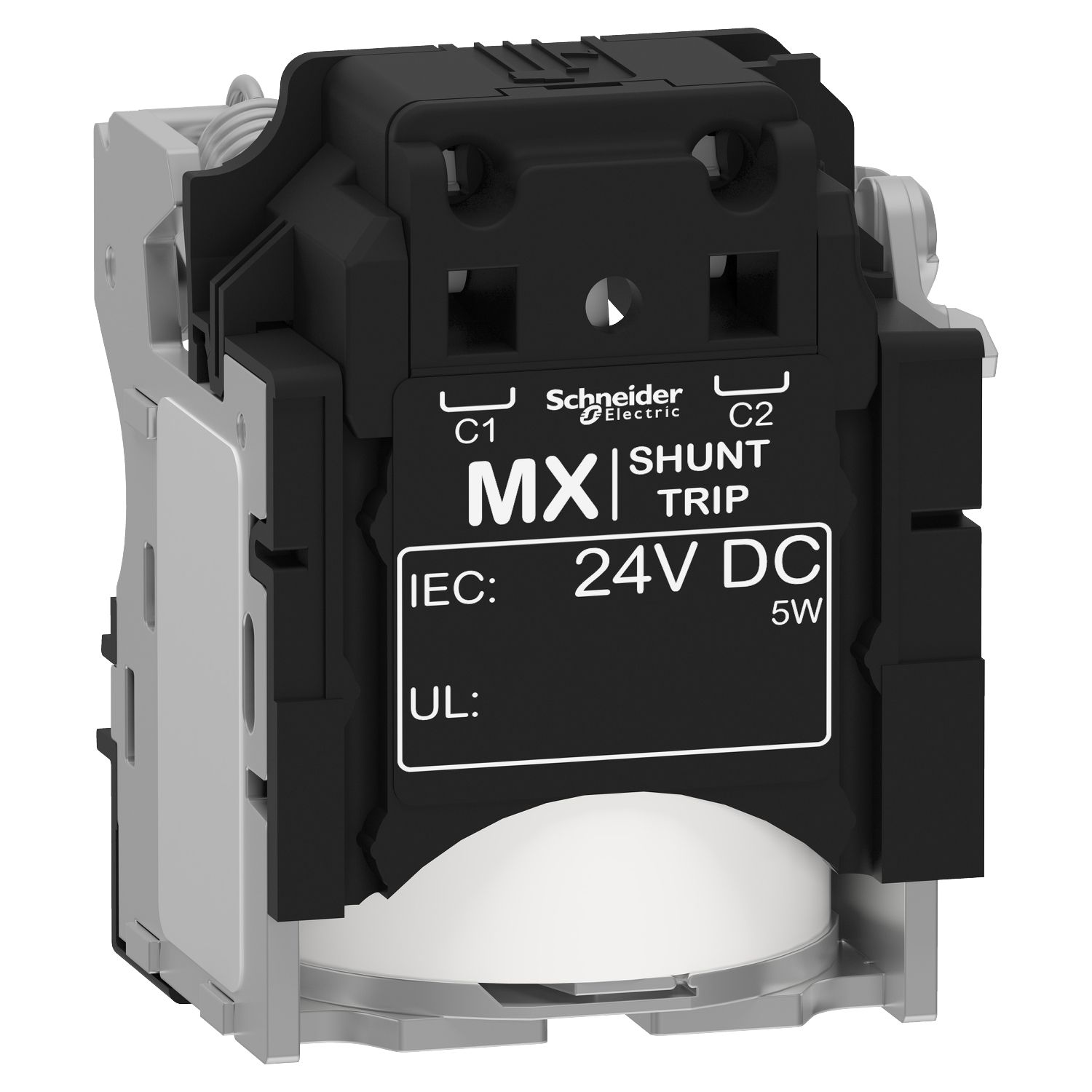

Shunt trip release MX, ComPacT NSX, 24VDC, screwless spring terminal connections

$355.15

Qty:

Available for Shipping : 24-Nov-2024

Product Selector

Shunt trip release MX, ComPacT NSX, 24VDC, screwless spring terminal connections

Schneider Electric green signature style for the entire ComPacT range

Estimated 40% reduction of wiring time for panel builders

Experience easier installation thanks to a new ergonomic front-plate design

Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating

Ergonomic new toggle for easier breaker manual operation

Be the first to review this product

Manufacturer: Schneider Electric

Instruction sheet

Catalogue

Declaration of conformity

User guide

Product environmental

Product Page Link

Product Data Sheet

This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 24 VDC. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. This shunt trip is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.

Products specifications

Attribute name	Attribute value
Main
Device application	control
Voltage release type	shunt trip release, opening coil
Range compatibility	PowerPact PowerPact Multistandard, EasyPact EasyPact CVS, ComPact ComPact NSX DC, ComPact ComPact NSX, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX new generation
Device short name	MX
Range	ComPacT
Range of product	ComPacT NSX400...630 DC PV new generation, ComPact NSX400...630 DC PV, ComPacT NSX400...630 DC new generation, ComPact NSX400...630 DC, ComPacT NSX100...250 DC PV new generation, ComPact NSX100...250 DC PV, ComPacT NSX100...250 DC new generation, ComPact NSX100...250 DC, ComPacT NSX400...630 new generation, ComPact NSX400...630, ComPacT NSX100...250 new generation, ComPact NSX100...250
Product or component type	voltage release
[Uc] control circuit voltage	24 V DC
Complementary
Control signal type	maintained, impulse
Threshold tripping voltage	0.7...1.1 x Un opening
Impulse duration	>= 20 ms
Wire stripping length	7 mm
Supply inrush power	10 W
Auxiliary connection terminal	spring 0.5-1.5 mm² (AWG 20...AWG 16)
Response time	50 ms
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.500 cm
Package 1 Width	4.700 cm
Package 1 Length	6.300 cm
Package 1 Weight	116.000 g
Unit Type of Package 2	2
Number of Units in Package 2	10
Package 2 Height	7.300 cm
Package 2 Width	10.800 cm
Package 2 Length	24.800 cm
Package 2 Weight	1.208 kg
Unit Type of Package 3	3
Number of Units in Package 3	60
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	7.628 kg
