LV429434

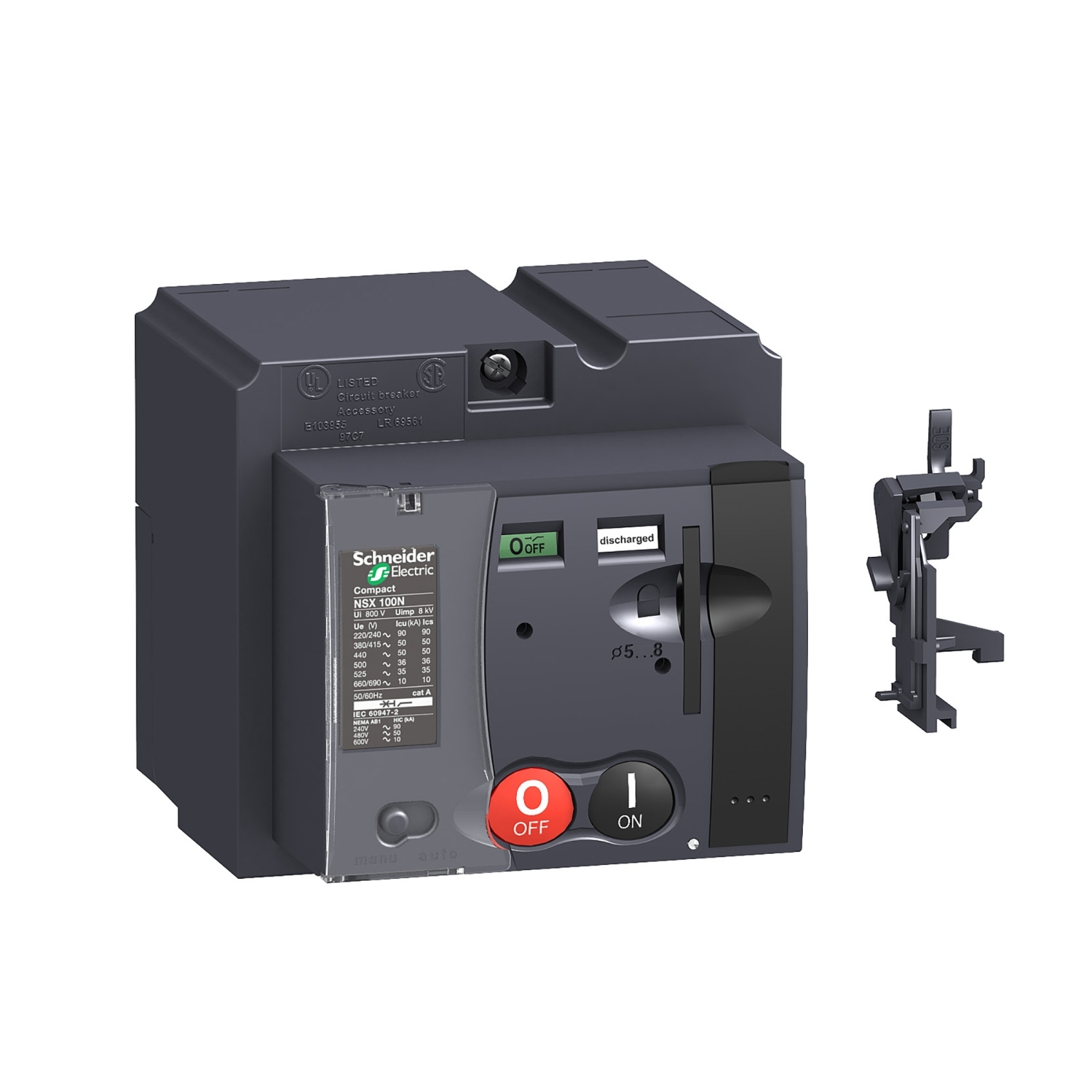

Standard motor mechanism module MT100/160, ComPacT NSX100/160, 220/240VAC 50/60Hz, 208/277VAC 60Hz

$907.48 INC GST

Qty:

Available for Shipping : 23-Jan-2025

Standard motor mechanism module MT100/160, ComPacT NSX100/160, 220/240VAC 50/60Hz, 208/277VAC 60Hz

Schneider Electric green signature style for the entire ComPacT range

Estimated 40% reduction of wiring time for panel builders

Experience easier installation thanks to a new ergonomic front-plate design

Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating

Ergonomic new toggle for easier breaker manual operation

Be the first to review this product

Manufacturer: Schneider Electric

End of life manual

Instruction sheet

User guide

Product environmental

Catalogue

Product Page Link

Product Data Sheet

This is a standard motor mechanism for Compact NSX 100/160 and PowerPact Multistandard H frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 220VAC to 240VAC 50/60Hz or 208VAC to 277VAC 60Hz. The consumption is less than 500VA. Padlocking of the device remains possible. The motor mechanism is supplied with SDE adapter.

Products specifications

Attribute name	Attribute value
Main
Device short name	MT250
Device application	automatic spring charging
Mounting mode	fixed
Control type	standard
Range	ComPacT
Range of product	ComPact NSX100...250 DC, ComPact NSX100...250, ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation
[In] rated current	100 A, 160 A
Product or component type	motor mechanism
Range compatibility	ComPact ComPacT NSX DC new generation NSX160 DC, ComPact ComPacT NSX DC new generation NSX100 DC, ComPacT new generation ComPacT NSX160 new generation, ComPacT new generation ComPacT NSX100 new generation
[Uc] control circuit voltage	220...240 V AC 50/60 Hz, 208...277 V AC 60 Hz
Complementary
Provided equipment	SDE adaptor
Control signal type	maintained, impulse
Locking options description	1 to 3 padlocks Ø 5 to Ø 8, padlocking in OFF position
Maximum power consumption in VA	500 VA opening, 500 VA closing
Maximum operating frequency	4 per minute
Response time	< 80 ms closed, < 700 ms open
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	11.7 cm
Package 1 Width	10.5 cm
Package 1 Length	17.0 cm
Package 1 Weight	1.39 kg
Unit Type of Package 2	2
Number of Units in Package 2	15
Package 2 Height	30.0 cm
Package 2 Width	40.0 cm
Package 2 Length	60.0 cm
Package 2 Weight	21.526 kg
