Wireless indication auxiliary contact, ComPacT NSX and ComPacT NS, circuit breaker status OF/SD/SDE

Please Contact Sales to buy this Product. click here
Wireless indication auxiliary contact, ComPacT NSX and ComPacT NS, circuit breaker status OF/SD/SDE
  • Plug & play technology for clear connection status (0 or 1, no half-way wired)
  • Placed in the same position as the wired version
  • Its LED light will give you direct indication in case of a tripping
  • It will send you an immediate notification via EcoStruxure Facility Expert
  • Wireless auxiliary contact accelerates overall wiring time
  • Status communication is done very simply and commissioned wirelessly
  • Communication architecture is fully EcoStruxure Power validated, with any application
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Instruction sheet
Product environmental
User guide
Brochure
Catalogue
End of life manual
Product Page Link
Product Data Sheet

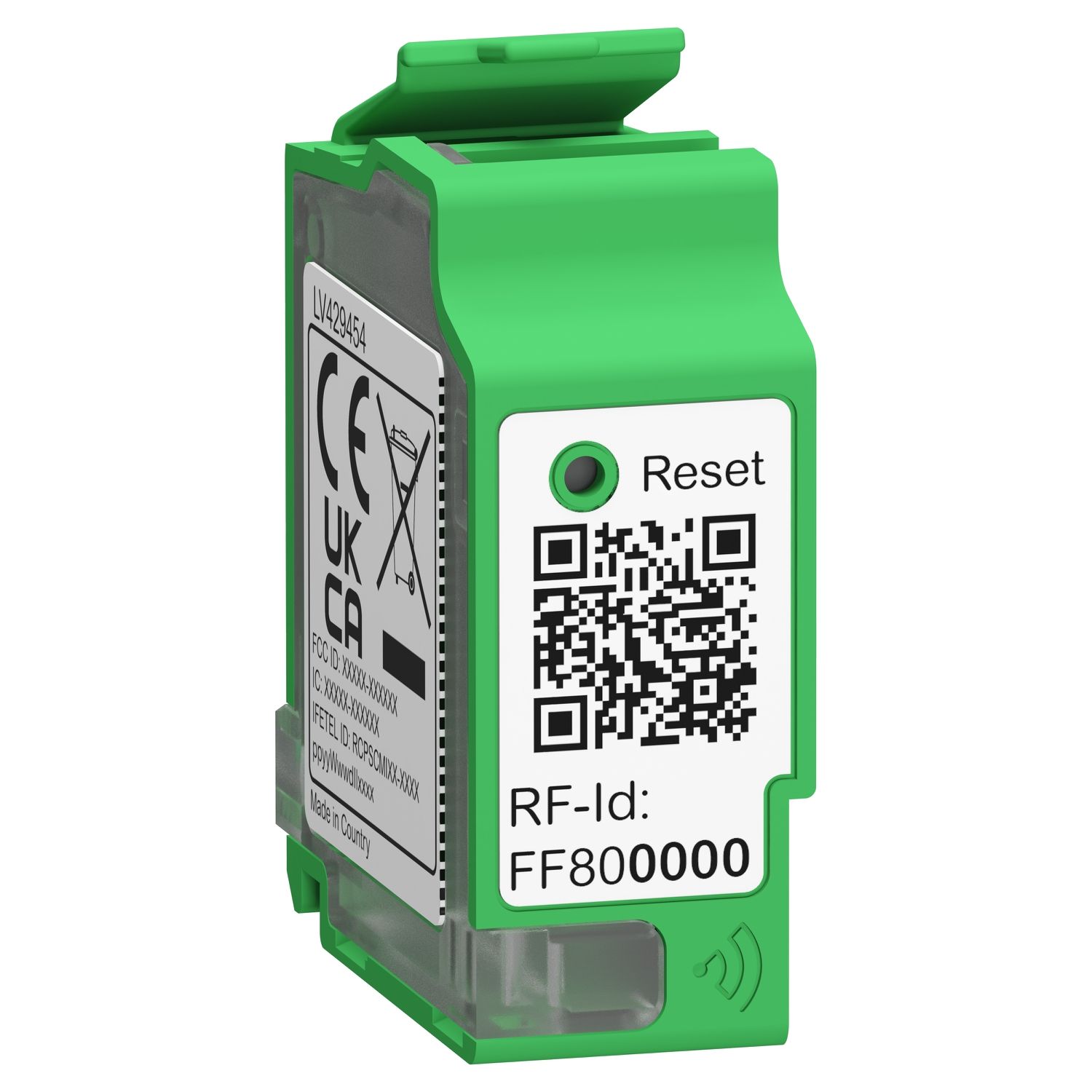

This is a wireless auxiliary contact that provides remote indications of the circuit breaker status. It is used on ComPacT NSX 100 to 630 and ComPacT NS 630 to 3200 new generations. This wireless auxiliary contact provides OF information (ON/OFF), that indicates the position of the circuit breaker power contacts. It provides SD information (trip indication), that indicates that the circuit breaker as tripped due to an electrical fault, operation of a voltage release or push to trip button. It provides SDE information (fault trip indication), that indicates that the circuit breaker as tripped due to an electrical fault (overload, short-circuit, ground fault, earth fault). This wireless auxiliary contact works with Zigbee wireless communication protocol (IEEE 802.15.4) within the frequency range 2405-2480MHz . It is a plug & play technology for clear connection status. This wireless auxiliary contact is placed in the same position as the wired version. A LED light is integrated and gives an indication in case of tripping. Communication architecture is fully EcoStruxure Power validated, with any application.

Products specifications

Attribute nameAttribute value
Main
Device short nameSDE, SD, OF
Device applicationbreaker status monitoring
Connectivity to devicesZigBee device
RangeComPacT new generation
Fault typegeneral electric fault
Range of productComPacT NS1600b...3200 new generation, ComPacT NS630b...1600 new generation, ComPacT NSX400...630 DC PV new generation, ComPacT NSX100...250 DC PV new generation, ComPacT NSX400...630 DC new generation, ComPacT NSX100...250 DC new generation, ComPacT NSX400...630 new generation, ComPacT NSX100...250 new generation
Communication network typeZigBee IEEE 802.15.4 (2405-2480 MHz)
Local signallingfault trip for electrical fault, trip indicator for relay trip indicator, ON/OFF indication for open/close
Product or component typewireless indication auxiliary
Range compatibilityComPacT new generation ComPacT NS new generation, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX new generation
Complementary
[Uimp] rated impulse withstand voltage8 kV
Body materialplastic
Mechanical durability50000 cycles
Mounting modeclip-on
Battery life10-10 year(s)
Power supply typebattery
Status LEDwith
StandardsUL 489, EN/IEC 60947
Environment
Relative humidity95-95 % at 55-55 °C
Ambient air temperature for storage-25-85 °C
IP degree of protectionIP4X conforming to IEC 60529
Ambient air temperature for operation-25-70 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4 cm
Package 1 Width6 cm
Package 1 Length8 cm
Package 1 Weight36 g
Unit Type of Package 22
Number of Units in Package 262
Package 2 Height15 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight2.652 kg
