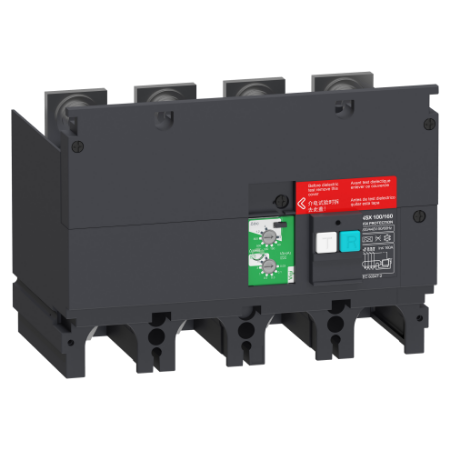

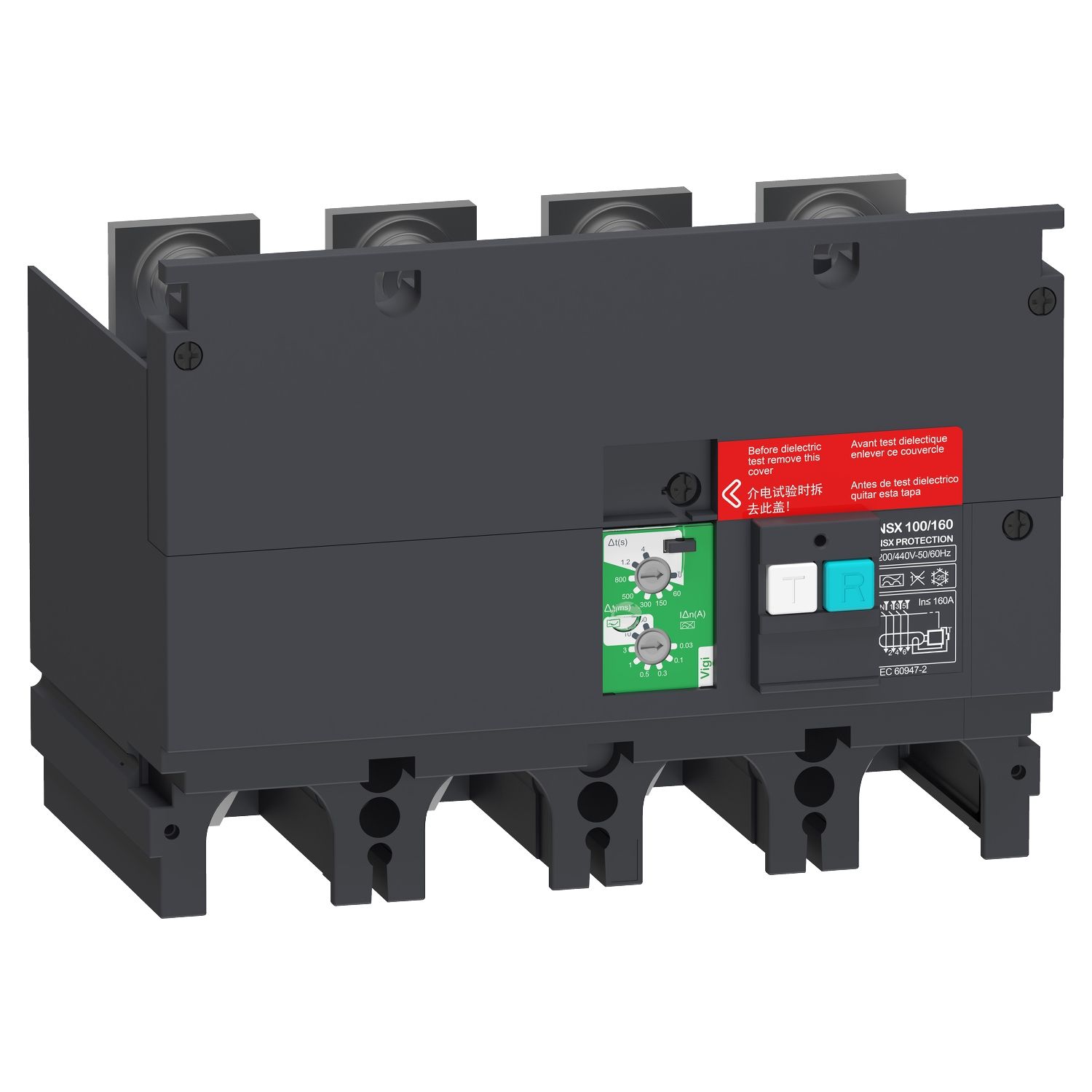

Picture of Earth-leakage add-on protection module VigiPacT, ComPacT NSX 100/160, 200VAC to 440VAC, 30mA to 30A, 4 poles
SKU:

LV429489

Earth-leakage add-on protection module VigiPacT, ComPacT NSX 100/160, 200VAC to 440VAC, 30mA to 30A, 4 poles

Old price: $3,038.20 INC GST
$2,485.25 INC GST
Available for Shipping : 08-Dec-2025
Earth-leakage add-on protection module VigiPacT, ComPacT NSX 100/160, 200VAC to 440VAC, 30mA to 30A, 4 poles
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Circularity Profile
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This is a Vigi add-on module for ComPact NSX 100/160 that provides an earth-leakage protection. It is used for 4 poles circuit breakers. The operational rated voltage is between 200 and 440 VAC 50/60 Hz. The earth-leakage sensitivity is adjustable from 30 mA to 30 A. It is installed directly on the device terminals and directly actuates the trip unit in case of earth-leakage default. This Vigi add-on module is self-powered internally by the distribution-system voltage, even is supplied by only 2 phases. It is compliant with IEC 60947-2 standard, annex B.

Products specifications

Attribute name Attribute value
Main
Device short name VigiPacT
Device application wiring
Earth-leakage protection class class AC, class A
Range of product ComPact NSX100...250, ComPacT NSX100...250 new generation
Residual earth-leakage time delay adjustment type adjustable
Poles description 4P
Residual earth-leakage sensitity adjustment type adjustable
[Δt] residual earth-leakage time delay adjustment 4-4 s, 1.2-1.2 s, 800-800 ms, 500-500 ms, 300-300 ms, 150-150 ms, 60-60 ms, 0-0 ms
Product or component type Vigi add-on
Earth-leakage sensitivity 30 A for class AC, 10 A for class AC, 3 A for class A, 1 A for class A, 0.5 A for class A, 0.3 A for class A, 0.1 A for class A, 0.03 A for class A
Range compatibility ComPact ComPact NSX160 circuit breaker, ComPact ComPact NSX100 circuit breaker, ComPacT new generation ComPacT NSX160 new generation circuit breaker, ComPacT new generation ComPacT NSX100 new generation circuit breaker
[In] rated current 160 A, 100 A
Complementary
Earth-leakage protection with
Overvoltage category IV
Maximum breaking time 800 ms
Network type AC
[Ue] rated operational voltage 200...440 V AC 50/60 Hz conforming to IEC 60947-2
Network frequency 50/60 Hz
Environment
Electrical shock protection class class II
Standards IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.400 cm
Package 1 Width 14.500 cm
Package 1 Length 17.200 cm
Package 1 Weight 1.299 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 16.289 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 42.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 76.357 kg
