SKU:

LV429517

ComPacT, Long terminal shield, ComPacT NSX100/160/250, pitch 35mm, IP40, 3 poles

$55.74

Qty:

Available for Shipping : 02-Dec-2024

Product Selector

ComPacT, Long terminal shield, ComPacT NSX100/160/250, pitch 35mm, IP40, 3 poles

Schneider Electric green signature style for the entire ComPacT range

Estimated 40% reduction of wiring time for panel builders

Experience easier installation thanks to a new ergonomic front-plate design

Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating

Ergonomic new toggle for easier breaker manual operation

Meet your needs with flexibility to achieve system efficiency during the design phase

ETA trip unit offers protect overload& short-circuit conditions, measurements, display and current maximeters

Samrt& Reliable: digital LCD screen can be set and display important currents parameters for protection

Multiple international standards certificated

Green Premium with recognized environmental claims

Be the first to review this product

Manufacturer: Schneider Electric

User guide

Instruction sheet

Catalogue

Product Page Link

Product Data Sheet

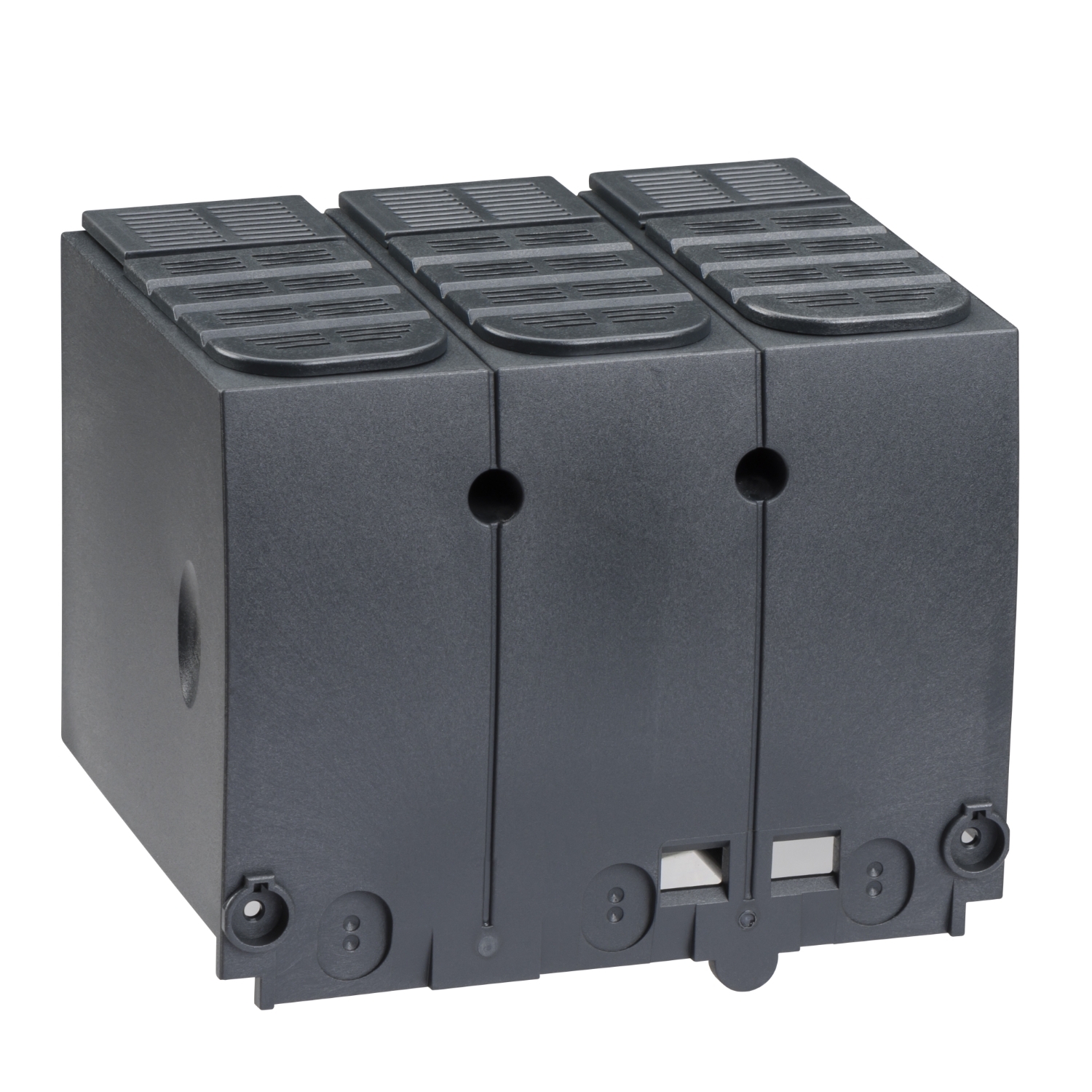

This is an insulation accessory for 3 poles Compact NSX 100/160/250 or EasyPact CVS 100/160/250. This long terminal shield protects against direct contact with power circuit It is used for front connection with cables or insulated bars. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 35mm. It provides IP40 degree of protection and IK07 mechanical impact protection.

Products specifications

Attribute name	Attribute value
Main
Accessory / separate part type	insulation accessories
Quantity per set	1
Poles description	3P
Range	ComPacT
Product or component type	long terminal shield
Range compatibility	EasyPact EasyPact CVS250, EasyPact EasyPact CVS160, EasyPact EasyPact CVS100, ComPact Compact NSX250 DC, ComPact Compact NSX160 DC, ComPact Compact NSX100 DC, ComPacT new generation ComPacT NSX DC new generation NSX250 DC, ComPacT new generation ComPacT NSX DC new generation NSX160 DC, ComPacT new generation ComPacT NSX DC new generation NSX100 DC, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100, ComPacT new generation ComPacT NSX250 new generation, ComPacT new generation ComPacT NSX160 new generation, ComPacT new generation ComPacT NSX100 new generation
Range of product	ComPact NSX100...250 DC, ComPact NSX100...250, ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation
Complementary
Product compatibility	plug-in base, circuit-breaker
Compatibility code	terminal shields
IP degree of protection	IP40 conforming to IEC 60529
Connection pitch	35 mm
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.000 cm
Package 1 Width	9.000 cm
Package 1 Length	13.000 cm
Package 1 Weight	149.000 g
Unit Type of Package 2	2
Number of Units in Package 2	56
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	9.278 kg
Unit Type of Package 3	3
Number of Units in Package 3	224
Package 3 Height	45.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	48.888 kg
