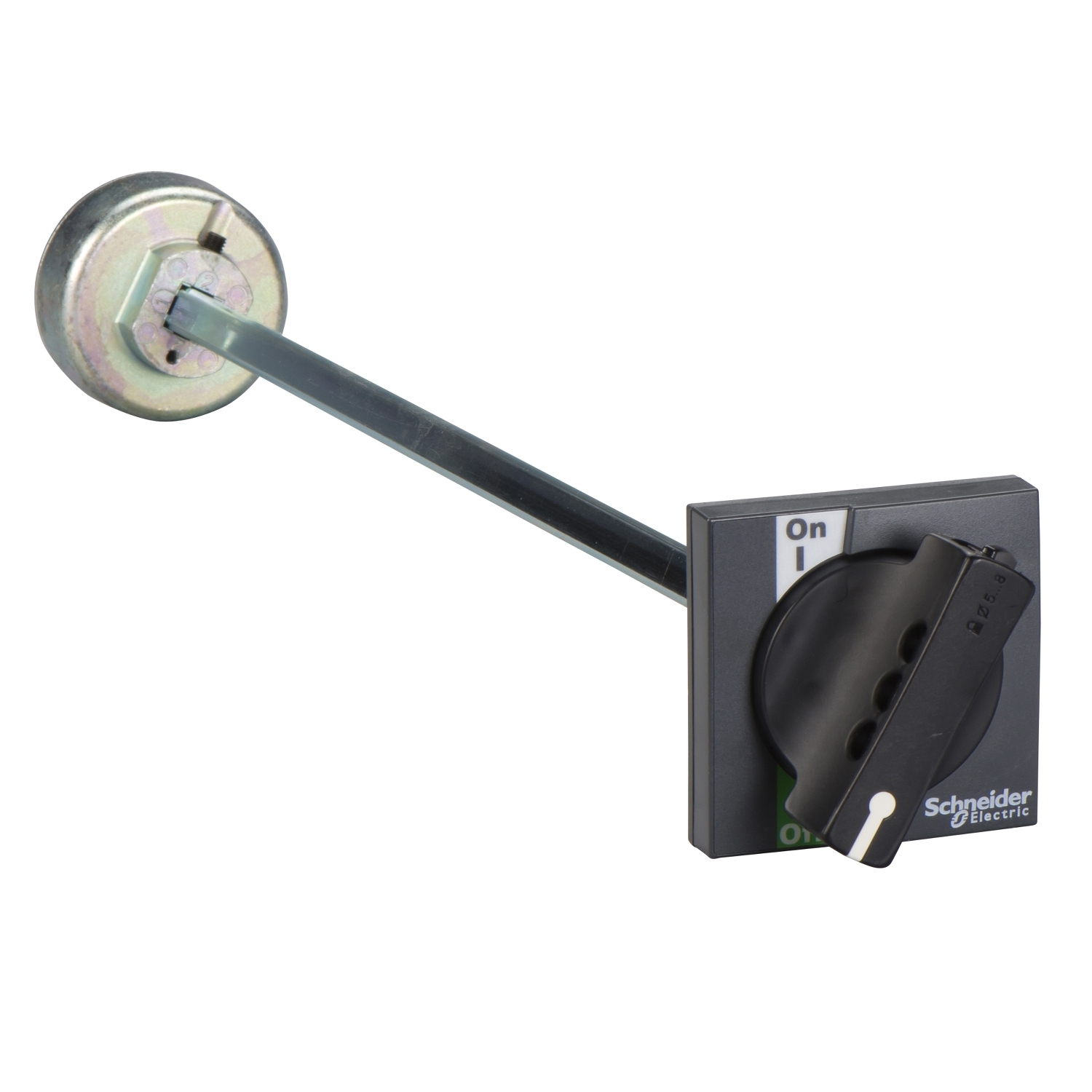

Picture of extended rotary handle, Compact INS/INV 250, IP55, IK07, black handle, front control
SKU:

LV431050

extended rotary handle, Compact INS/INV 250, IP55, IK07, black handle, front control

$314.35 INC GST
Available for Shipping : 08-May-2025
extended rotary handle, Compact INS/INV 250, IP55, IK07, black handle, front control
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Instruction sheet
Product environmental
Catalogue
Product Page Link
Product Data Sheet
It is an extended black rotary handle for Compact INS250_100 to 250 and Compact INV100 to 250 switch disconnectors. It is suitable for isolation and it is used for standard applications. This rotary handle is a front control accessory. This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front. The degrees of protection are IP55 and IK08. It may be locked in the OFF position by one to three padlocks, hasp diameter 5 to 8 mm (not supplied).

Products specifications

Attribute name Attribute value
Main
Device short name rotary handle
Accessory / separate part type control accessories
Product or component type rotary handle
Handle colour black
Range of product INS250, INV100...250
Rotary handle mounting style extended
Complementary
Rotary handle mounting location front
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.000 cm
Package 1 Width 10.000 cm
Package 1 Length 48.400 cm
Package 1 Weight 882.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 6.291 kg
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 105.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 68.400 kg
